Product Details

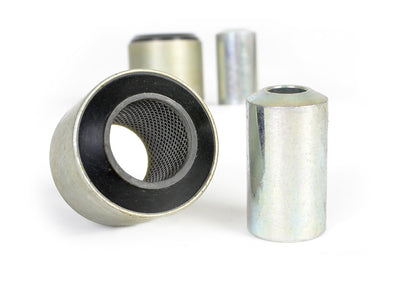

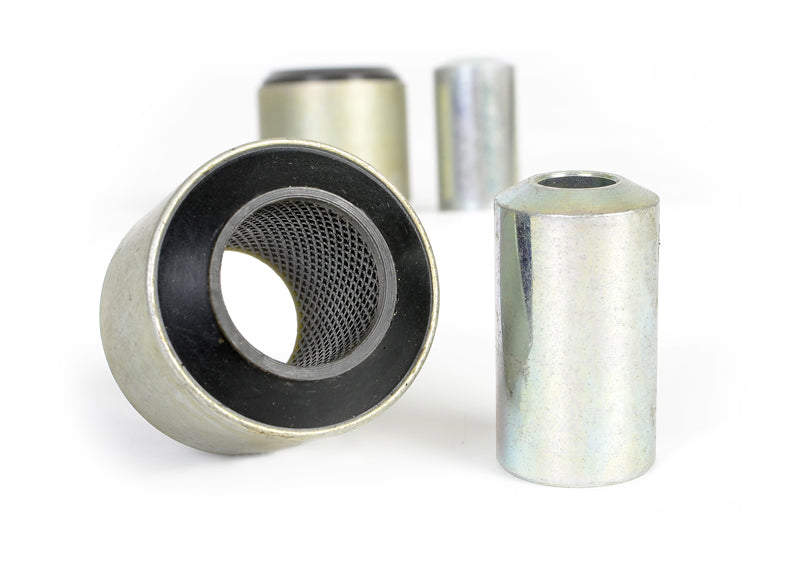

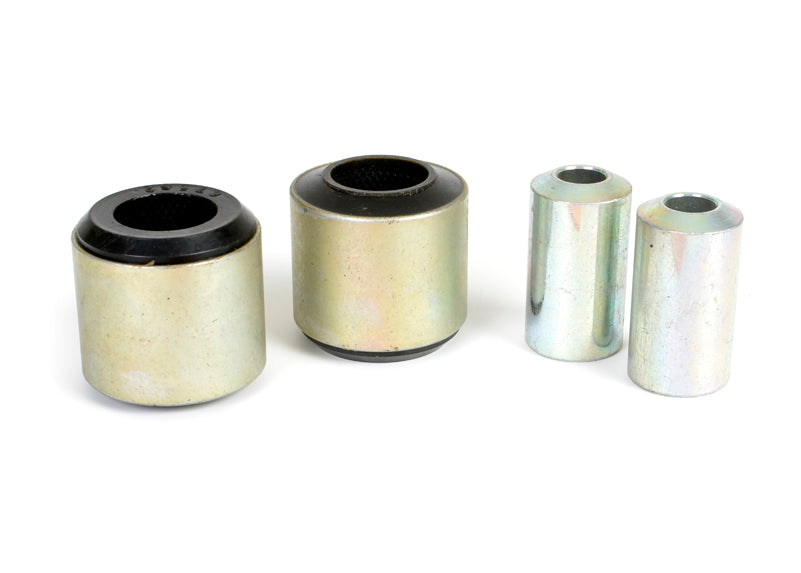

This Whiteline Rear Control Arm Upper Rear Outer Bushing fits the 2009-2013 BMW 335i xDrive 3 Series (E90/E92/E93). Position: rear. Order it as part number W63402. In the box: 2 shell bushings and 2 tubes. Whiteline's note for this fit: Fits outer position of OEM arm 33-32-2-406-292.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as moderate and lists about 3 hours. An alignment is required after installation. To go with it on the 335i xDrive 3 Series, see Adjustable Front Sway Bar Link, Rear Subframe Mount Bushing, and Front and Rear Essential Vehicle Kit.

Features

  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Material: Made from polyurethane.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Bonded design: Bonding adds durability in high-load use.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
Part Number W63402
Part Name Control Arm Bushing
Vehicle 2009-2013 BMW 335i xDrive 3 Series
Chassis Code E90/E92/E93
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 45.4 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Fits outer position of OEM arm 33-32-2-406-292

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009BMW335iAWDFits outer position of OEM arm 33-32-2-406-292
2010BMW335iAWDFits outer position of OEM arm 33-32-2-406-292
2011BMW335iAWDFits outer position of OEM arm 33-32-2-406-292
2012BMW335iAWDFits outer position of OEM arm 33-32-2-406-292
2013BMW335iAWDFits outer position of OEM arm 33-32-2-406-292
