Product Details

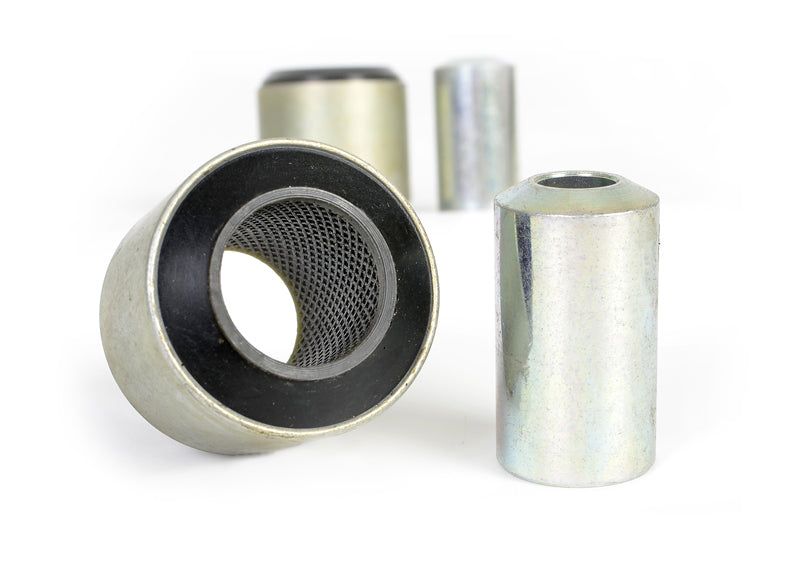

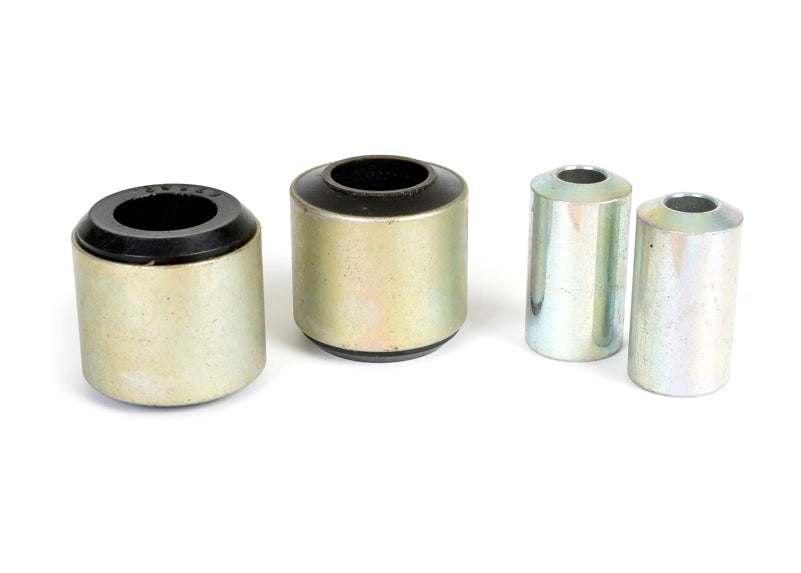

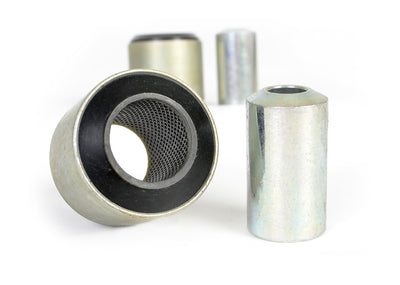

This Whiteline Rear Control Arm Upper Rear Outer Bushing fits the 2006 BMW 330xi 3 Series (E90). Position: rear. Whiteline's note for this fit: Fits outer position of OEM arm 33-32-2-406-292. Chassis code: E90. Included: 2 shell bushings and 2 tubes. Part number W63402.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the 330xi 3 Series, see Rear Subframe Mount Bushing, Rear Differential Mount Bushing, and Front Lower Radius Arm Bushing.

Features

  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Install guide: Written install instructions are included with the part.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Corrosion protection: Plated finish keeps rust off the hardware.
Specifications
Part Number W63402
Part Name Control Arm Bushing
Vehicle 2006 BMW 330xi 3 Series
Chassis Code E90
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 45.4 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Fits outer position of OEM arm 33-32-2-406-292

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006BMW330xiAWDFits outer position of OEM arm 33-32-2-406-292
