Product Details

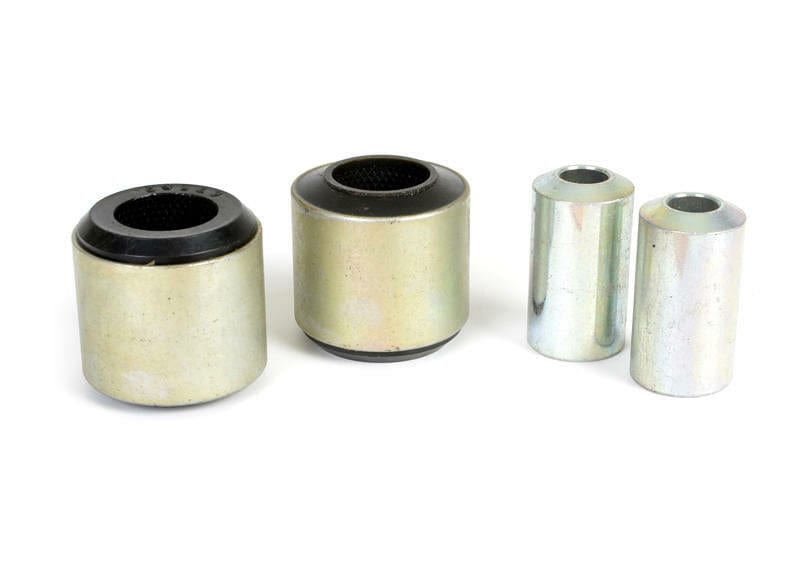

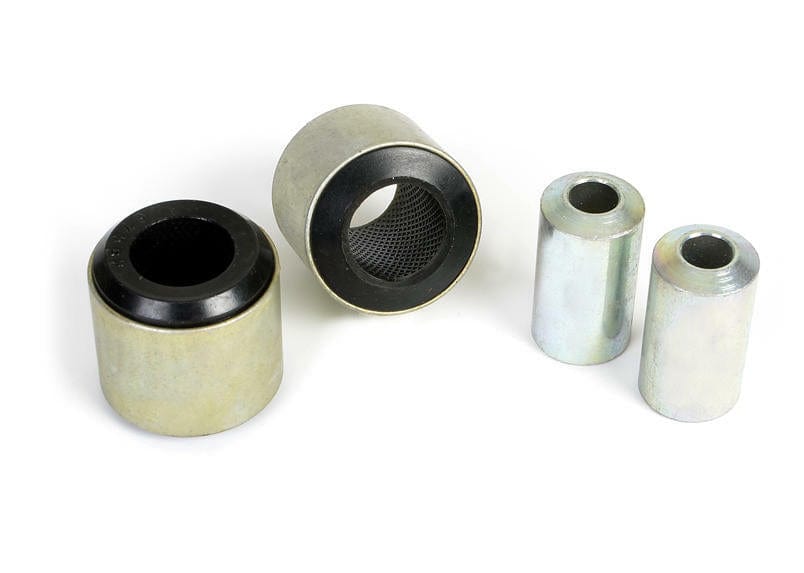

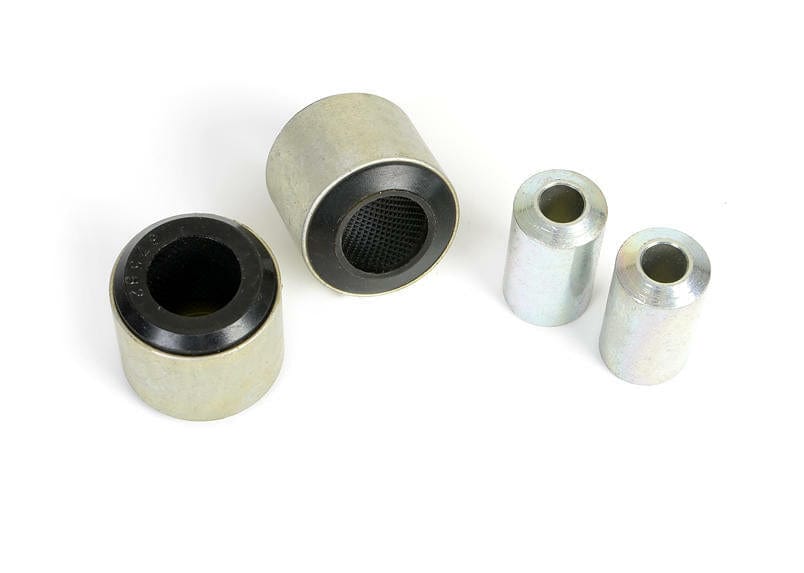

This Whiteline Rear Control Arm Upper Rear Outer Bushing fits the 2013 BMW 135is 1 Series (E82). Position: rear. Whiteline part number: W63402. In the box: 2 shell bushings and 2 tubes. Application note: Fits outer position of OEM arm 33-32-2-406-292.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.
Expect a moderate job of about 3 hours. Plan on a wheel alignment afterward. To go with it on the 135is 1 Series, see Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Essential Vehicle Kit.
Features
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Bonded design: The bushing is bonded for strength where loads are highest.
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Finish: A powder coated finish resists corrosion and wear.
- Material: Polyurethane construction.
Specifications
| Part Number | W63402 |
| Part Name | Control Arm Bushing |
| Vehicle | 2013 BMW 135is 1 Series |
| Drivetrain | RWD |
| Chassis Code | E82 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 45.4 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Fits outer position of OEM arm 33-32-2-406-292 |
