Product Details

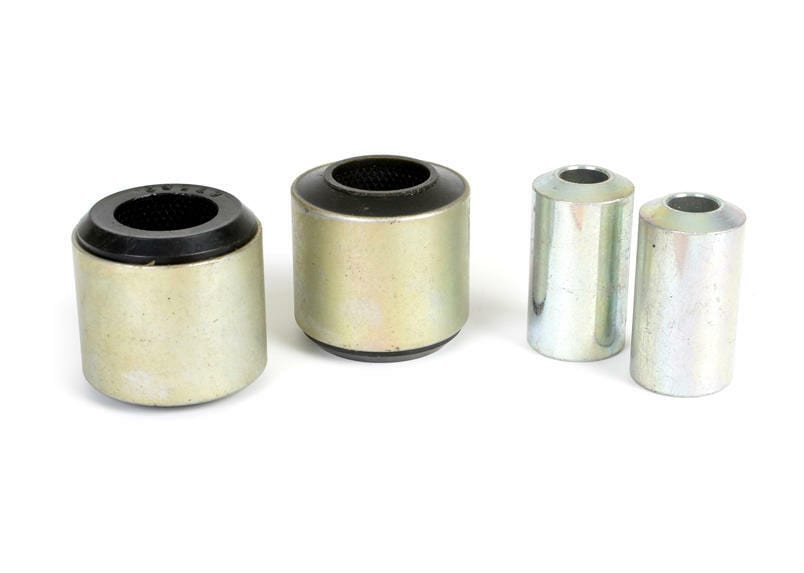

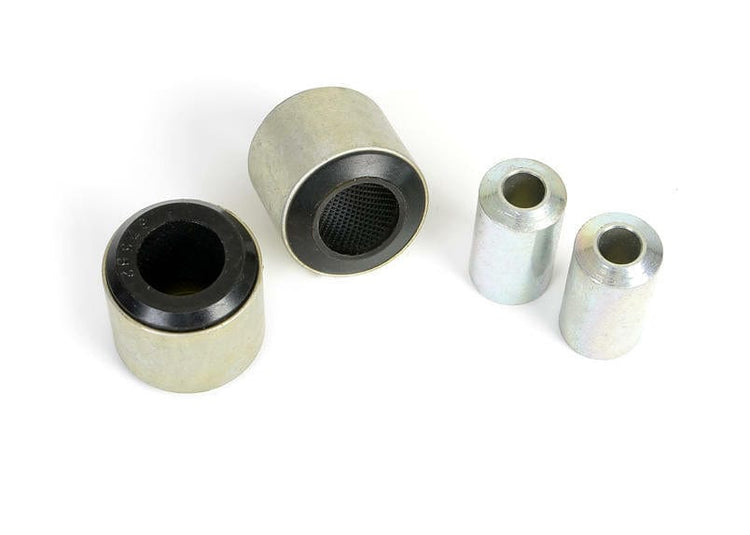

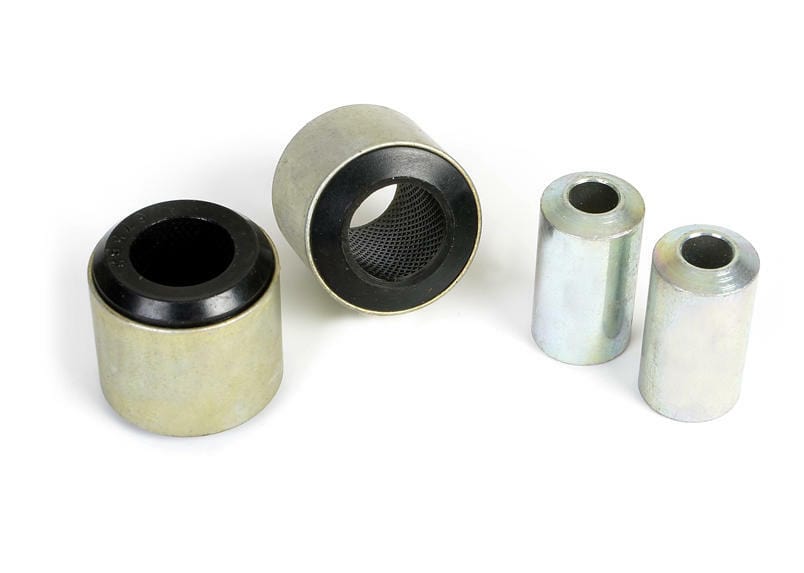

This Whiteline Rear Control Arm Upper Rear Outer Bushing fits the 2007-2008 BMW 328xi 3 Series (E90/E91/E92/E93). This part is for the rear of the vehicle. The kit contains 2 shell bushings and 2 tubes. Part number W63402. Whiteline's note for this fit: Fits outer position of OEM arm 33-32-2-406-292.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as moderate and lists about 3 hours. An alignment is required after installation. We also list Adjustable Front Sway Bar Link, Rear Subframe Mount Bushing, and Rear Differential Mount Bushing for the 328xi 3 Series.

Features

  • Install guide: Step-by-step installation instructions come with it.
  • Material: Polyurethane construction.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Finish: The metal parts are powder coated for durability.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number W63402
Part Name Control Arm Bushing
Vehicle 2007-2008 BMW 328xi 3 Series
Chassis Code E90/E91/E92/E93
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 45.4 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Fits outer position of OEM arm 33-32-2-406-292

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007BMW328xiAWDFits outer position of OEM arm 33-32-2-406-292
2008BMW328xiAWDFits outer position of OEM arm 33-32-2-406-292
