Whiteline Rear Control Arm Upper Rear Bushing for 2013-2018 BMW 320i xDrive 3 Series (F30/F31) W63593

Whiteline

|

SKU: W63593

Whiteline Rear Control Arm Upper Rear Bushing for 2013-2018 BMW 320i xDrive 3 Series (F30/F31)

$71.89

MSRP $79.88 You save $7.99

Ask a question
In stock, ready to ship

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In-Stock: 1 business day
  • Out of Stock: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

Lifetime Manufacturer Warranty

All Whiteline products, except those listed below, are covered by a lifetime warranty against manufacturing defects in material and workmanship, valid for the original vehicle the product was installed on.

Whiteline Ball Joints, Tie Rod Ends, Bearings, Links and Springs are covered for 3 years or 60,000 km (36,000 miles), whichever comes first.

Exclusions
The warranty does not cover:

  • Incorrect installation or misuse.
  • Modification or alteration of parts.
  • Damage due to competition, motorsport, or off-road use.
  • Wear and tear from normal use.
  • Accidental or collision damage.

More Information

Product Details

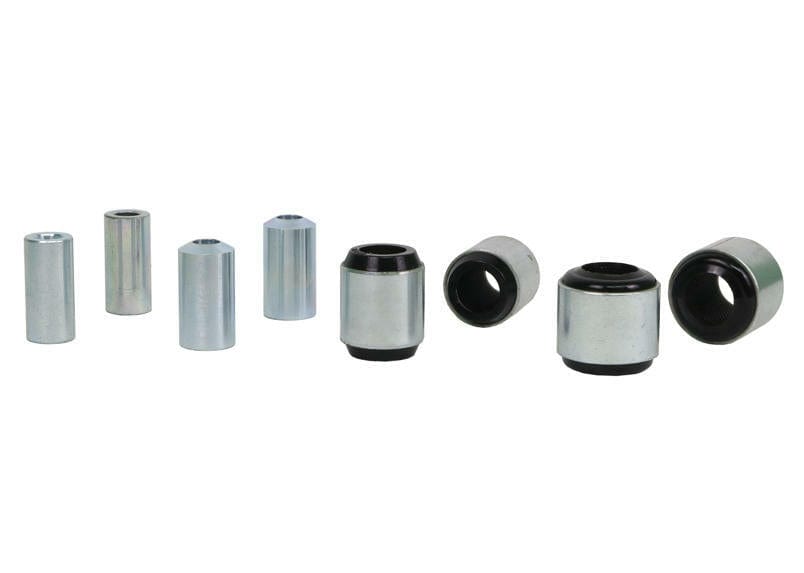

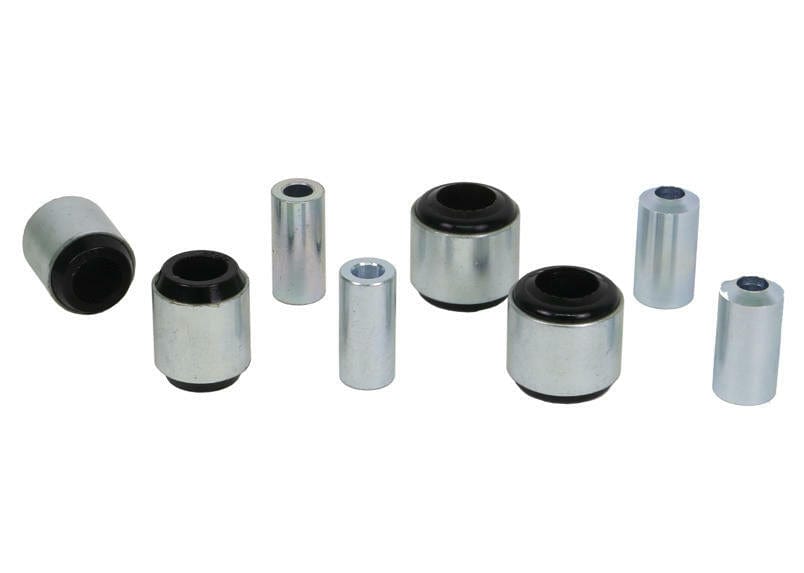

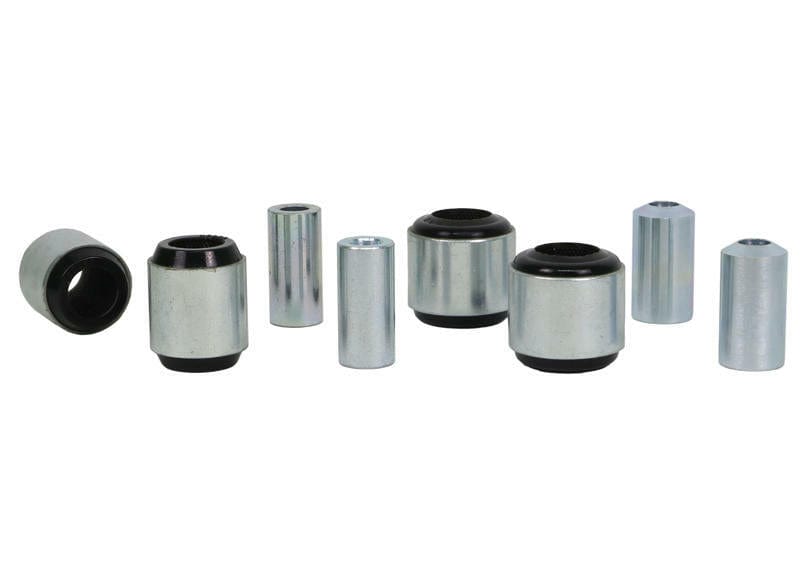

This Whiteline Rear Control Arm Upper Rear Bushing fits the 2013-2018 BMW 320i xDrive 3 Series. It goes on the rear of the vehicle. Application note: Fits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right). The part number is W63593. Included: 4 shell bushings and 4 tubes.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as moderate and lists about 2 hours. An alignment is required after installation. Working on the same car? We also list Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Rear Differential Mount Bushing for the 320i xDrive 3 Series.

Features

  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Install guide: Whiteline packs an install guide with it.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
Part Number W63593
Part Name Control Arm Bushing
Vehicle 2013-2018 BMW 320i xDrive 3 Series
Chassis Code F30/F31
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 38 mm
Bushing 2 Inner Diameter 12.2 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 4 Shell Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Fits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right)

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2013BMW320iAWDFits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right)
2014BMW320iAWDFits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right)
2015BMW320iAWDFits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right)
2016BMW320iAWDFits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right)
2017BMW320iAWDFits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right)
2018BMW320iAWDFits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right)
