Product Details

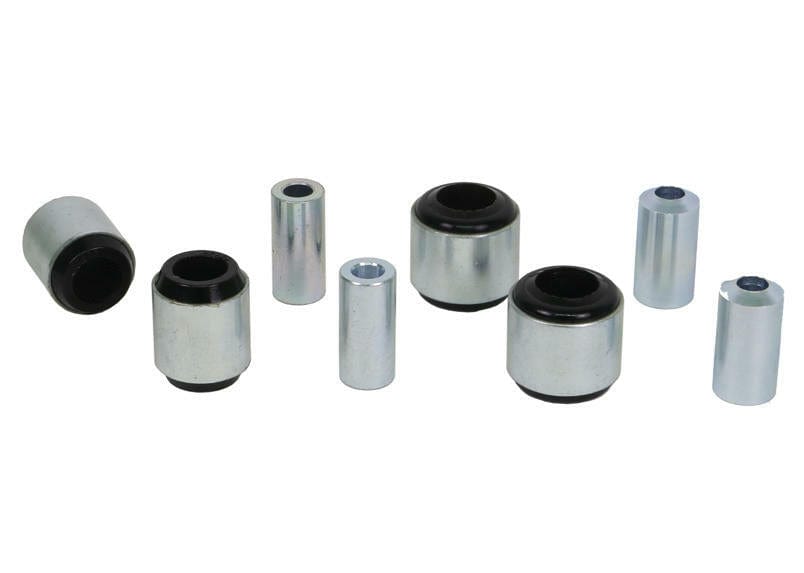

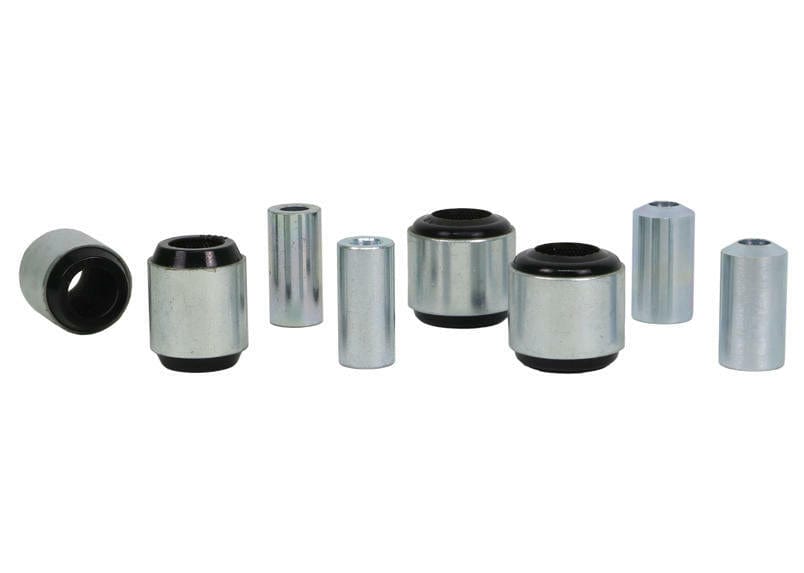

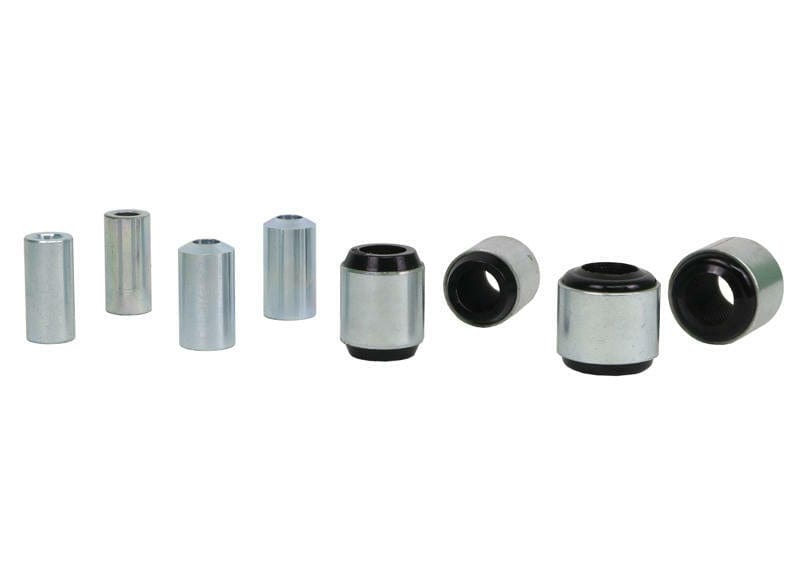

This Whiteline Rear Control Arm Upper Rear Bushing fits the 2012-2013 BMW 335is 3 Series (E92/E93). In the box: 4 shell bushings and 4 tubes. Position: rear. Whiteline's note for this fit: Fits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right). The part number is W63593.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.
Whiteline rates the install as moderate and lists about 2 hours. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Heavy Duty 20mm Rear Sway Bar for the 335is 3 Series.
Features
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Bonded design: The bushing is bonded for extra strength under heavy loads.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Material: Made from polyurethane.
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
Specifications
| Part Number | W63593 |
| Part Name | Control Arm Bushing |
| Vehicle | 2012-2013 BMW 335is 3 Series |
| Chassis Code | E92/E93 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 38 mm |
| Bushing 2 Inner Diameter | 12.2 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Fits OEM Arm 33-32-6-792-543 (Left) and 33-32-6-792-544 (Right) |
