Product Details

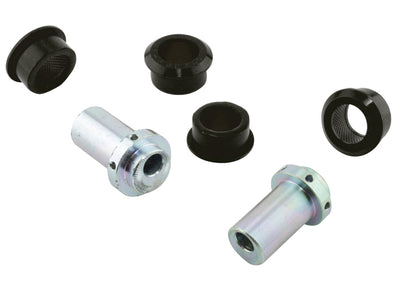

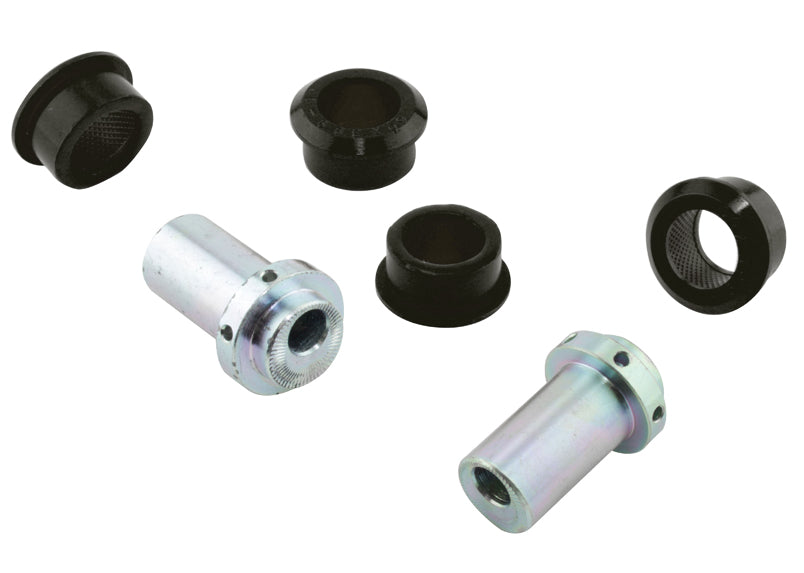

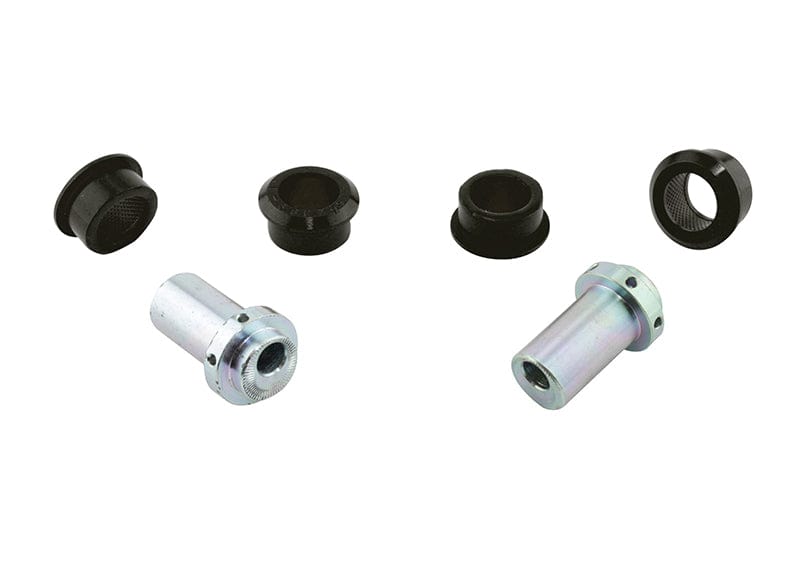

This Whiteline Rear Upper Outer Control Arm Bushing Kit fits the 2001-2004 Subaru Outback L.L. Bean (BE/BH/BP). Order it as part number KCA399. You receive 4 bushings and 2 tubes. Placement: rear. Whiteline's note for this fit: On-Car Adjustable Allows +/- 1.25 degrees.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front Steering Rack And Pinion Mount Bushing for the Outback.

Features

  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Material: The part is made of polyurethane.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Install guide: Whiteline packs an install guide with it.
Specifications
Part Number KCA399
Part Name Control Arm Bushing
Vehicle 2001-2004 Subaru Outback L.L. Bean
Drivetrain AWD
Chassis Code BE/BH/BP
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 34 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Inside Diameter 12 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 34 mm
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes On-Car Adjustable Allows +/- 1.25 Degrees;

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2001SubaruOutbackAWDOn-Car Adjustable Allows +/- 1.25 Degrees;
2002SubaruOutbackAWDOn-Car Adjustable Allows +/- 1.25 Degrees;
2003SubaruOutbackAWDOn-Car Adjustable Allows +/- 1.25 Degrees;
2004SubaruOutbackAWDOn-Car Adjustable Allows +/- 1.25 Degrees;
