Product Details

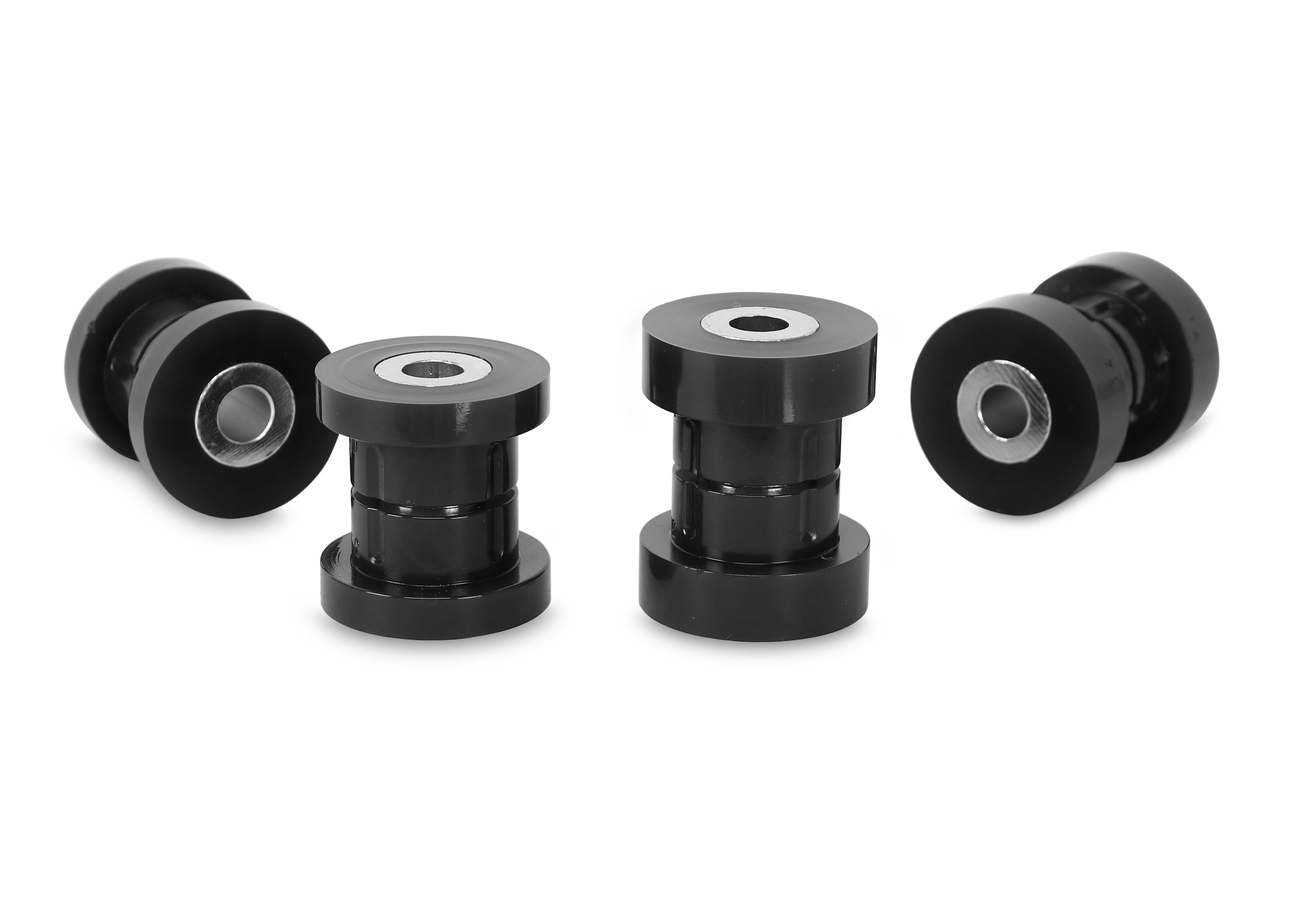

This Whiteline Rear Upper Inner Control Arm Bushing Kit (Standard Repl.) fits the 2009 Subaru Forester XT (SH). Chassis code: SH. Placement: rear. Included: 8 bushings and 4 tubes. Order it as part number W63225.

Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.

Expect a moderate job of about 3 hours. An alignment is required after installation. To go with it on the Forester, see Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and 14mm Adjustable Front Camber Bolts.

Features

  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Material: Polyurethane construction.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Install guide: An install guide comes in the box.
  • Corrosion protection: Plated finish keeps rust off the hardware.
Specifications
Part Number W63225
Part Name Control Arm Bushing
Vehicle 2009 Subaru Forester XT
Chassis Code SH
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 34 mm
Bushing 2 Inner Diameter 12.3 mm
Bushing Quantity 8 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 8 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009SubaruForesterAWD
