Product Details

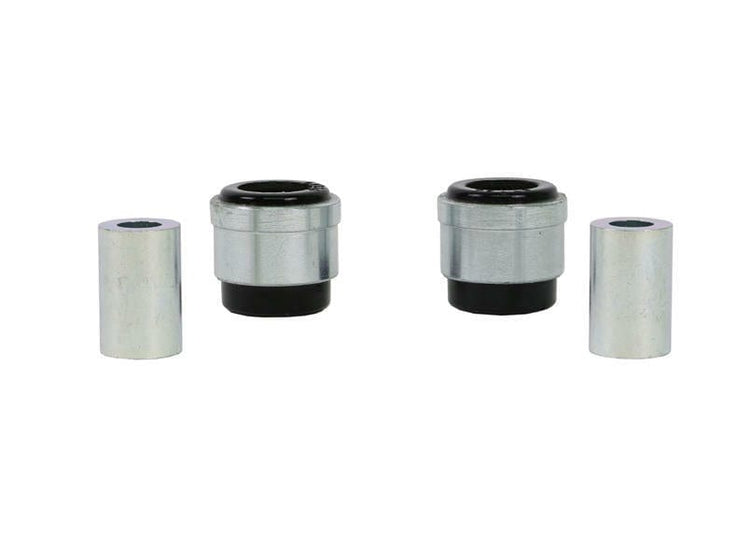

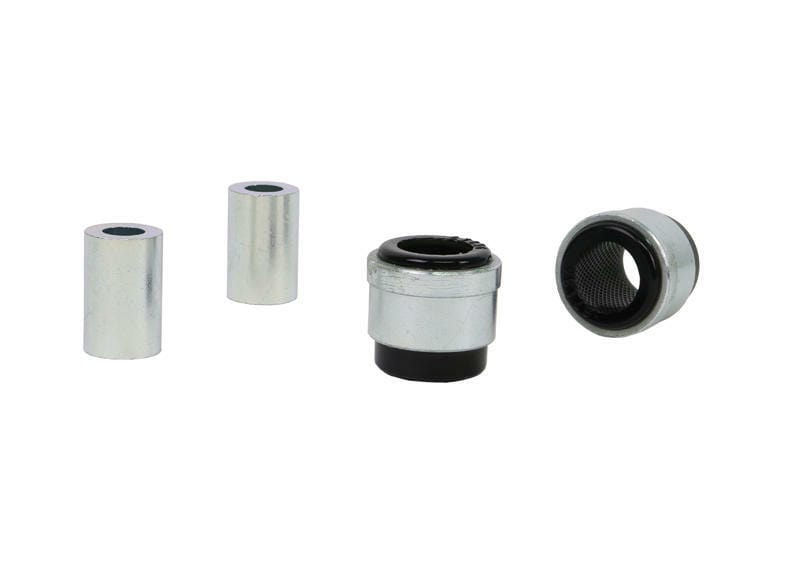

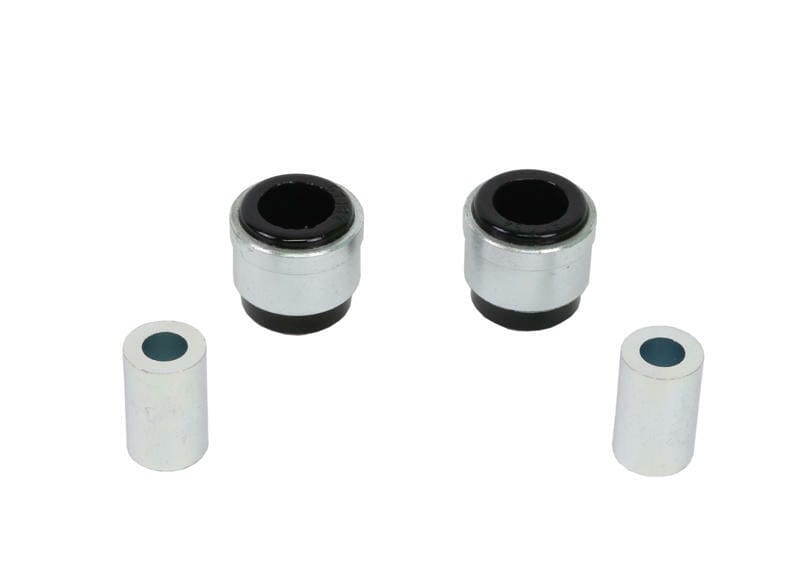

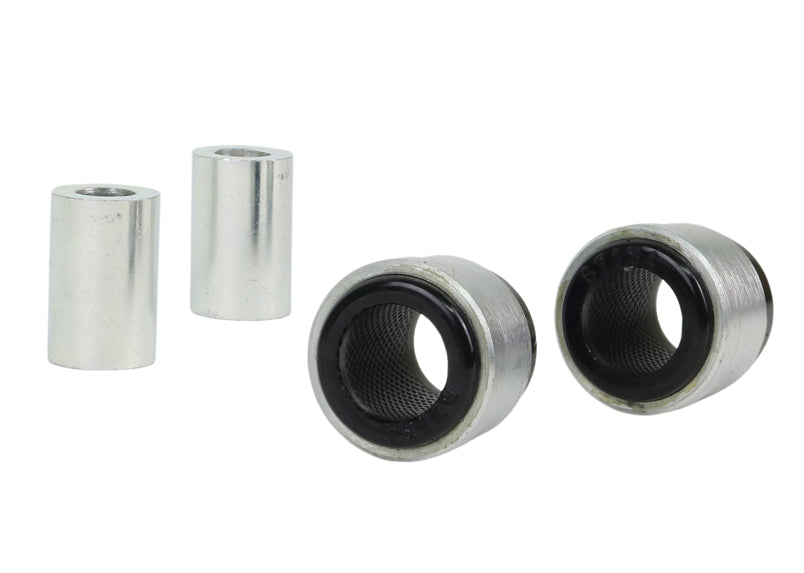

This Whiteline Rear Upper Inner Control Arm Bushing (Standard Repl.) fits the 2006-2010 Volvo V50 2.4i (P1). The part number is W63322. The kit contains 2 shell bushings and 2 tubes. Placement: rear. Whiteline's note for this fit: Standard Replacement: suits cast arms.

When a control arm bushing fails, the wheel is no longer held where it should be under braking and over bumps. This is a like-for-like replacement: it restores the original pivot behavior and ride comfort rather than changing them.

Installation is rated moderate, with about 3 hours of work listed. Plan on a wheel alignment afterward. To go with it on the Volvo V50, see Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and Adjustable Front Sway Bar Link.

Features

  • Finish: The metal parts are powder coated for durability.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Material: The part is made of polyurethane.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Bonded design: The bushing is bonded for strength where loads are highest.
Specifications
Part Number W63322
Part Name Control Arm Bushing
Vehicle 2006-2010 Volvo V50 2.4i
Drivetrain FWD/AWD
Chassis Code P1
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 38 mm
Bushing 2 Outer Diameter 36 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Standard Replacement - suits cast arms

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006VolvoV50FWDStandard Replacement - suits cast arms
2006VolvoV50AWDStandard Replacement - suits cast arms
2007VolvoV50FWDStandard Replacement - suits cast arms
2007VolvoV50AWDStandard Replacement - suits cast arms
2008VolvoV50FWDStandard Replacement - suits cast arms
2008VolvoV50AWDStandard Replacement - suits cast arms
2009VolvoV50FWDStandard Replacement - suits cast arms
2009VolvoV50AWDStandard Replacement - suits cast arms
2010VolvoV50FWDStandard Replacement - suits cast arms
2010VolvoV50AWDStandard Replacement - suits cast arms
