Product Details

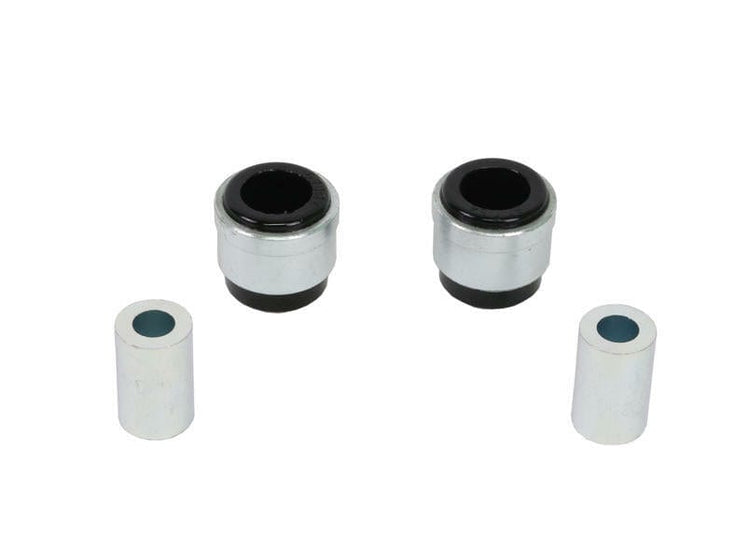

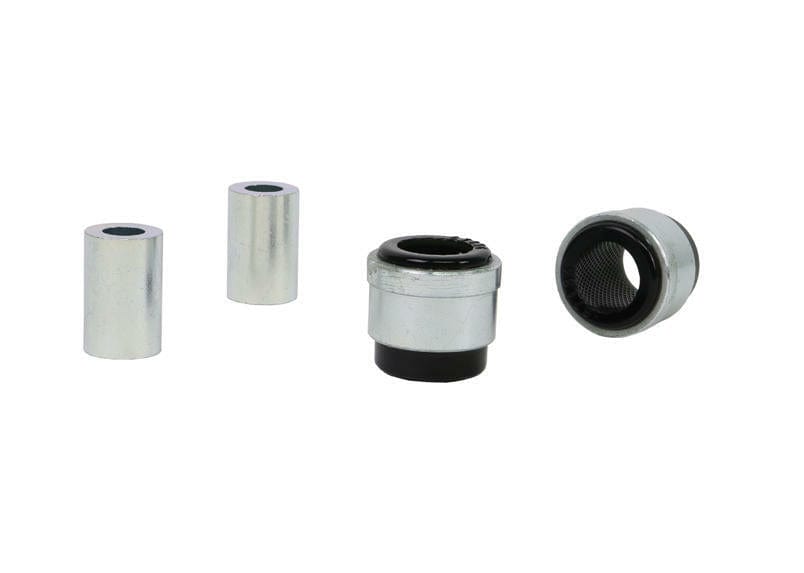

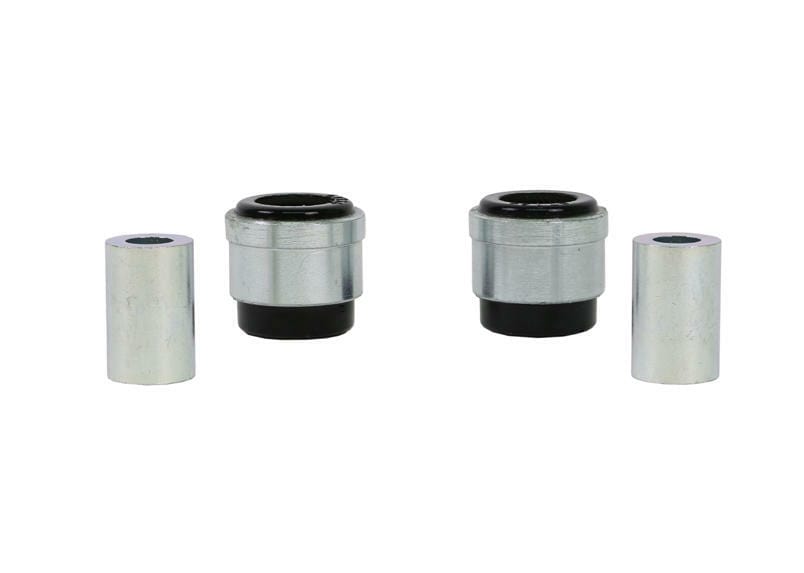

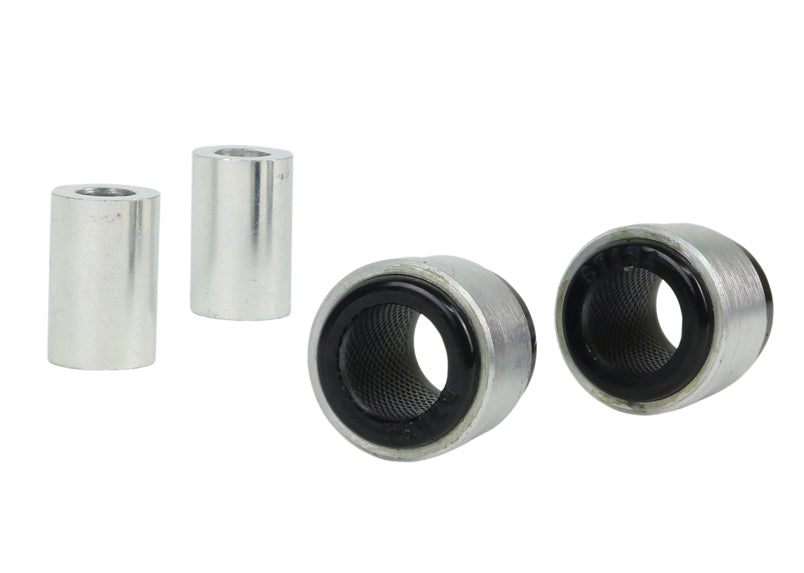

This Whiteline Rear Upper Inner Control Arm Bushing (Standard Repl.) fits the 2005 Volvo V50 i (P1). Position: rear. You receive 2 shell bushings and 2 tubes. Part number W63322. Whiteline's note for this fit: Standard Replacement: suits cast arms.

Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.

Installation is rated moderate, with about 3 hours of work listed. An alignment is required after installation. To go with it on the Volvo V50, see Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and Adjustable Front Sway Bar Link.

Features

  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Material: Made from polyurethane.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Bonded design: A bonded design adds strength for high load applications.
Specifications
Part Number W63322
Part Name Control Arm Bushing
Vehicle 2005 Volvo V50 i
Drivetrain FWD/AWD
Chassis Code P1
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 38 mm
Bushing 2 Outer Diameter 36 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Standard Replacement - suits cast arms

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005VolvoV50FWDStandard Replacement - suits cast arms
2005VolvoV50AWDStandard Replacement - suits cast arms
