Product Details

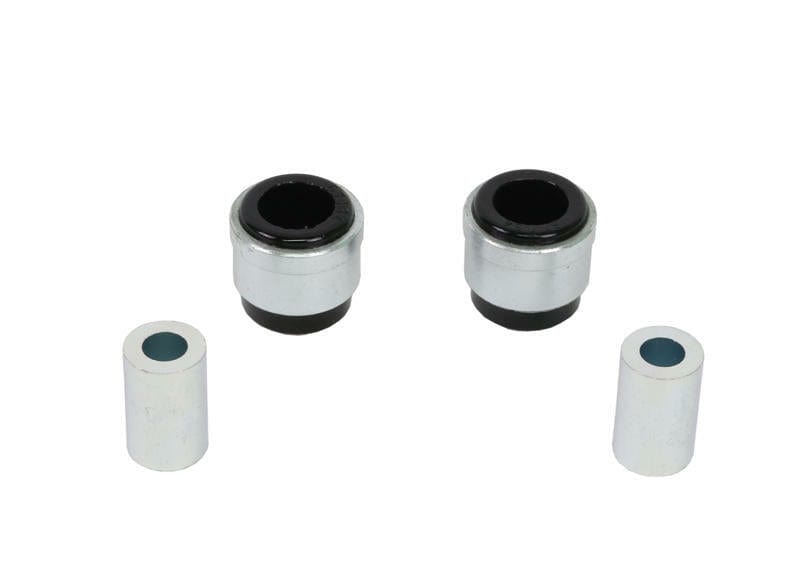

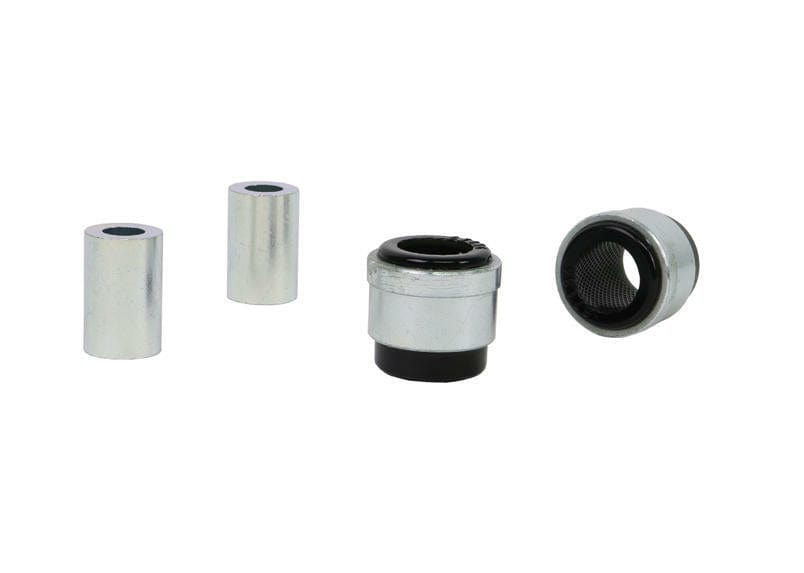

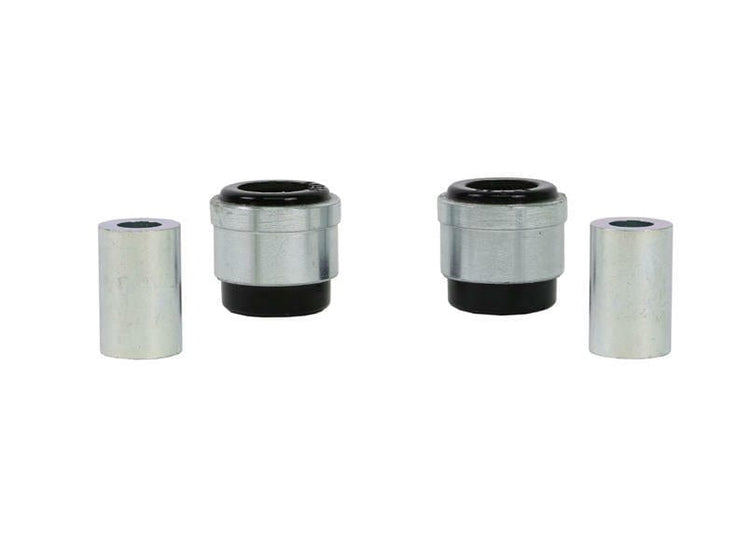

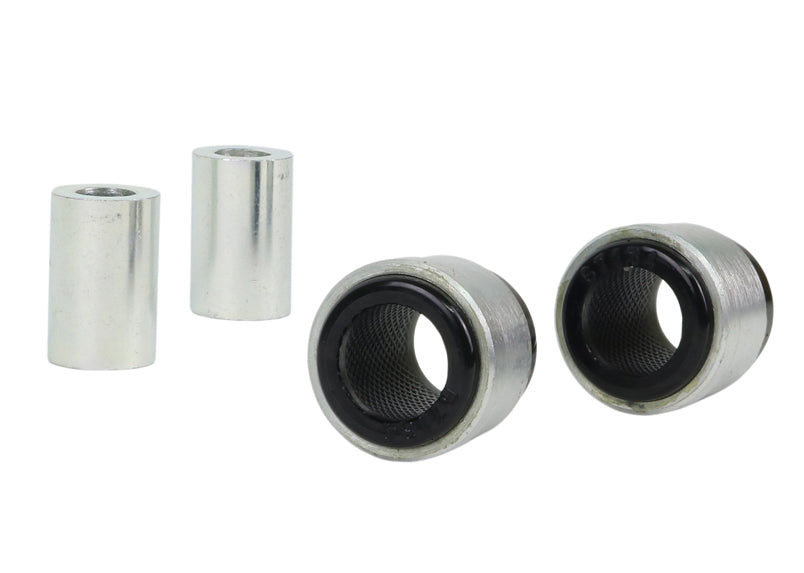

This Whiteline Rear Upper Inner Control Arm Bushing (Standard Repl.) fits the 2005-2011 Volvo V50 T5 (P1). This part is for the rear of the vehicle. Application note: Standard Replacement: suits cast arms. Order it as part number W63322. In the box: 2 shell bushings and 2 tubes.

Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.

Whiteline rates the install as moderate and lists about 3 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Volvo V50: Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and Adjustable Front Sway Bar Link.

Features

  • Material: Made from polyurethane.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Bonded design: Bonding adds durability in high-load use.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
Part Number W63322
Part Name Control Arm Bushing
Vehicle 2005-2011 Volvo V50 T5
Drivetrain FWD/AWD
Chassis Code P1
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 38 mm
Bushing 2 Outer Diameter 36 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Standard Replacement - suits cast arms

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005VolvoV50FWDStandard Replacement - suits cast arms
2005VolvoV50AWDStandard Replacement - suits cast arms
2006VolvoV50FWDStandard Replacement - suits cast arms
2006VolvoV50AWDStandard Replacement - suits cast arms
2007VolvoV50FWDStandard Replacement - suits cast arms
2007VolvoV50AWDStandard Replacement - suits cast arms
2008VolvoV50FWDStandard Replacement - suits cast arms
2008VolvoV50AWDStandard Replacement - suits cast arms
2009VolvoV50FWDStandard Replacement - suits cast arms
2009VolvoV50AWDStandard Replacement - suits cast arms
2010VolvoV50FWDStandard Replacement - suits cast arms
2010VolvoV50AWDStandard Replacement - suits cast arms
2011VolvoV50FWDStandard Replacement - suits cast arms
2011VolvoV50AWDStandard Replacement - suits cast arms
