Product Details

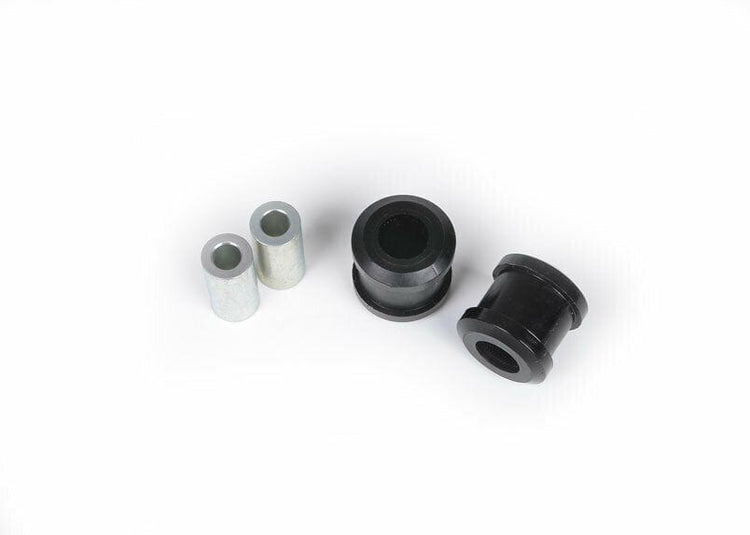

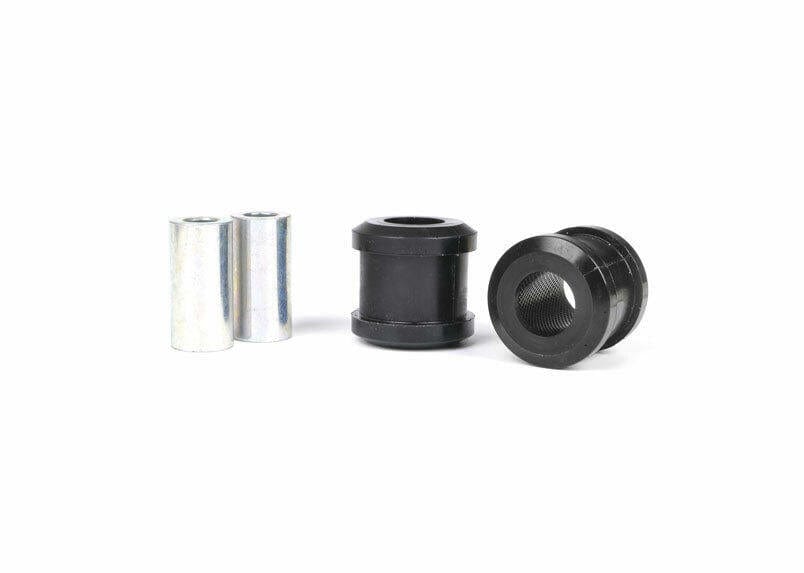

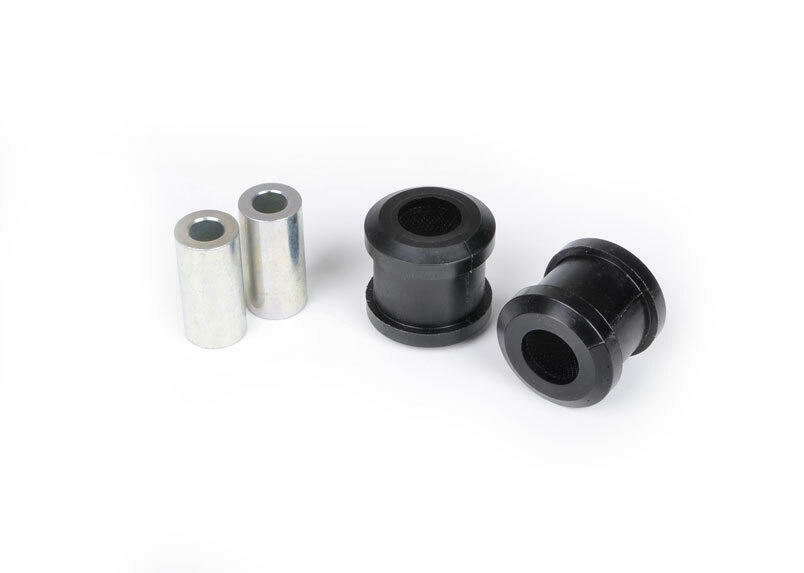

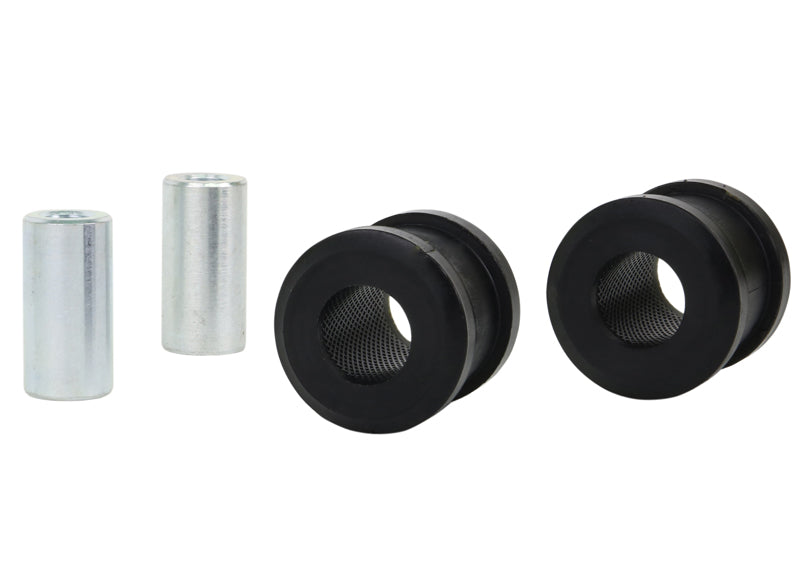

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2014 Volkswagen CC 4 Motion (3C). Part number W63549. Placement: rear. You receive 2 bushings and 2 tubes. Chassis code: 3C.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Volkswagen CC: Front and Rear Sway Bar Kit, Adjustable Rear Sway Bar Link Kit, and Heavy Duty Blade Adjustable 24mm Rear Sway Bar.

Features

  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Material: Made from polyurethane.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Finish: Powder coating covers the metal for protection against chips and rust.
Specifications
Part Number W63549
Part Name Control Arm Bushing
Vehicle 2014 Volkswagen CC 4 Motion
Chassis Code 3C
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40.3 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2014VolkswagenCC4WD
