Product Details

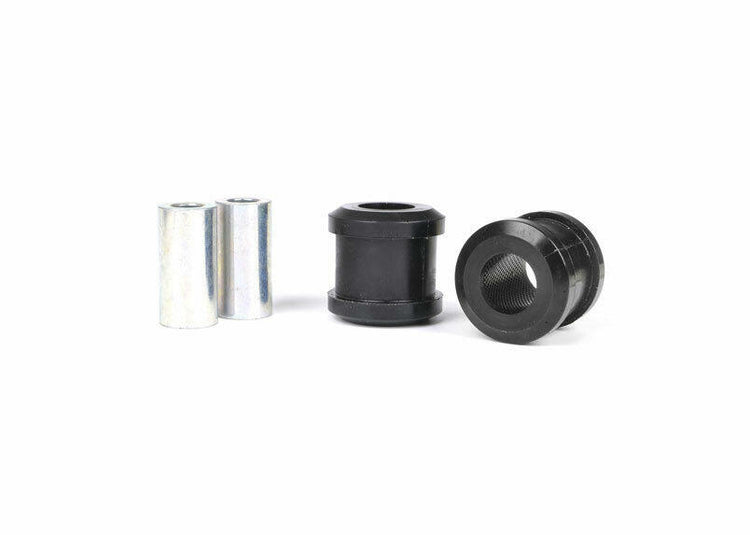

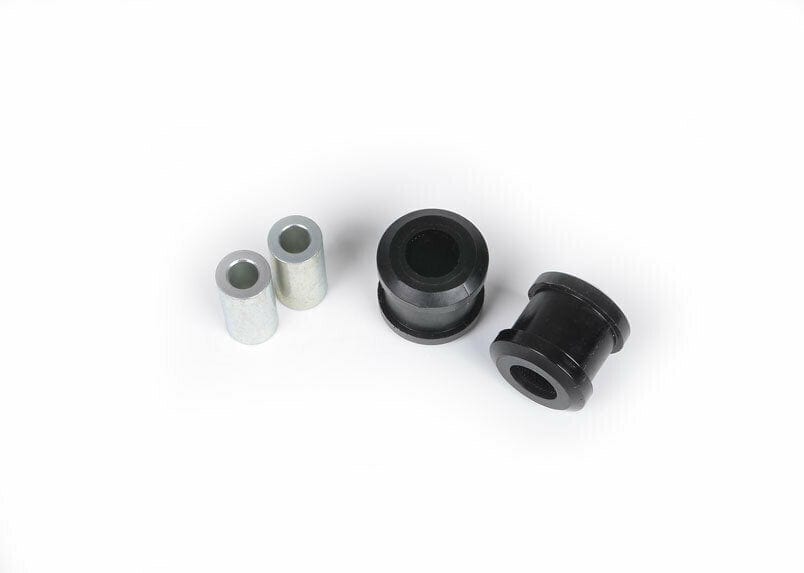

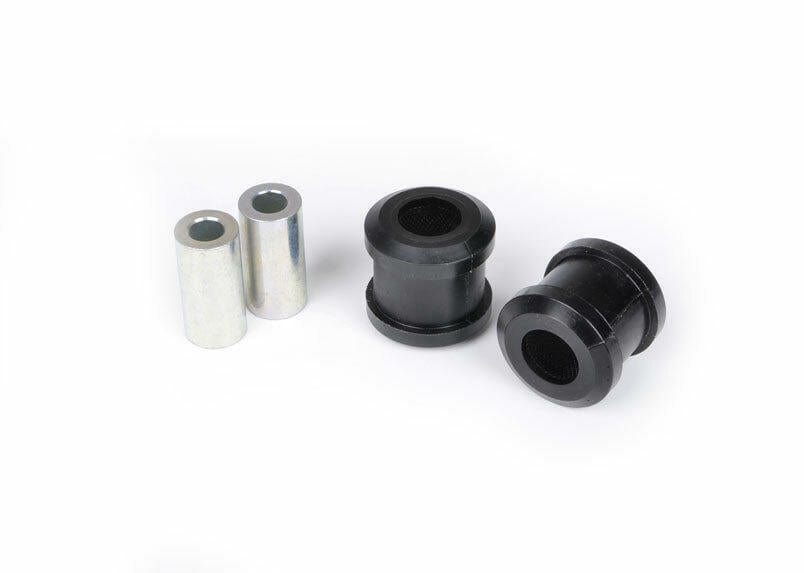

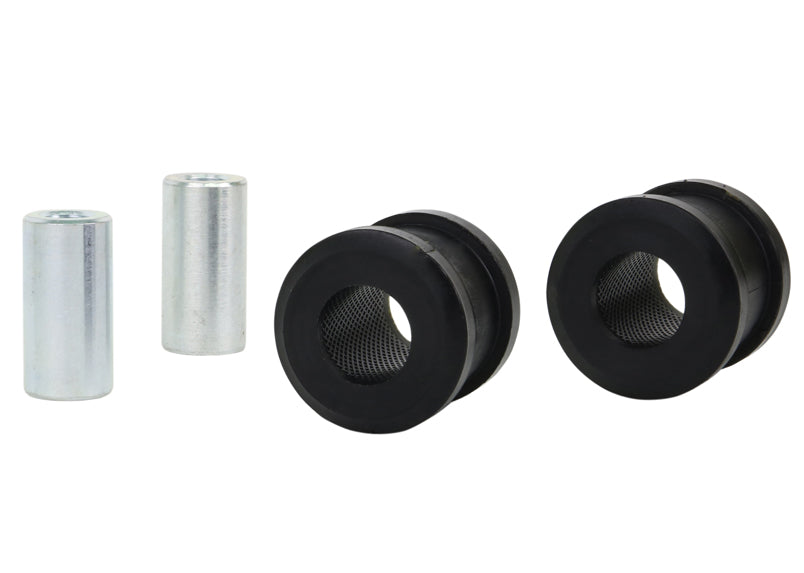

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2012-2013 Volkswagen CC Lux (3C). The kit contains 2 bushings and 2 tubes. Whiteline part number: W63549. This part is for the rear of the vehicle.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 3 hours of work listed. An alignment is required after installation. We also list Front and Rear Sway Bar Kit, Adjustable Rear Sway Bar Link Kit, and Heavy Duty Blade Adjustable 24mm Rear Sway Bar for the Volkswagen CC.

Features

  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Material: Built from polyurethane.
Specifications
Part Number W63549
Part Name Control Arm Bushing
Vehicle 2012-2013 Volkswagen CC Lux
Chassis Code 3C
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40.3 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2012VolkswagenCC4WD
2012VolkswagenCCFWD
2013VolkswagenCC4WD
2013VolkswagenCCFWD
