Product Details

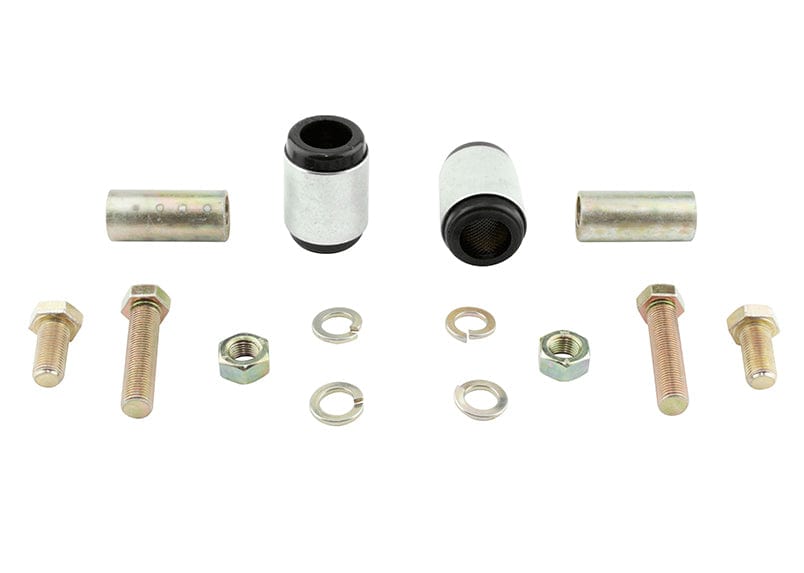

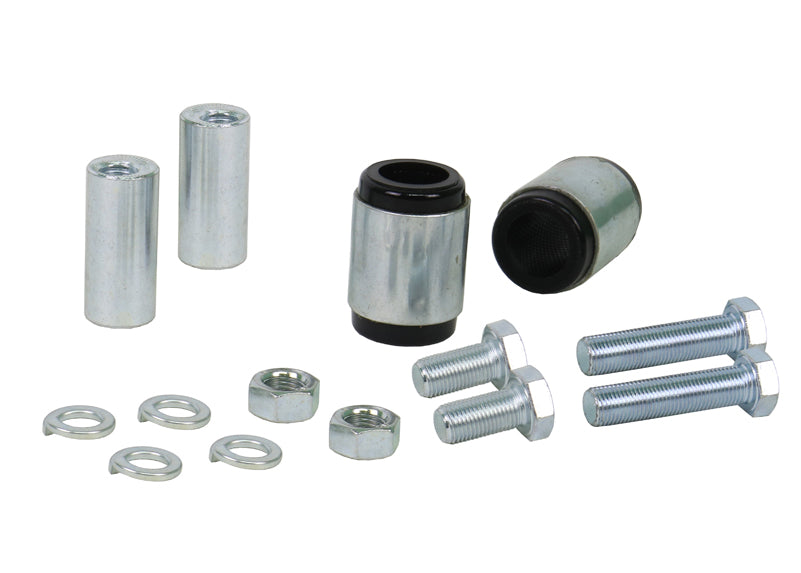

This Whiteline Rear Upper Inner Bushing Offset Camber Kit fits the 2008-2011 Mitsubishi Lancer GTS (CY). You receive 2 shell bushings and 2 tubes. Application note: Adds +/- 0.5 degrees Camber. Part number KCA329. It goes on the rear of the vehicle.
Most factory control arm bushings are centered and fixed. An offset one is built so the arm sits at a slightly different angle, which changes camber, and the firmer material stops that setting drifting under load.
Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Lancer: Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and 14mm Adjustable Front Camber Bolts.
Features
- Material: The part is made of polyurethane.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Bonded design: The bushing is bonded for extra strength under heavy loads.
- Install guide: An install guide comes in the box.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
| Part Number | KCA329 |
| Part Name | Bushing Camber Kit |
| Vehicle | 2008-2011 Mitsubishi Lancer GTS |
| Chassis Code | CY |
| Drivetrain | AWD/FWD |
| Bushing 1 Inner Diameter | 12 mm |
| Bushing 1 Outer Diameter | 36.5 mm |
| Bushing 2 Outer Diameter | 36 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Performance |
| Inside Diameter | 12 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 36.5 mm |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Adds +/- 0.5Degree Camber |
