Product Details

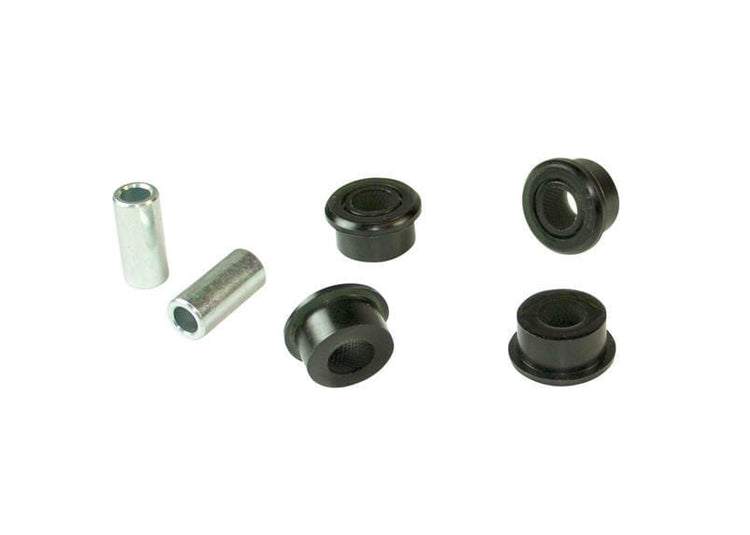

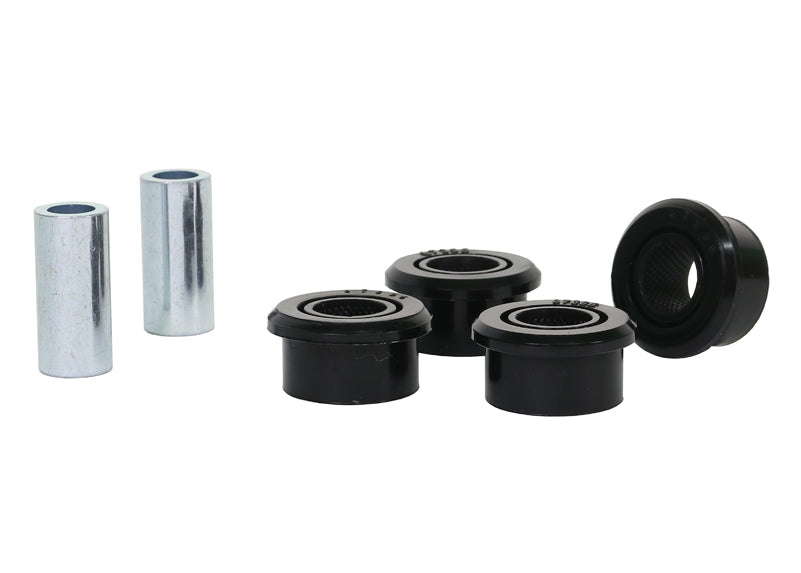

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2006-2009 Subaru Outback 2.5i, 2.5i Limited (BP/BR). Position: rear. In the box: 4 bushings and 2 tubes. Whiteline part number: W63396.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 1 hour. An alignment is required after installation. To go with it on the Outback, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.

Features

  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Material: Made from polyurethane.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Finish: The metal is powder coated, which resists corrosion and wear.
Specifications
Part Number W63396
Part Name Control Arm Bushing
Vehicle 2006-2009 Subaru Outback 2.5i, 2.5i Limited
Chassis Code BP/BR
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 33.6 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006SubaruOutbackAWD
2007SubaruOutbackAWD
2008SubaruOutbackAWD
2009SubaruOutbackAWD
