Product Details

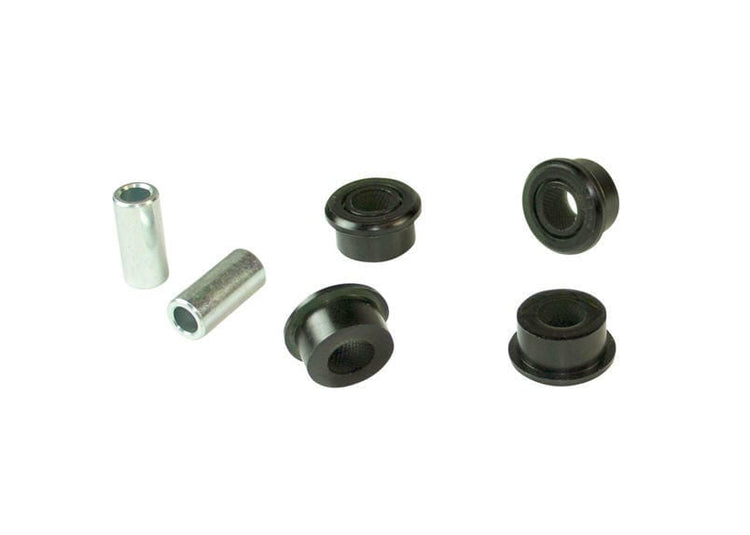

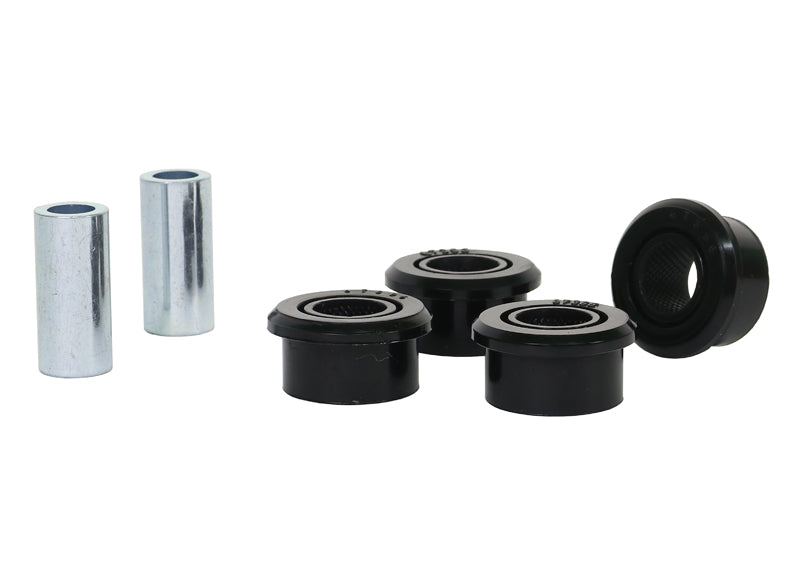

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2005-2009 Subaru Outback XT Limited (BP/BR). The kit contains 4 bushings and 2 tubes. Order it as part number W63396. It goes on the rear of the vehicle.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 1 hour. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit for the Outback.

Features

  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Material: Polyurethane construction.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
Specifications
Part Number W63396
Part Name Control Arm Bushing
Vehicle 2005-2009 Subaru Outback XT Limited
Chassis Code BP/BR
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 33.6 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005SubaruOutbackAWD
2006SubaruOutbackAWD
2007SubaruOutbackAWD
2008SubaruOutbackAWD
2009SubaruOutbackAWD
