Product Details

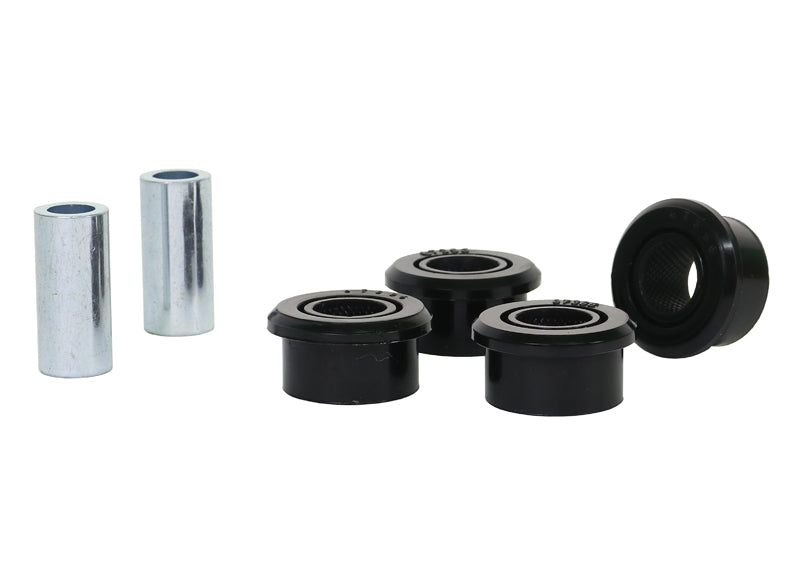

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2005-2008 Subaru Outback (BP). Part number W63396. Included: 4 bushings and 2 tubes. It goes on the rear of the vehicle.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.
Expect a moderate job of about 1 hour. Plan on a wheel alignment afterward. To go with it on the Outback, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.
Features
- Finish: Powder coating covers the metal for protection against chips and rust.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Material: Made from polyurethane.
- Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
| Part Number | W63396 |
| Part Name | Control Arm Bushing |
| Vehicle | 2005-2008 Subaru Outback |
| Chassis Code | BP |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 33.6 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
