Product Details

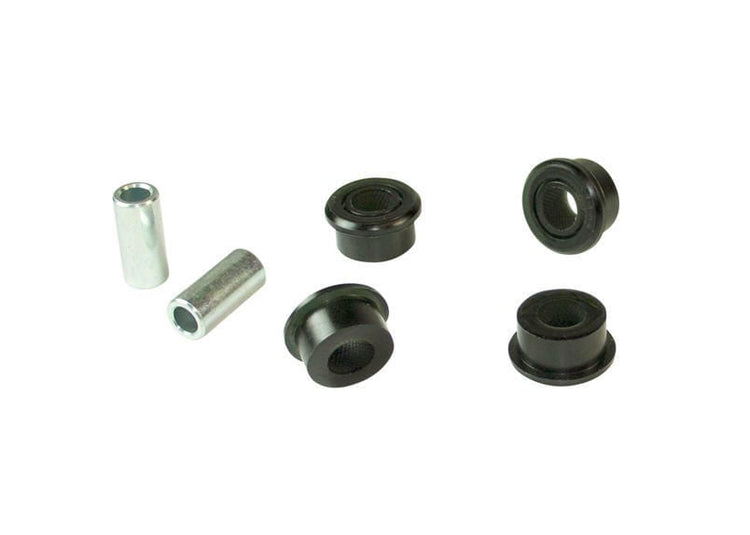

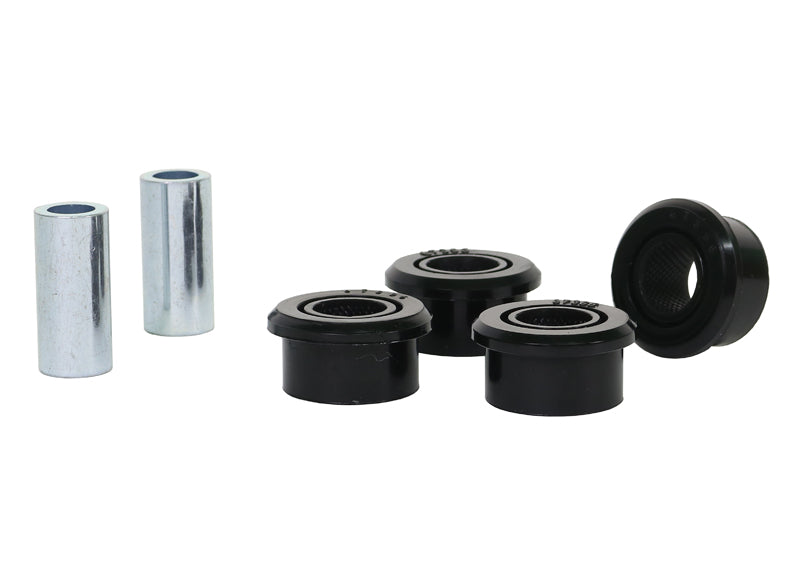

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2005-2006 Subaru Outback R, XT (BP). This part is for the rear of the vehicle. Chassis code: BP. The kit contains 4 bushings and 2 tubes. Whiteline part number: W63396.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as moderate and lists about 1 hour. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit for the Outback.

Features

  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Finish: A powder coated finish resists corrosion and wear.
  • Material: Made from polyurethane.
Specifications
Part Number W63396
Part Name Control Arm Bushing
Vehicle 2005-2006 Subaru Outback R, XT
Chassis Code BP
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 33.6 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005SubaruOutbackAWD
2006SubaruOutbackAWD
