Product Details

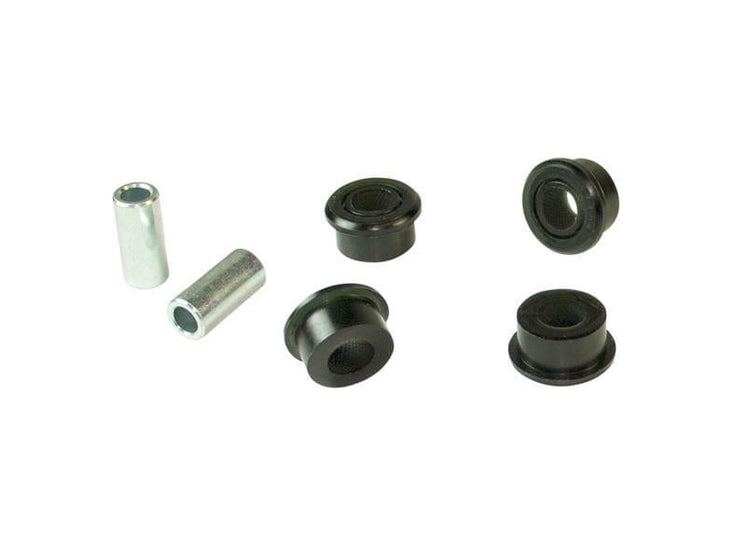

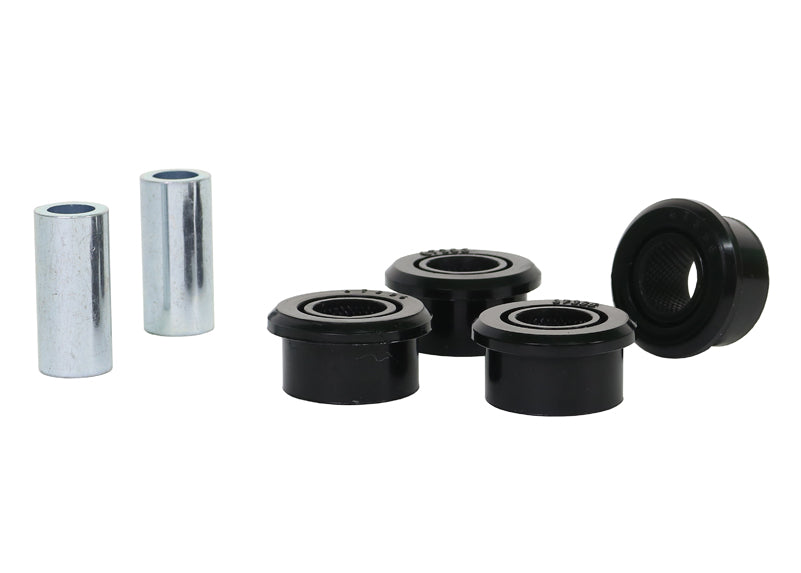

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2002-2004 Subaru Outback H6 (BE/BH/BP). Part number W63396. The kit contains 4 bushings and 2 tubes. It goes on the rear of the vehicle.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated moderate, with about 1 hour of work listed. Plan on a wheel alignment afterward. We also list Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front Steering Rack And Pinion Mount Bushing for the Outback.

Features

  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Material: Built from polyurethane.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Grease: Moly grease is supplied to prolong the life of the parts.
Specifications
Part Number W63396
Part Name Control Arm Bushing
Vehicle 2002-2004 Subaru Outback H6
Chassis Code BE/BH/BP
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 33.6 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002SubaruOutbackAWD
2003SubaruOutbackAWD
2004SubaruOutbackAWD
