Product Details

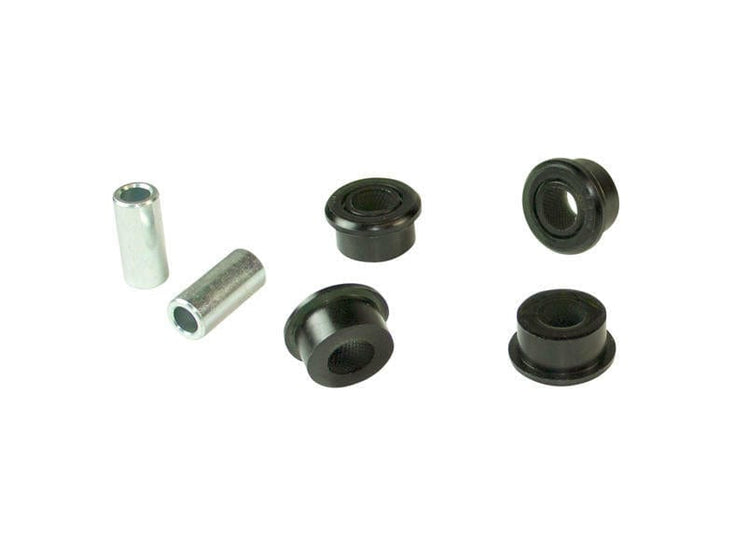

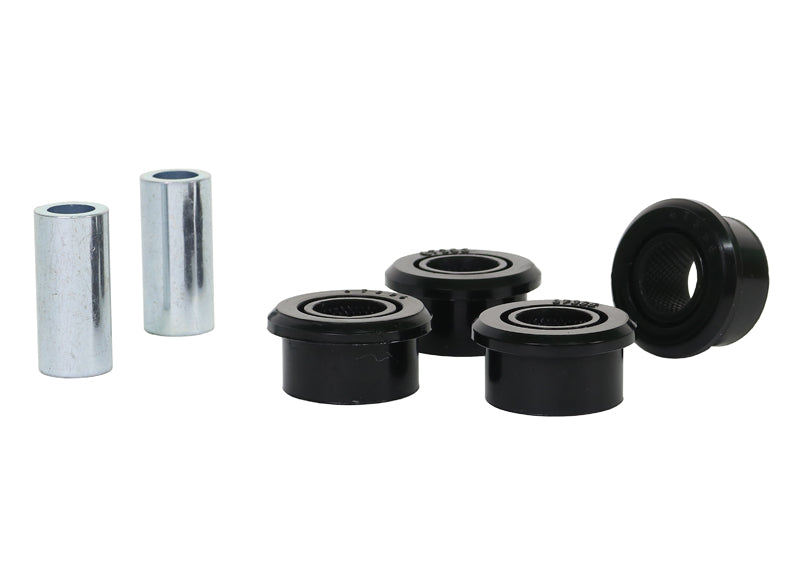

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2001-2004 Subaru Outback L.L. Bean (BE/BH/BP). It goes on the rear of the vehicle. In the box: 4 bushings and 2 tubes. The part number is W63396.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 1 hour of work listed. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Outback: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Material: Polyurethane construction.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
Part Number W63396
Part Name Control Arm Bushing
Vehicle 2001-2004 Subaru Outback L.L. Bean
Drivetrain AWD
Chassis Code BE/BH/BP
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 33.6 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2001SubaruOutbackAWD
2002SubaruOutbackAWD
2003SubaruOutbackAWD
2004SubaruOutbackAWD
