Product Details

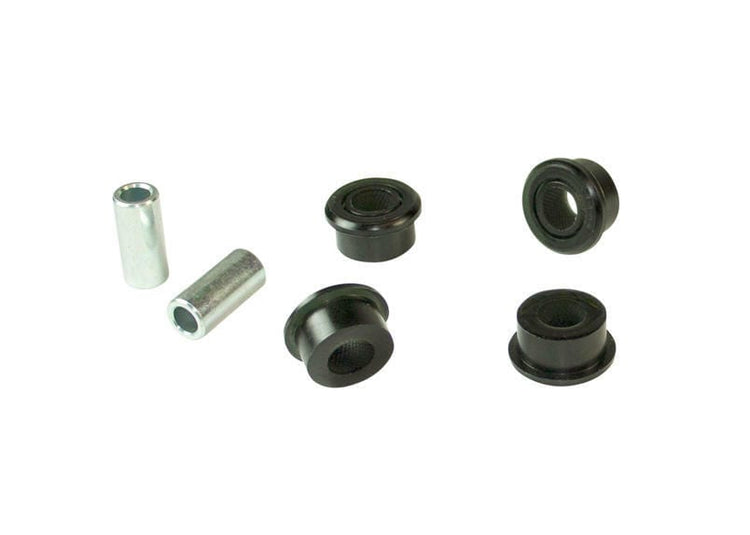

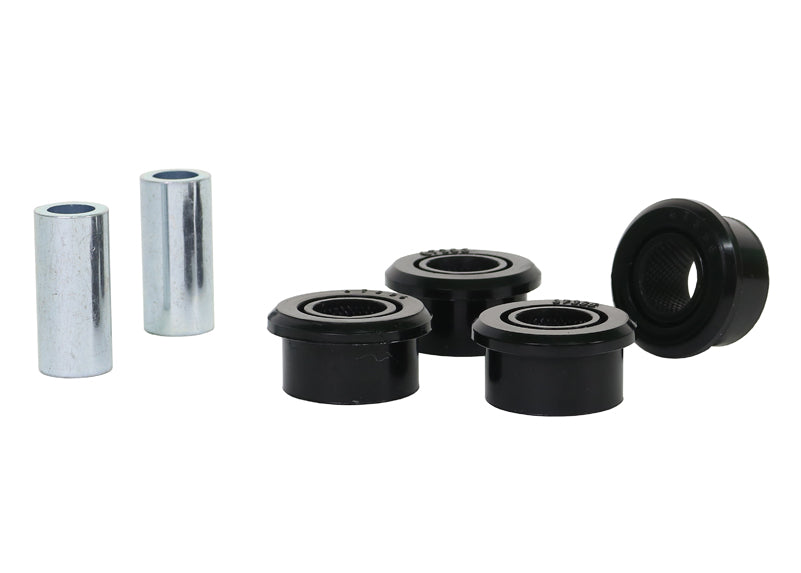

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2000-2008 Subaru Outback Base (BE/BH/BP/BR). Position: rear. In the box: 4 bushings and 2 tubes. Whiteline part number: W63396.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated moderate, with about 1 hour of work listed. Get the car aligned once it is back on the ground. To go with it on the Outback, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.

Features

  • Finish: The metal parts are powder coated for durability.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Material: Polyurethane construction.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Corrosion protection: Plated finish keeps rust off the hardware.
Specifications
Part Number W63396
Part Name Control Arm Bushing
Vehicle 2000-2008 Subaru Outback Base
Drivetrain AWD
Chassis Code BE/BH/BP/BR
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 33.6 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2000SubaruOutbackAWD
2001SubaruOutbackAWD
2002SubaruOutbackAWD
2003SubaruOutbackAWD
2004SubaruOutbackAWD
2005SubaruOutbackAWD
2006SubaruOutbackAWD
2007SubaruOutbackAWD
2008SubaruOutbackAWD
