Product Details

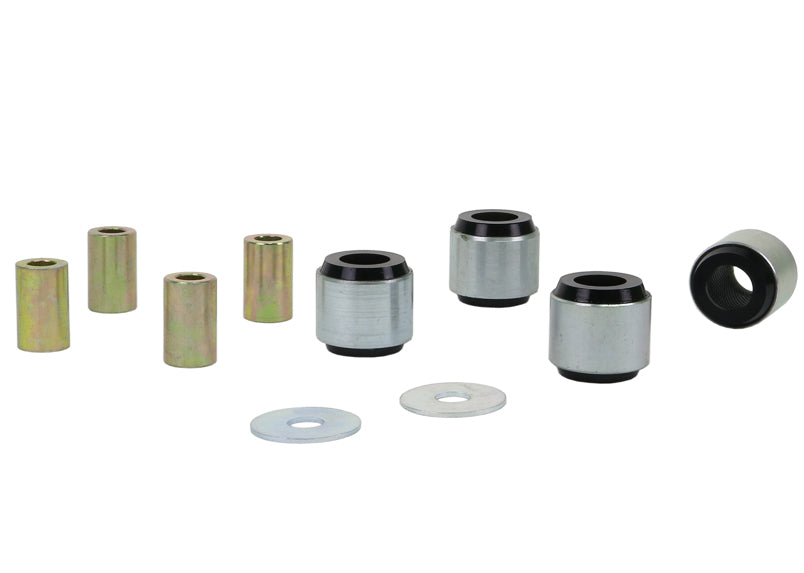

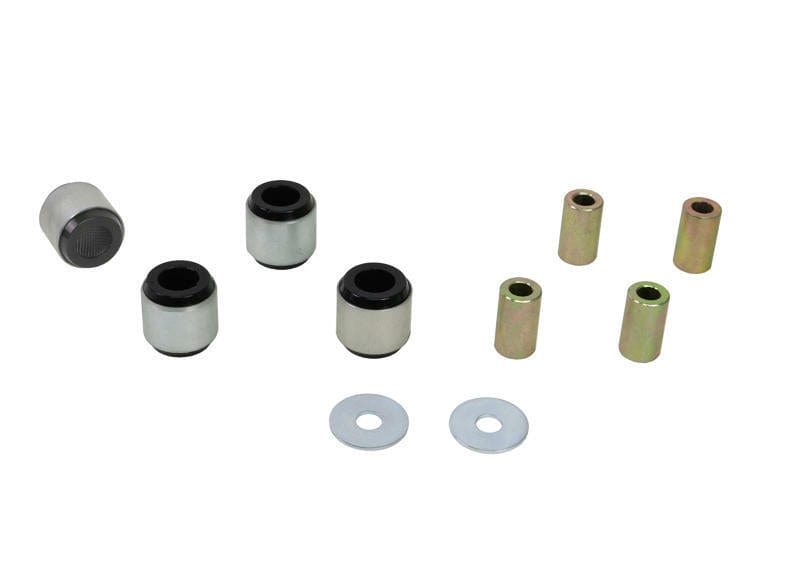

This Whiteline Rear Control Arm Upper Front Bushing (Standard Repl.) fits the 2006-2007 Dodge Charger Base (LX). Chassis code: LX. Included: 4 shell bushings, 4 tubes, and 2 washers. Part number W63340. Application note: Standard Replacements. Qty 2 needed per vehicle. This part is for the rear of the vehicle.

Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.

Installation is rated moderate, with about 3 hours of work listed. Plan on a wheel alignment afterward. We also list Front and Rear Sway Bar Kit, Rear Subframe Mount Bushing, and Front Sway Bar Link Kit for the Charger.

Features

  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Install guide: Instructions for fitting are packed in the box.
  • Bonded design: A bonded design adds strength for high load applications.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Material: Made from polyurethane.
Specifications
Part Number W63340
Part Name Control Arm Bushing
Vehicle 2006-2007 Dodge Charger Base
Drivetrain RWD/AWD
Chassis Code LX
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes, 2 Washers
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Standard Replacements. Qty 2 needed per vehicle.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006DodgeChargerRWDStandard Replacements. Qty 2 needed per vehicle.
2006DodgeChargerAWDStandard Replacements. Qty 2 needed per vehicle.
2007DodgeChargerRWDStandard Replacements. Qty 2 needed per vehicle.
2007DodgeChargerAWDStandard Replacements. Qty 2 needed per vehicle.
