Product Details

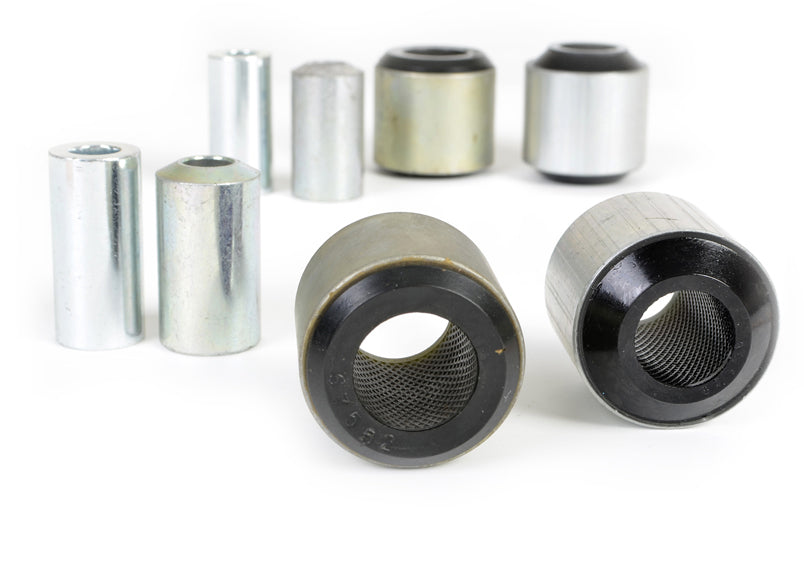

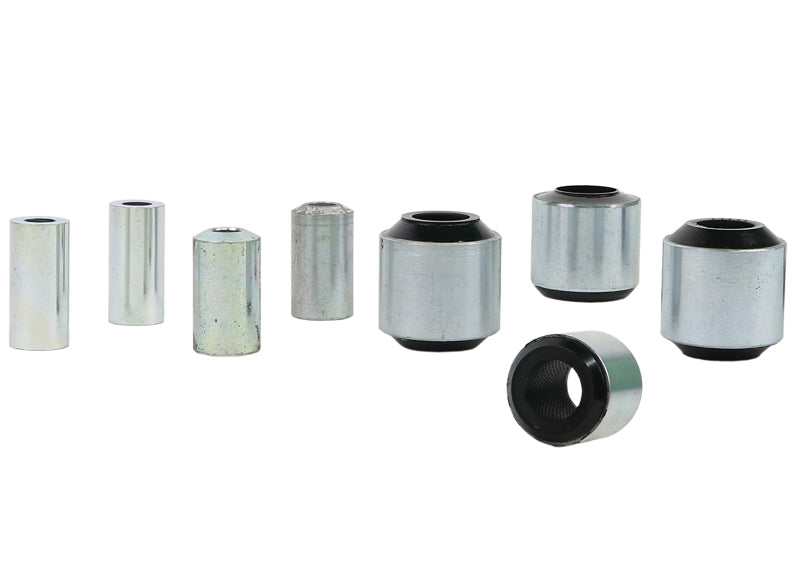

This Whiteline Rear Control Arm Upper Front Bushing fits the 2009-2011 BMW 335d 3 Series. Application note: Fits OEM Arm 33-32-2-406-289. Included: 4 shell bushings and 4 tubes. The part number is W63403. It goes on the rear of the vehicle.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as moderate and lists about 3 hours. Get the car aligned once it is back on the ground. Working on the same car? We also list Adjustable Front Sway Bar Link, Rear Subframe Mount Bushing, and Heavy Duty 20mm Rear Sway Bar for the 335d 3 Series.
Features
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Bonded design: The bushing is bonded for strength where loads are highest.
- Install guide: An install guide comes in the box.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Material: Built from polyurethane.
- Finish: Powder coating covers the metal for protection against chips and rust.
Specifications
| Part Number | W63403 |
| Part Name | Control Arm Bushing |
| Vehicle | 2009-2011 BMW 335d 3 Series |
| Chassis Code | E90 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 45.4 mm |
| Bushing 2 Inner Diameter | 12.2 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Fits OEM Arm 33-32-2-406-289 |
Fitment for 335d control arm bushings
Fits the 2009-2011 BMW 335d 3 Series. Each model year is listed below.
