Product Details

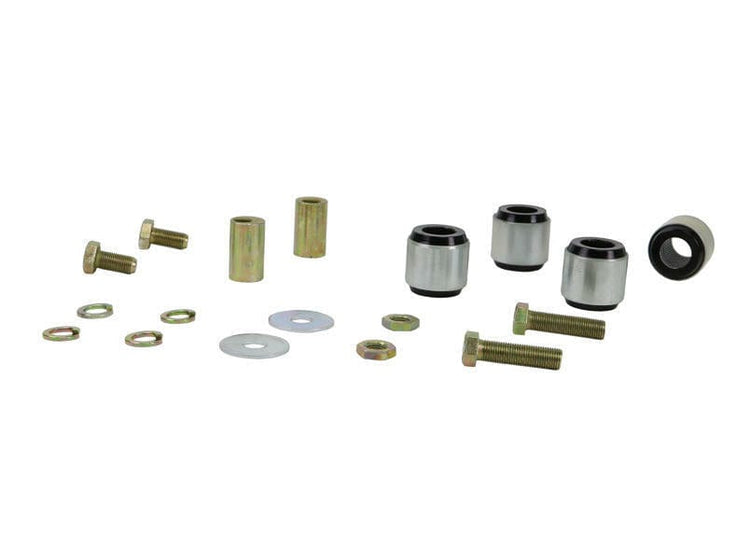

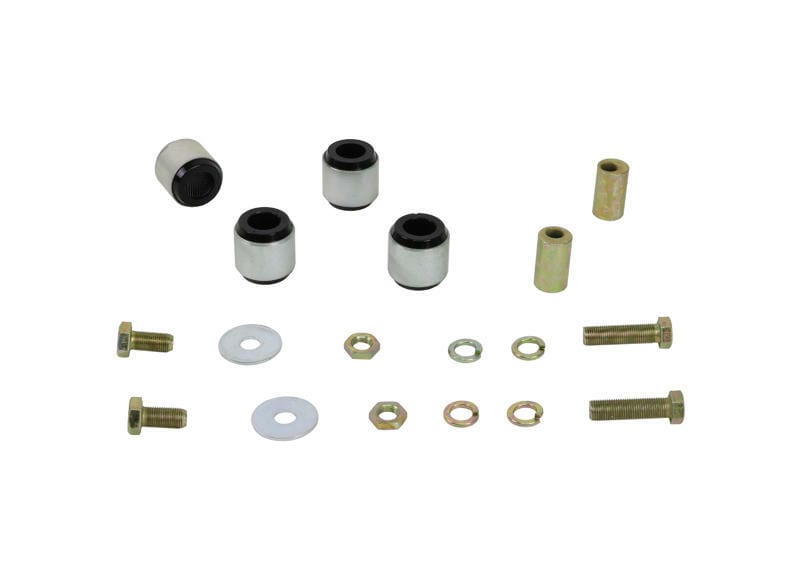

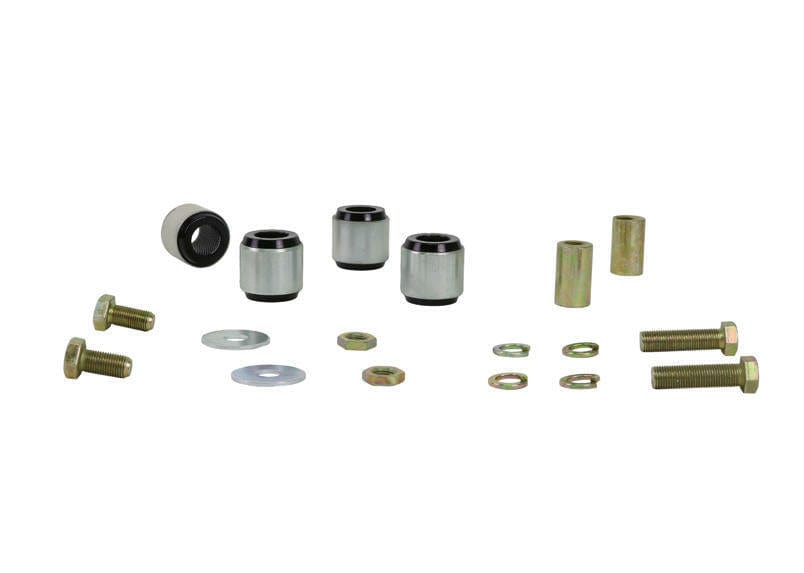

This Whiteline Rear Control Arm Upper Front Bushing fits the 2012-2016 Dodge Challenger SXT, SXT Plus (LC/LA). Application note: Adds +/- 0.5 degrees Camber. Qty 2 needed per vehicle. You receive 4 shell bushings and 4 tubes. Order it as part number W63342. Placement: rear.

Lowering a car or fitting wider tires can push camber out of the range an alignment shop can correct with factory parts. This offset bushing moves the arm's pivot point to give the technician more to work with, while also replacing the soft rubber that was there.

Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the Challenger, see Rear Subframe Mount Bushing, Front Sway Bar Link Kit, and Front and Rear Sway Bar Kit.

Features

  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Material: Built from polyurethane.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
Part Number W63342
Part Name Control Arm Bushing
Vehicle 2012-2016 Dodge Challenger SXT, SXT Plus
Drivetrain RWD
Chassis Code LC/LA
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing 2 Inner Diameter 12.2 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Adds +/- 0.5Degree Camber. Qty 2 needed per vehicle.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2012DodgeChallengerRWDAdds +/- 0.5Degree Camber. Qty 2 needed per vehicle.
2013DodgeChallengerRWDAdds +/- 0.5Degree Camber. Qty 2 needed per vehicle.
2014DodgeChallengerRWDAdds +/- 0.5Degree Camber. Qty 2 needed per vehicle.
2015DodgeChallengerRWDAdds +/- 0.5Degree Camber. Qty 2 needed per vehicle.
2016DodgeChallengerRWDAdds +/- 0.5Degree Camber. Qty 2 needed per vehicle.
