Product Details

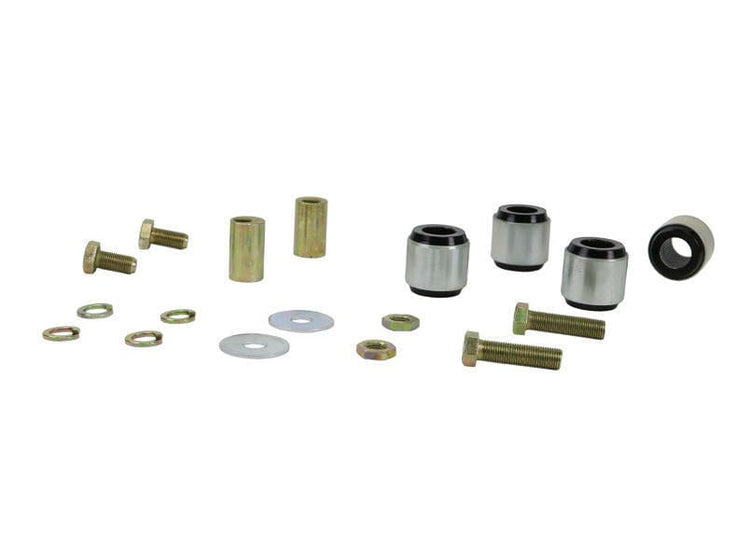

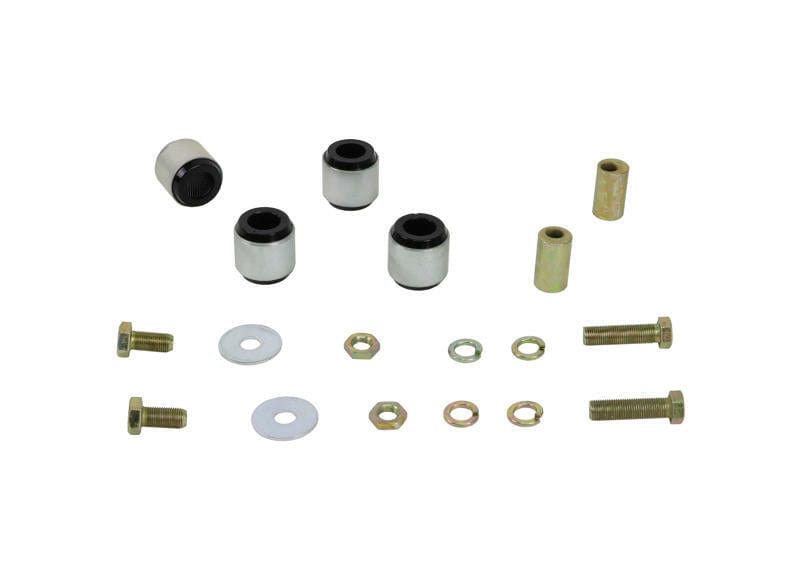

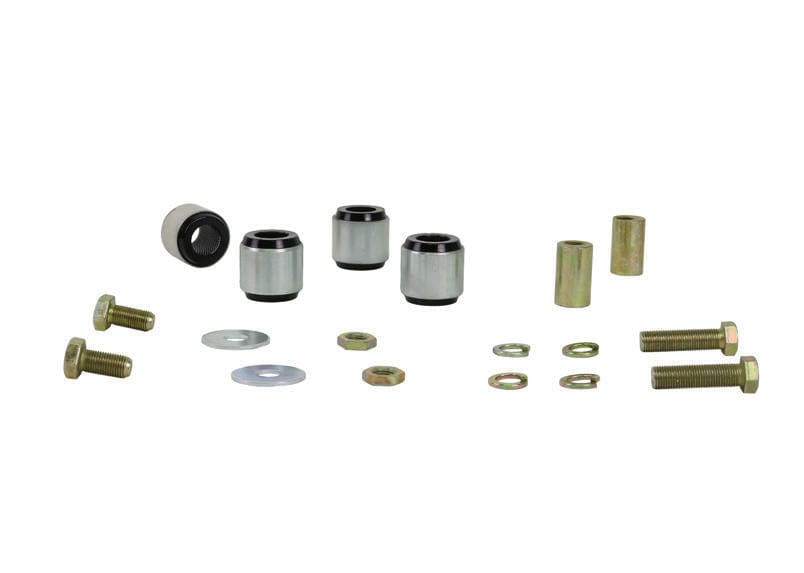

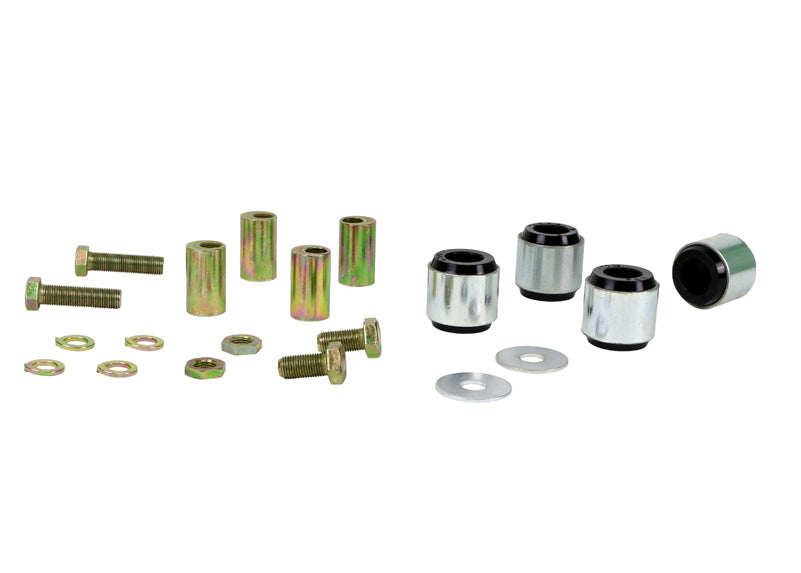

This Whiteline Rear Control Arm Upper Front Bushing fits the 2006-2007 Dodge Charger Base (LX). Included: 4 shell bushings and 4 tubes. It goes on the rear of the vehicle. Application note: Adds +/- 0.5 degrees Camber. Qty 2 needed per vehicle. The part number is W63342.

Most factory control arm bushings are centered and fixed. An offset one is built so the arm sits at a slightly different angle, which changes camber, and the firmer material stops that setting drifting under load.

Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the Charger, see Rear Subframe Mount Bushing, Front Sway Bar Link Kit, and Front and Rear Sway Bar Kit.

Features

  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Finish: The metal parts are powder coated for durability.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Camber adjustment: Designed to optimize camber alignment and offset the effect of body roll and tire roll in corners.
  • Bonded design: The bushing is bonded for strength where loads are highest.
Specifications
Part Number W63342
Part Name Control Arm Bushing
Vehicle 2006-2007 Dodge Charger Base
Drivetrain RWD/AWD
Chassis Code LX
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 39.5 mm
Bushing 2 Inner Diameter 12.2 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Adds +/- 0.5Degree Camber. Qty 2 needed per vehicle.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006DodgeChargerRWDAdds +/- 0.5Degree Camber. Qty 2 needed per vehicle.
2006DodgeChargerAWDAdds +/- 0.5Degree Camber. Qty 2 needed per vehicle.
2007DodgeChargerRWDAdds +/- 0.5Degree Camber. Qty 2 needed per vehicle.
2007DodgeChargerAWDAdds +/- 0.5Degree Camber. Qty 2 needed per vehicle.
