Product Details

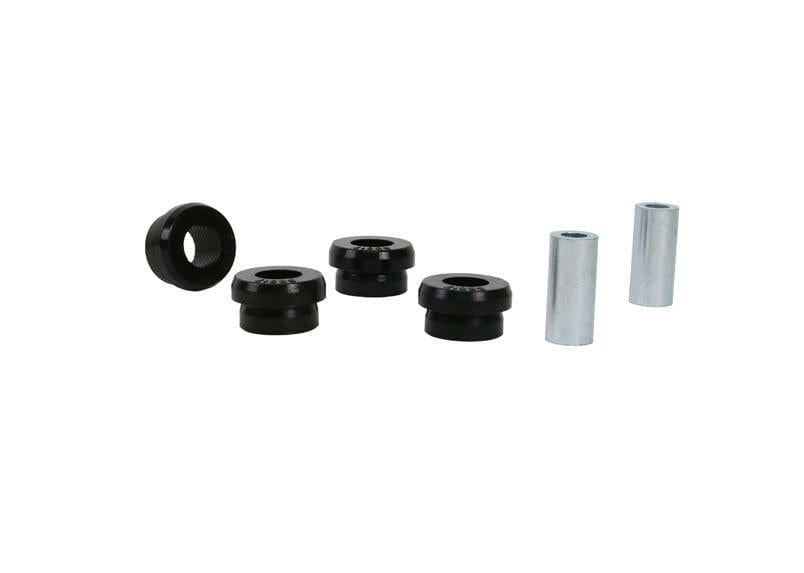

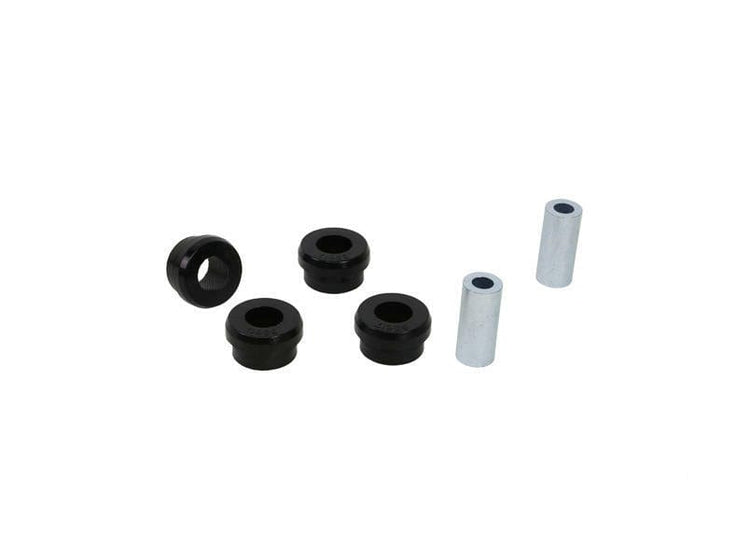

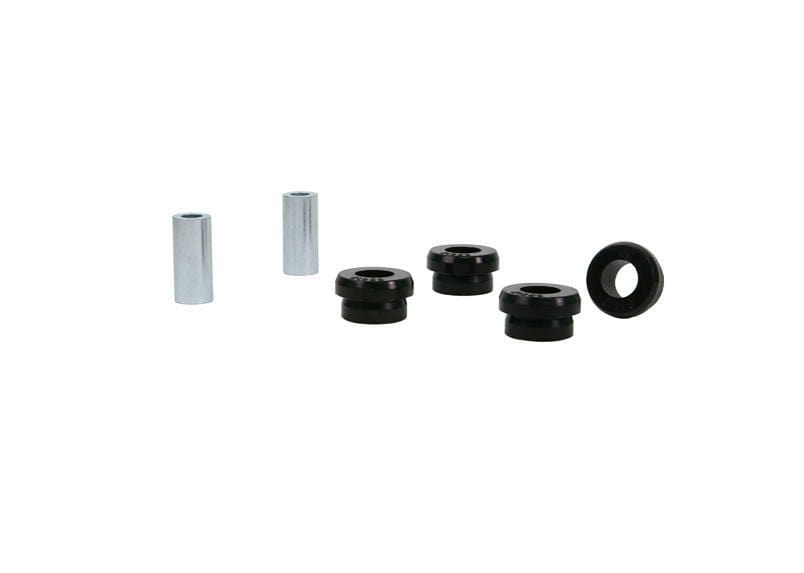

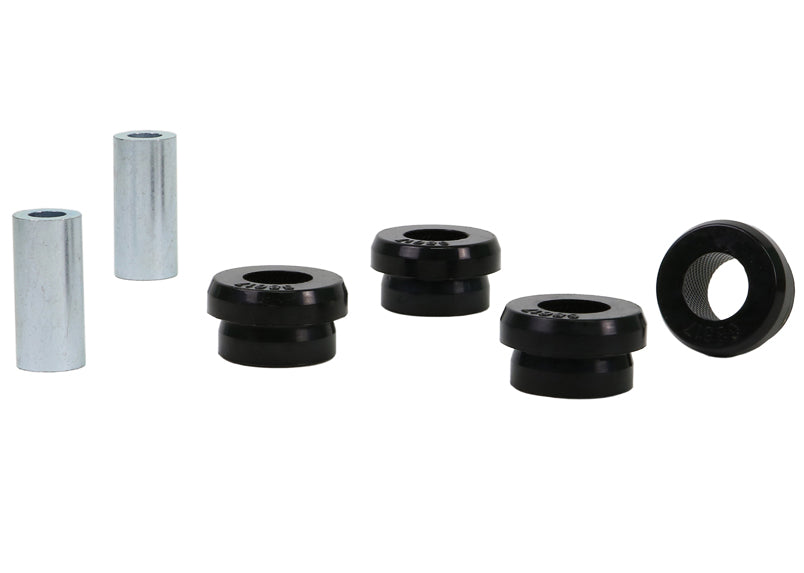

This Whiteline Rear Control Arm Lower Rear Outer Bushing fits the 2015 Volkswagen Eos Final Edition (1F). It goes on the rear of the vehicle. In the box: 4 bushings and 2 tubes. The part number is W63554.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as moderate and lists about 3 hours. Get the car aligned once it is back on the ground. To go with it on the Volkswagen Eos, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Install guide: Whiteline packs an install guide with it.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Finish: The metal parts are powder coated for durability.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
Specifications
Part Number W63554
Part Name Control Arm Bushing
Vehicle 2015 Volkswagen Eos Final Edition
Chassis Code 1F
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 36.7 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015VolkswagenEosFWD
