Product Details

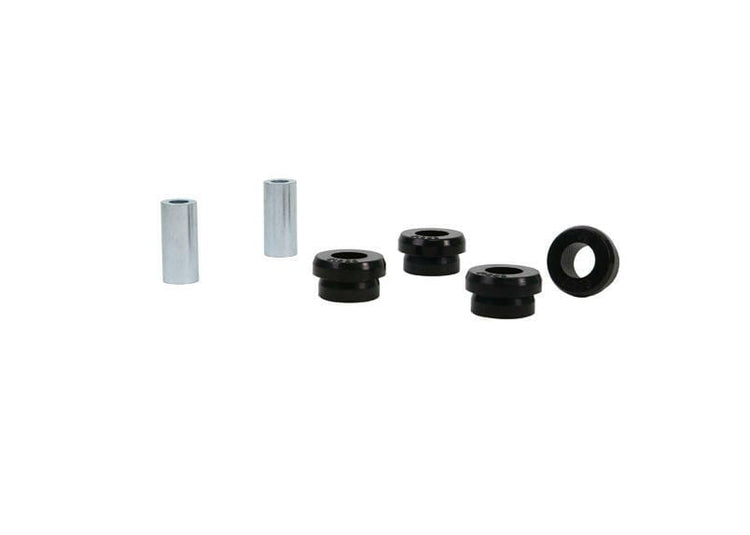

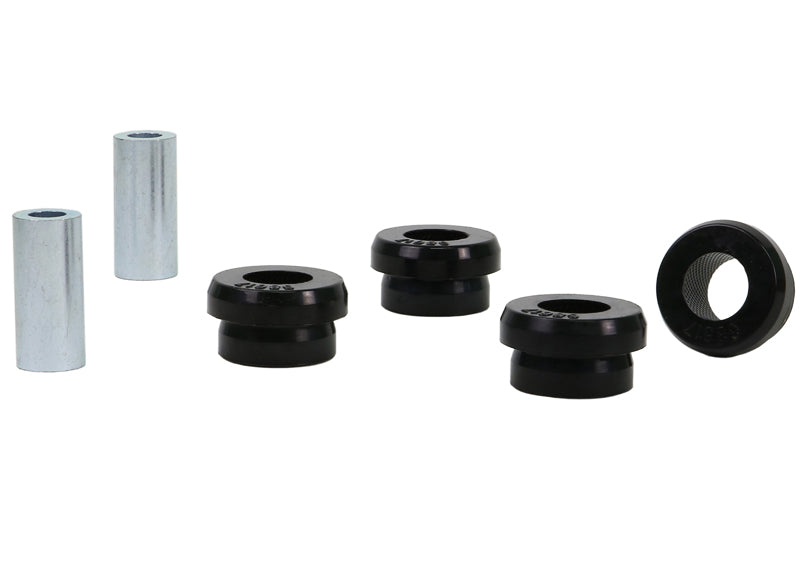

This Whiteline Rear Control Arm Lower Rear Outer Bushing fits the 2014 Volkswagen CC 4 Motion (3C). Order it as part number W63554. In the box: 4 bushings and 2 tubes. Placement: rear.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.
Installation is rated moderate, with about 3 hours of work listed. An alignment is required after installation. Other Whiteline parts we list for the Volkswagen CC: Front and Rear Sway Bar Kit, Adjustable Rear Sway Bar Link Kit, and Heavy Duty Blade Adjustable 24mm Rear Sway Bar.
Features
- Material: Built from polyurethane.
- Install guide: An install guide comes in the box.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Finish: Powder coating covers the metal for protection against chips and rust.
Specifications
| Part Number | W63554 |
| Part Name | Control Arm Bushing |
| Vehicle | 2014 Volkswagen CC 4 Motion |
| Chassis Code | 3C |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 36.7 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
