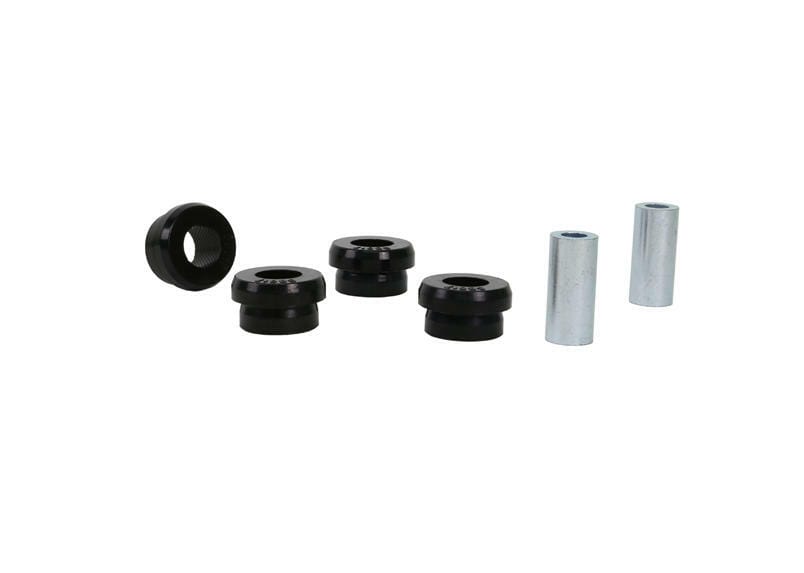

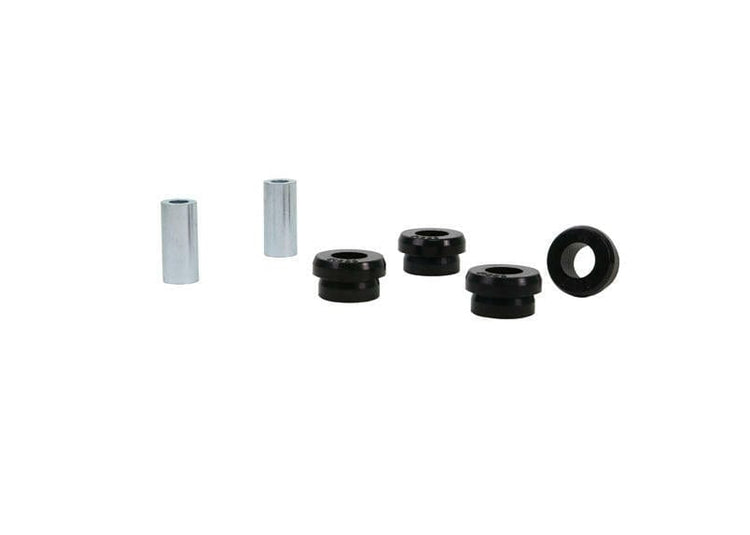

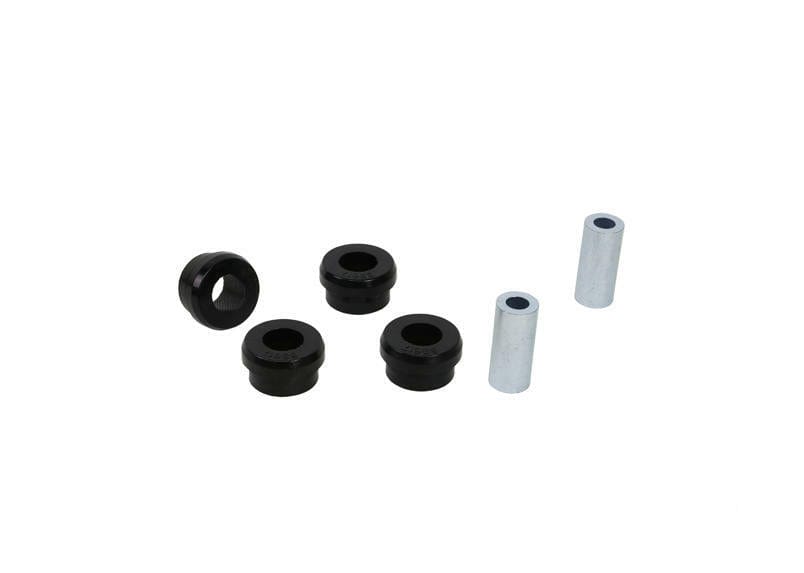

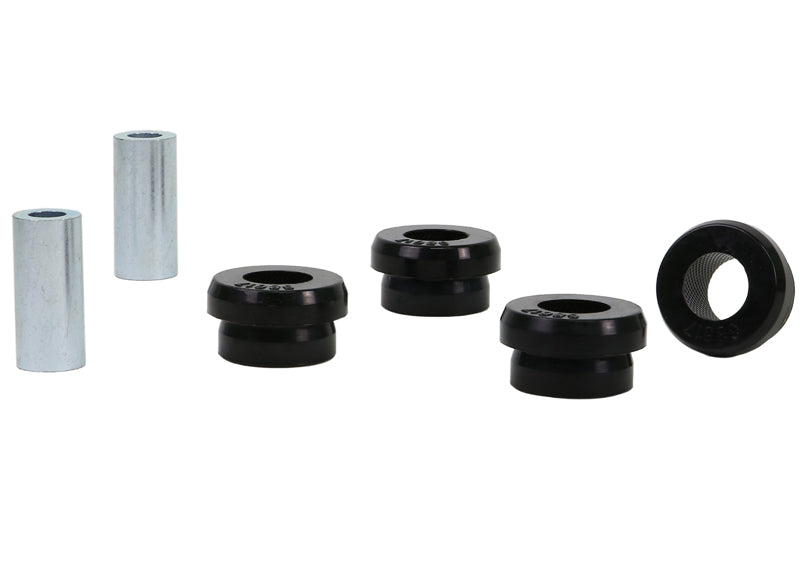

This Whiteline Rear Control Arm Lower Rear Outer Bushing fits the 2012 Volkswagen CC Lux Limited, Lux Plus (3C). This part is for the rear of the vehicle. Included: 4 bushings and 2 tubes. Whiteline part number: W63554.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as moderate and lists about 3 hours. Get the car aligned once it is back on the ground. To go with it on the Volkswagen CC, see Front and Rear Sway Bar Kit, Adjustable Rear Sway Bar Link Kit, and Heavy Duty Blade Adjustable 24mm Rear Sway Bar.

Features

  • Material: Built from polyurethane.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Finish: The metal parts are powder coated for durability.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Install guide: Step-by-step installation instructions come with it.
Specifications
Part Number W63554
Part Name Control Arm Bushing
Vehicle 2012 Volkswagen CC Lux Limited, Lux Plus
Chassis Code 3C
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 36.7 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2012VolkswagenCC4WD
2012VolkswagenCCFWD
