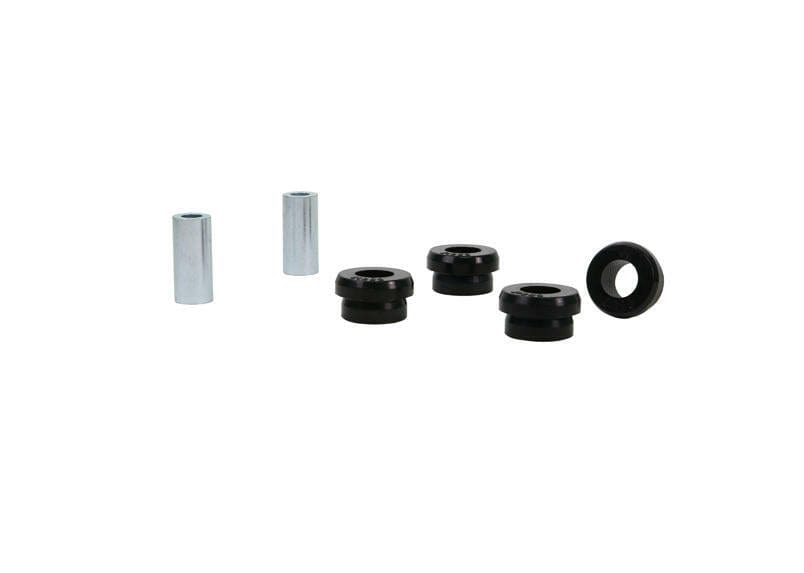

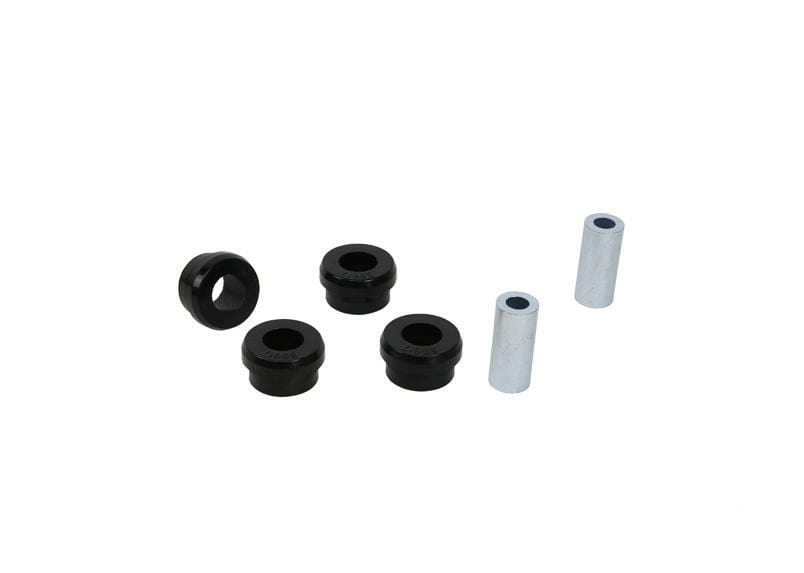

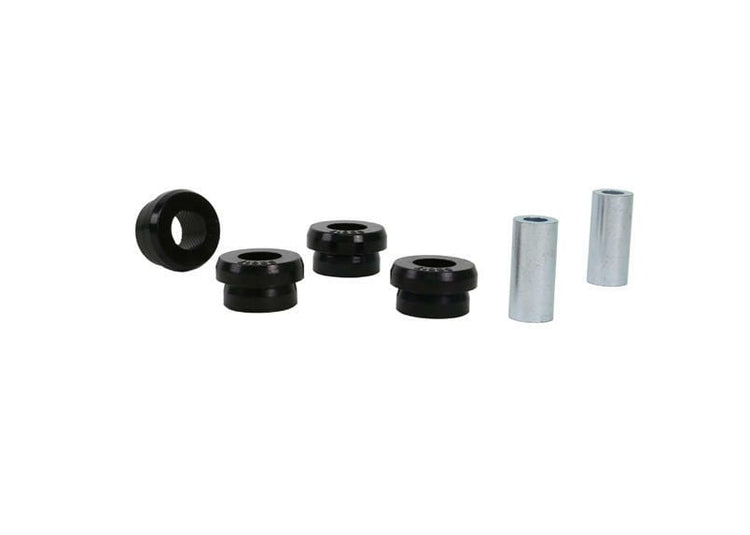

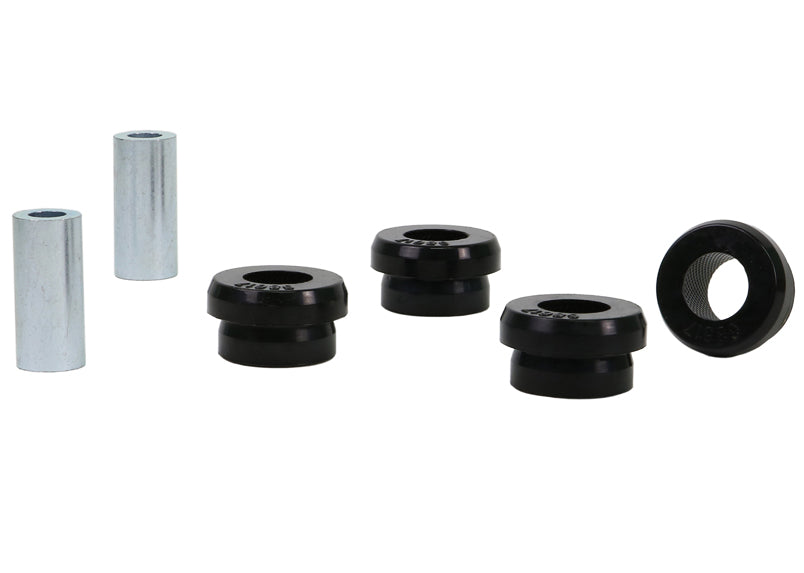

This Whiteline Rear Control Arm Lower Rear Outer Bushing fits the 2009-2011 Volkswagen CC Luxury, VR6 4Motion (3C). You receive 4 bushings and 2 tubes. The part number is W63554. Chassis code: 3C. Position: rear.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated moderate, with about 3 hours of work listed. An alignment is required after installation. To go with it on the Volkswagen CC, see Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Install guide: Instructions for fitting are packed in the box.
  • Finish: A powder coated finish resists corrosion and wear.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Material: Made from polyurethane.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
Part Number W63554
Part Name Control Arm Bushing
Vehicle 2009-2011 Volkswagen CC Luxury, VR6 4Motion
Chassis Code 3C
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 36.7 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009VolkswagenCC4WD
2009VolkswagenCCFWD
2010VolkswagenCC4WD
2010VolkswagenCCFWD
2011VolkswagenCC4WD
2011VolkswagenCCFWD
