Product Details

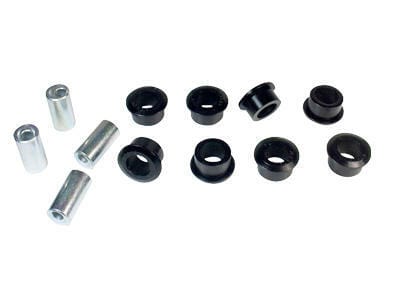

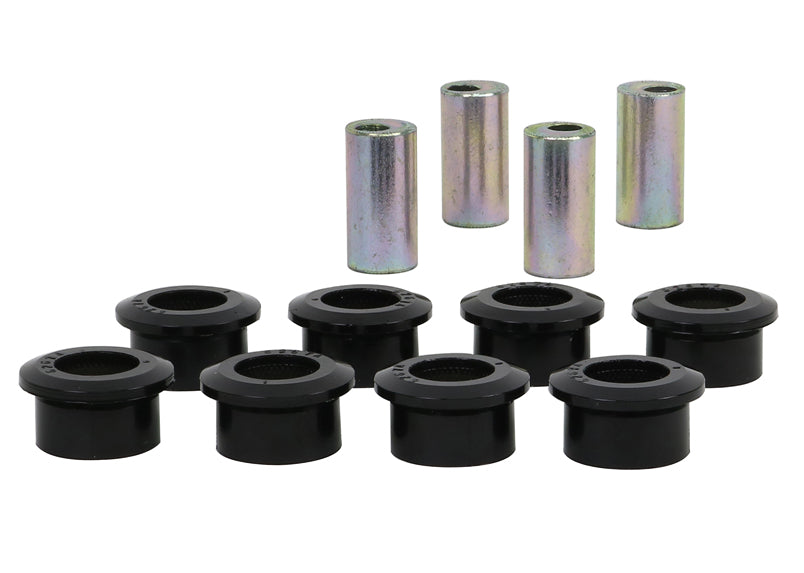

This Whiteline Rear Control Arm Lower Rear Outer Bushing fits the 2008-2009 Pontiac G8 Base, GT (Zeta). Whiteline part number: W63430. Application note: Adds +/- 1.5 degrees Camber: replaces both control arm outer and trailing arm rear mount. Placement: rear. You receive 8 bushings and 4 tubes.
Most factory control arm bushings are centered and fixed. An offset one is built so the arm sits at a slightly different angle, which changes camber, and the firmer material stops that setting drifting under load.
Whiteline rates the install as moderate and lists about 3 hours. An alignment is required after installation. Other Whiteline parts we list for the Pontiac G8: Rear Subframe Mount Bushing, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.
Features
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Finish: The metal is powder coated, which resists corrosion and wear.
- Install guide: Whiteline packs an install guide with it.
- Material: Built from polyurethane.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
| Part Number | W63430 |
| Part Name | Control Arm Bushing |
| Vehicle | 2008-2009 Pontiac G8 Base, GT |
| Chassis Code | Zeta |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 36.9 mm |
| Bushing Quantity | 8 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 8 Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Adds +/- 1.5Degree Camber - replaces both control arm outer and trailing arm rear mount |
