Product Details

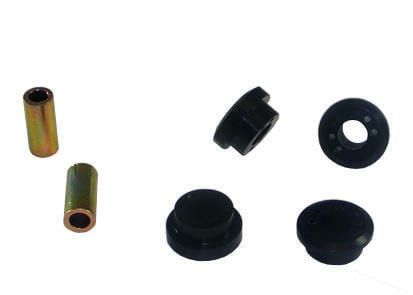

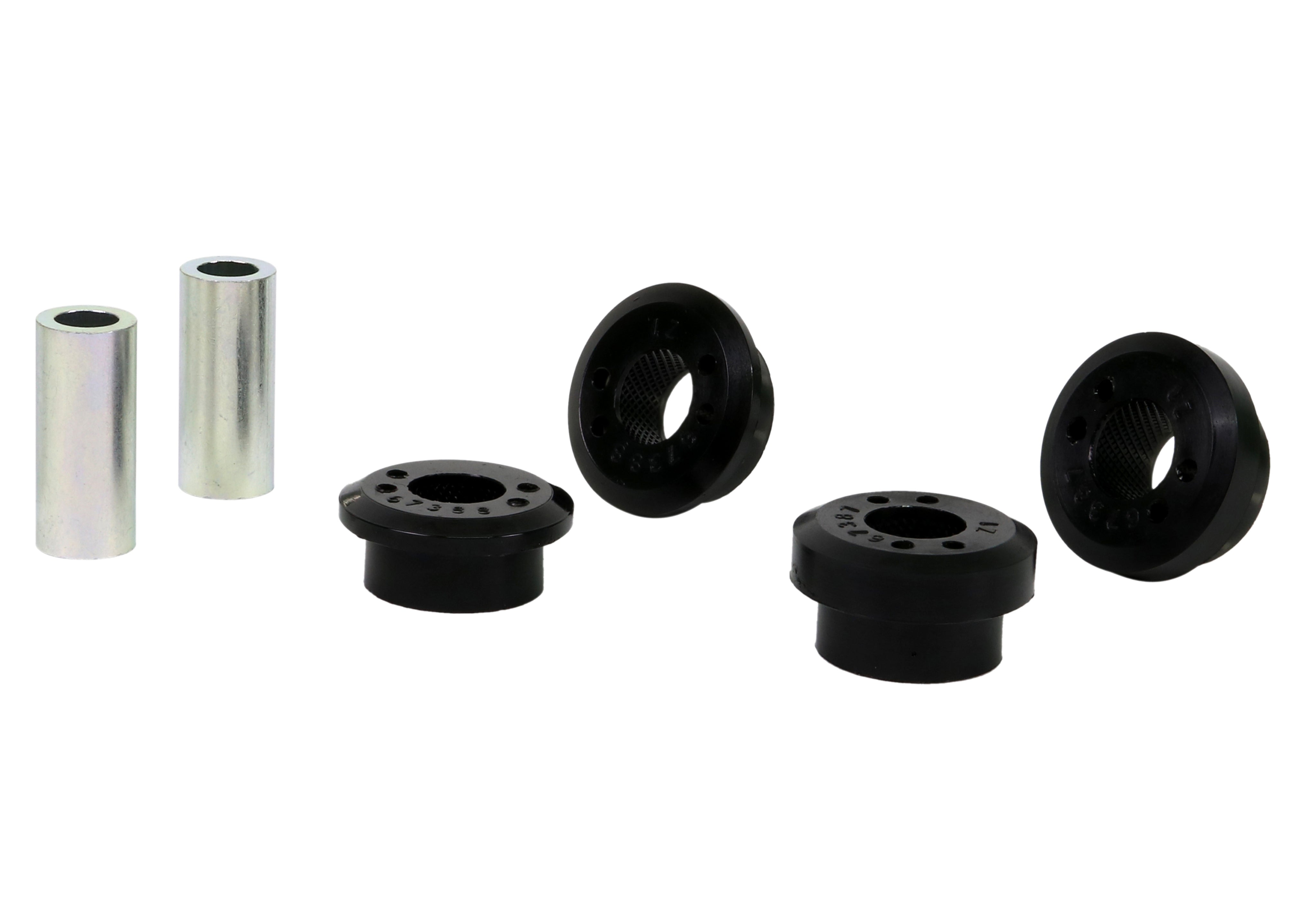

This Whiteline Rear Control Arm Lower Rear Outer Bushing fits the 2005-2006 Subaru Outback R, XT (BP). Included: 4 bushings and 2 tubes. Whiteline part number: W63394. It goes on the rear of the vehicle.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.
Installation is rated moderate, with about 3 hours of work listed. An alignment is required after installation. Other Whiteline parts we list for the Outback: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.
Features
- Finish: The metal is powder coated, which resists corrosion and wear.
- Install guide: An install guide comes in the box.
- Material: Made from polyurethane.
- Corrosion protection: A protective plating covers the metal components to guard against corrosion.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
Specifications
| Part Number | W63394 |
| Part Name | Control Arm Bushing |
| Vehicle | 2005-2006 Subaru Outback R, XT |
| Chassis Code | BP |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 33.8 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
