Product Details

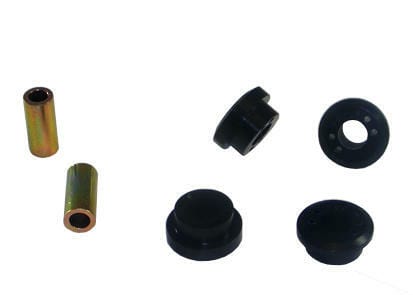

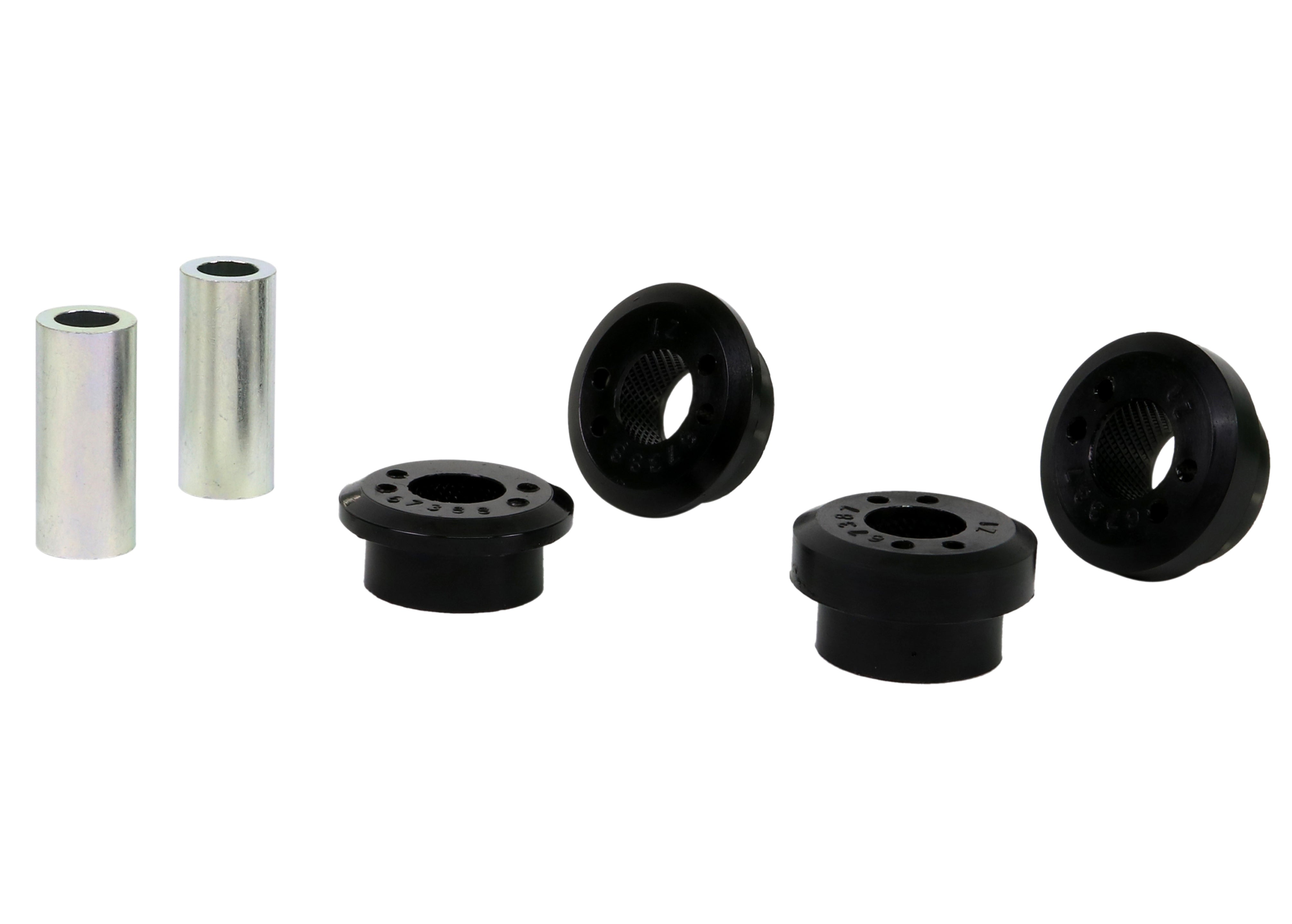

This Whiteline Rear Control Arm Lower Rear Outer Bushing fits the 2001-2004 Subaru Outback L.L. Bean (BE/BH/BP). Trim: L.L. Bean. Order it as part number W63394. This part is for the rear of the vehicle. Included: 4 bushings and 2 tubes.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 3 hours of work listed. An alignment is required after installation. We also list Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front Steering Rack And Pinion Mount Bushing for the Outback.

Features

  • Finish: The metal parts are powder coated for durability.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Install guide: An install guide comes in the box.
  • Material: Built from polyurethane.
Specifications
Part Number W63394
Part Name Control Arm Bushing
Vehicle 2001-2004 Subaru Outback L.L. Bean
Drivetrain AWD
Chassis Code BE/BH/BP
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 33.8 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2001SubaruOutbackAWD
2002SubaruOutbackAWD
2003SubaruOutbackAWD
2004SubaruOutbackAWD
