Product Details

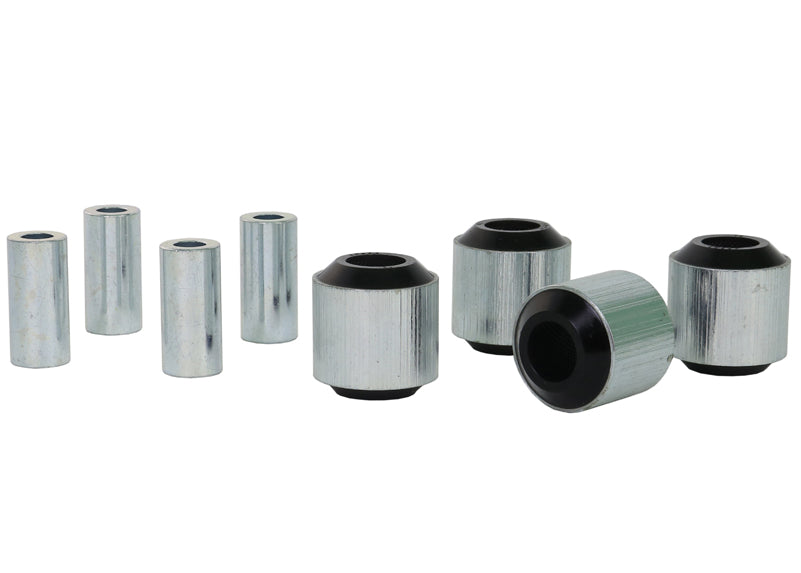

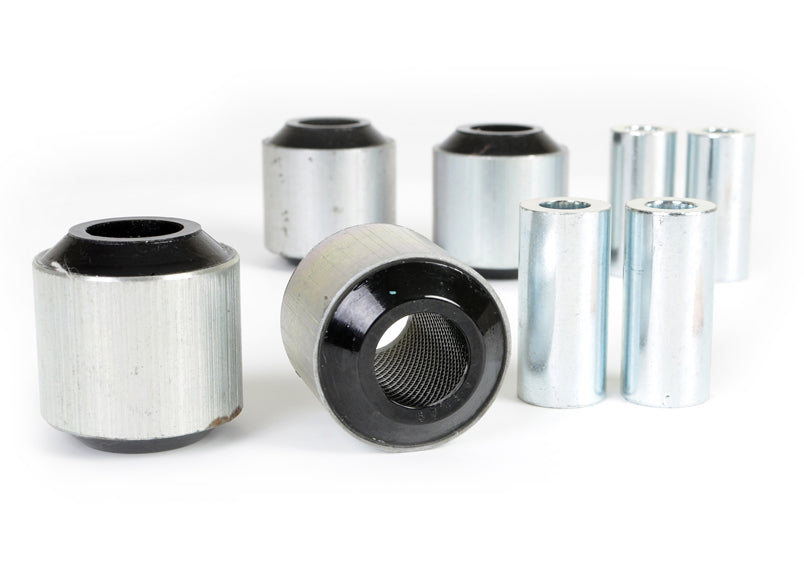

This Whiteline Rear Control Arm Lower Rear Inner and Outer Bushing fits the 2013 BMW 135is 1 Series. The kit contains 4 shell bushings and 4 tubes. Whiteline part number: W63400. Application note: Fits front and rear positions of OEM arm 33-32-6-763-477. It is listed for the E82 chassis. This part is for the rear of the vehicle.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Expect a moderate job of about 3 hours. An alignment is required after installation. Working on the same car? We also list Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Essential Vehicle Kit for the 135is 1 Series.
Features
- Install guide: Whiteline packs an install guide with it.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Material: The part is made of polyurethane.
- Bonded design: The bushing is bonded for strength where loads are highest.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
| Part Number | W63400 |
| Part Name | Control Arm Bushing |
| Vehicle | 2013 BMW 135is 1 Series |
| Chassis Code | E82 |
| Drivetrain | RWD |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 45.4 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Fits front and rear positions of OEM arm 33-32-6-763-477 |
Fitment for 135is control arm bushings
Fits the 2013 BMW 135is 1 Series. Each model year is listed below.
