Product Details

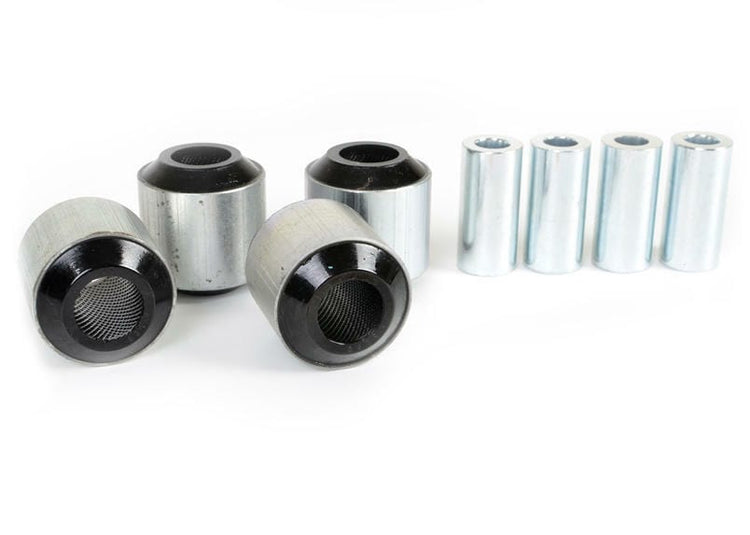

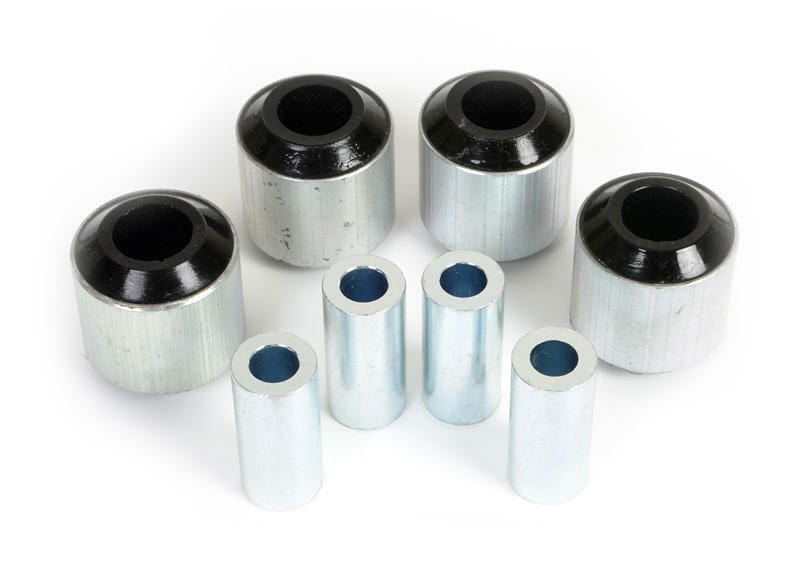

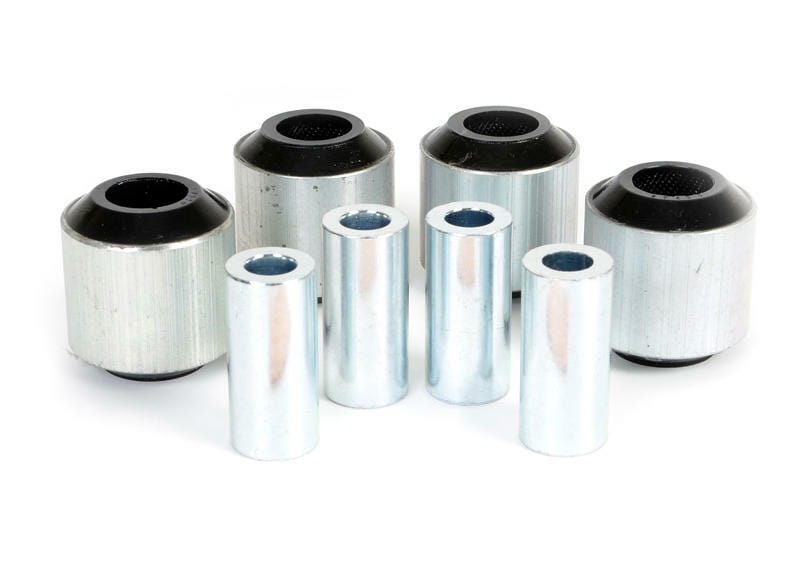

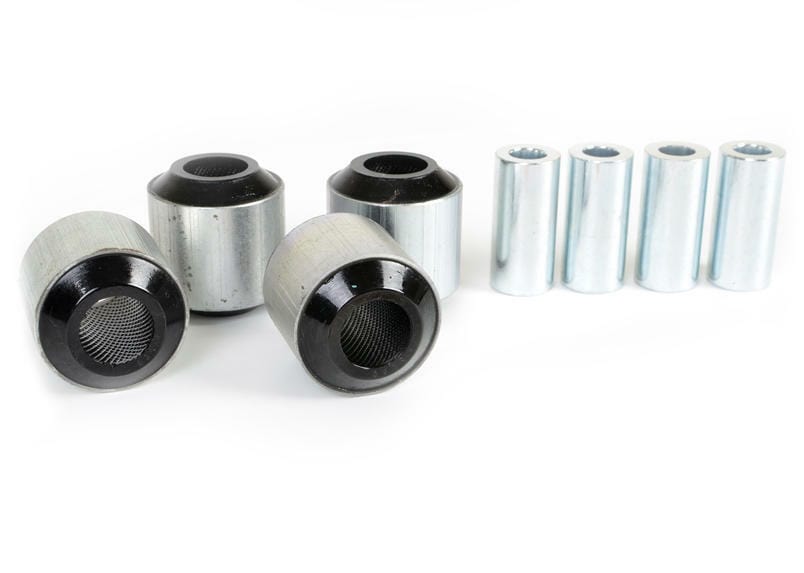

This Whiteline Rear Control Arm Lower Rear Inner and Outer Bushing fits the 2007-2008 BMW 328xi 3 Series (E90/E91/E92/E93). The kit contains 4 shell bushings and 4 tubes. Whiteline's note for this fit: Fits front and rear positions of OEM arm 33-32-6-763-477. It goes on the rear of the vehicle. The part number is W63400.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 3 hours. Plan on a wheel alignment afterward. We also list Adjustable Front Sway Bar Link, Rear Subframe Mount Bushing, and Rear Differential Mount Bushing for the 328xi 3 Series.

Features

  • Finish: A powder coated finish resists corrosion and wear.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Material: Built from polyurethane.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Bonded design: A bonded design adds strength for high load applications.
  • Install guide: Step-by-step installation instructions come with it.
Specifications
Part Number W63400
Part Name Control Arm Bushing
Vehicle 2007-2008 BMW 328xi 3 Series
Chassis Code E90/E91/E92/E93
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 45.4 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Fits front and rear positions of OEM arm 33-32-6-763-477

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007BMW328xiAWDFits front and rear positions of OEM arm 33-32-6-763-477
2008BMW328xiAWDFits front and rear positions of OEM arm 33-32-6-763-477
