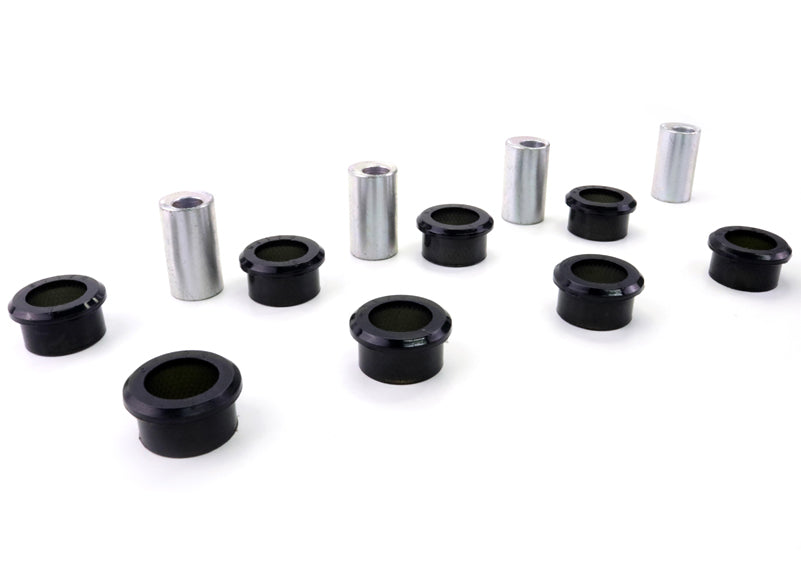

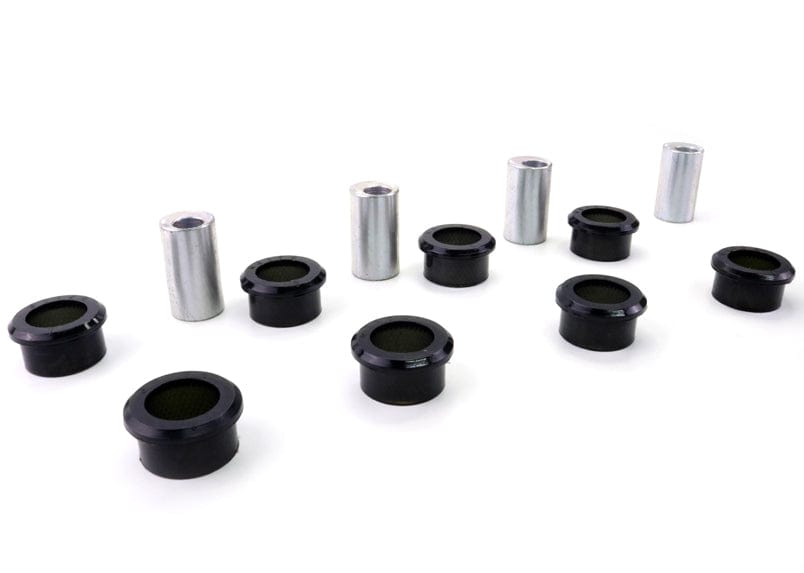

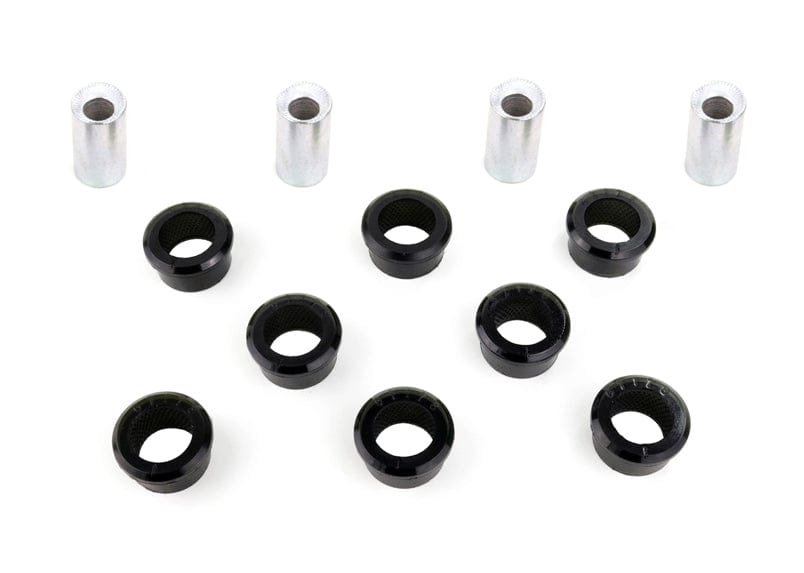

This Whiteline Rear Lower Toe Control Arm Bushing Kit fits the 1991-1998 Nissan 240SX Base, LE (S13/S14). Whiteline part number: KCA347. Position: rear. You receive 8 bushings and 4 tubes. Application note: Adds +/- 0.75 degrees Camber.

Camber is the sideways lean of the wheel when viewed from the front. An offset control arm bushing places the pivot slightly off-center, which shifts the wheel's camber by a small, fixed amount without replacing the arm. On a lowered car that is often enough to bring the tires back toward an even footprint.

Whiteline rates the install as moderate and lists about 3 hours. An alignment is required after installation. Other Whiteline parts we list for the 240SX: 12mm Adjustable Front Camber Bolts, Rear Sway Bar Link, and Front Sway Bar Washer Kit.

Features

  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Install guide: An install guide comes in the box.
  • Material: The part is made of polyurethane.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
Specifications
Part Number KCA347
Part Name Control Arm Bushing
Vehicle 1991-1998 Nissan 240SX Base, LE
Chassis Code S13/S14
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 29.5 mm
Bushing Quantity 8 Bushings
Grade Type Performance
Inside Diameter 12.6 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 8 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 29.5 mm
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Adds +/- 0.75 Degrees Camber

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1991Nissan240SXRWDAdds +/- 0.75 Degrees Camber
1992Nissan240SXRWDAdds +/- 0.75 Degrees Camber
1993Nissan240SXRWDAdds +/- 0.75 Degrees Camber
1994Nissan240SXRWDAdds +/- 0.75 Degrees Camber
1995Nissan240SXRWDAdds +/- 0.75 Degrees Camber
1996Nissan240SXRWDAdds +/- 0.75 Degrees Camber
1997Nissan240SXRWDAdds +/- 0.75 Degrees Camber
1998Nissan240SXRWDAdds +/- 0.75 Degrees Camber
