Product Details

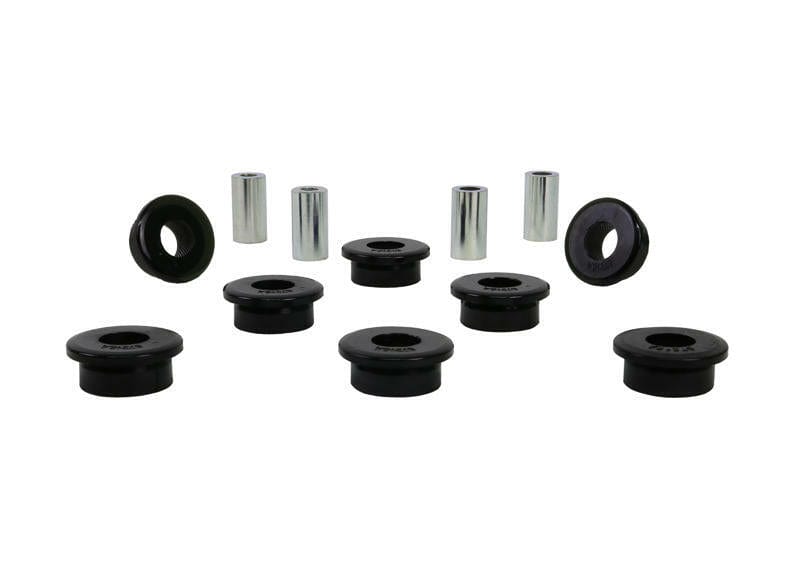

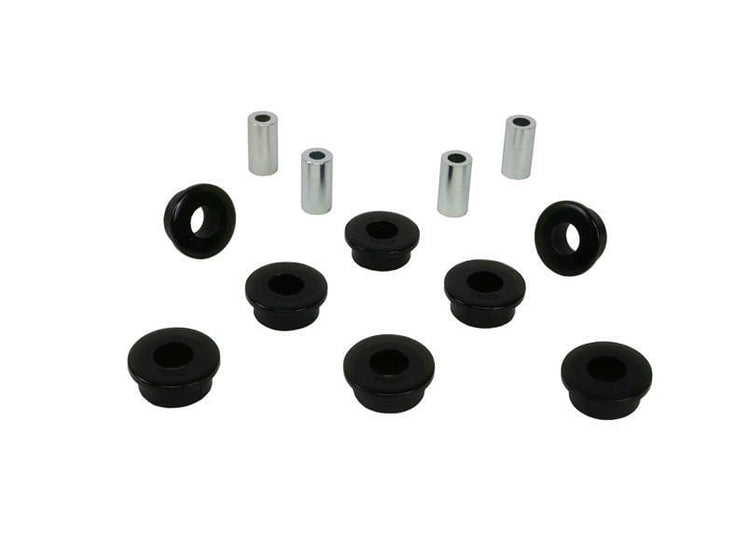

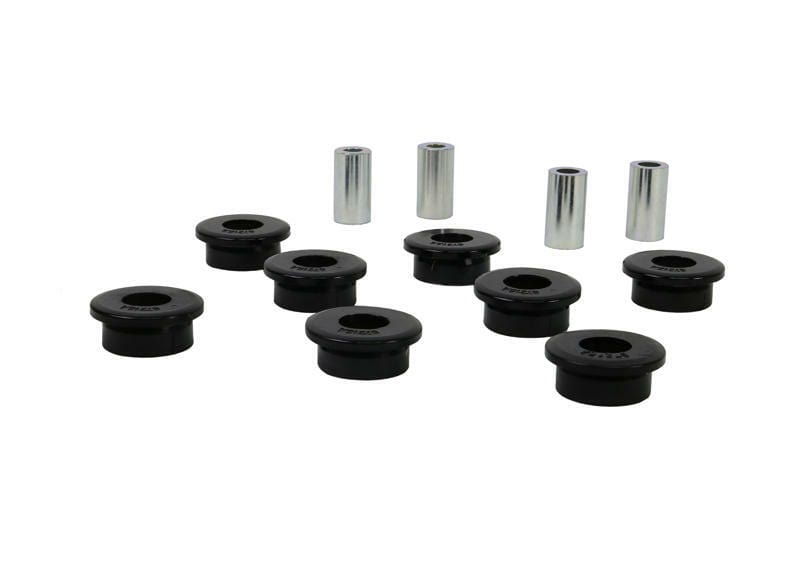

This Whiteline Rear Lower Outer Control Arm Bushing fits the 2004-2011 Honda Element LX (YK). It goes on the rear of the vehicle. Order it as part number W63382. In the box: 8 bushings and 4 tubes. Application note: Suits models with cast arms.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as moderate and lists about 3 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Element: 16mm Adjustable Front Camber Bolts.

Features

  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Material: Made from polyurethane.
  • Finish: The metal is powder coated, which resists corrosion and wear.
Specifications
Part Number W63382
Part Name Control Arm Bushing
Vehicle 2004-2011 Honda Element LX
Chassis Code YK
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 43.5 mm
Bushing 2 Inner Diameter 12.2 mm
Bushing Quantity 8 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 8 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Includes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2004HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2005HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2006HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2007HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2008HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2009HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2010HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2011HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
