Product Details

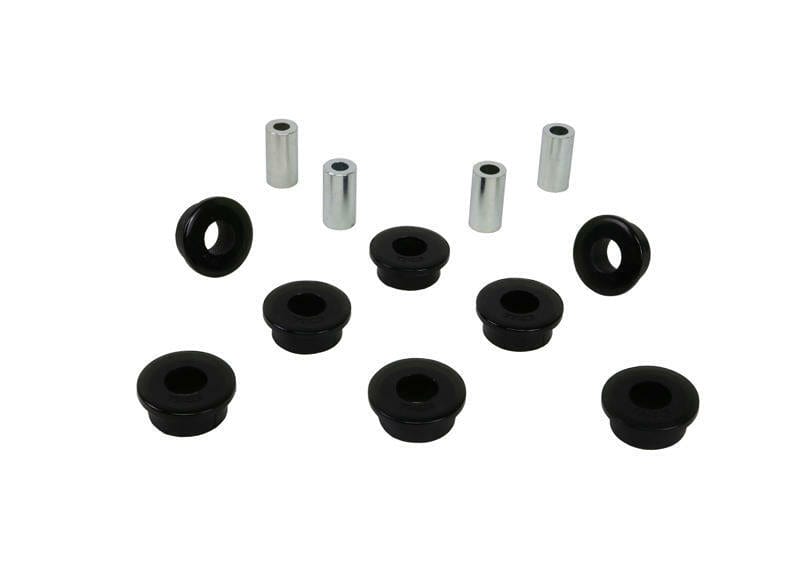

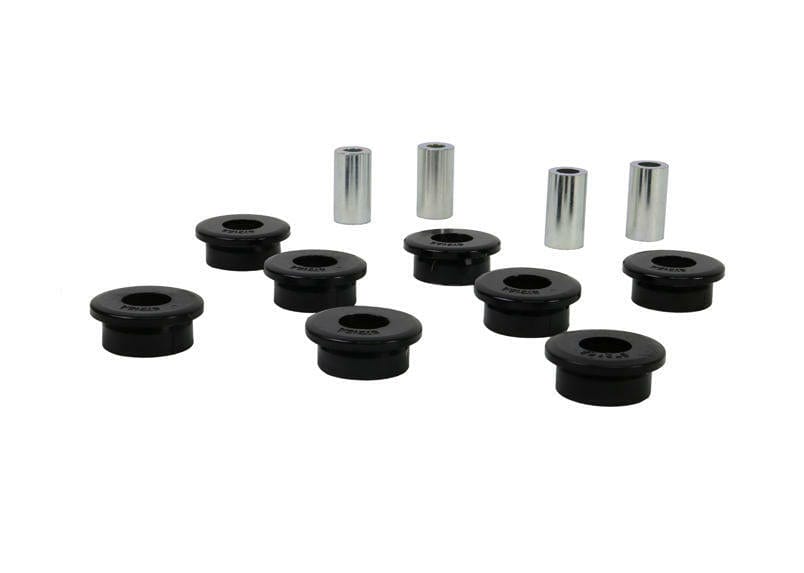

This Whiteline Rear Lower Outer Control Arm Bushing fits the 2003-2011 Honda Element EX (YK). Application note: Suits models with cast arms. Order it as part number W63382. The kit contains 8 bushings and 4 tubes. Position: rear.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground. To go with it on the Element, see 16mm Adjustable Front Camber Bolts.

Features

  • Finish: The metal parts are powder coated for durability.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Material: Built from polyurethane.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number W63382
Part Name Control Arm Bushing
Vehicle 2003-2011 Honda Element EX
Chassis Code YK
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 43.5 mm
Bushing 2 Inner Diameter 12.2 mm
Bushing Quantity 8 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 8 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Includes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2003HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2004HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2005HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2006HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2007HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2008HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2009HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2010HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
2011HondaElementIncludes 2 x 12mm and 2 x 14mm bolts. Suits models with cast arms.
