Product Details

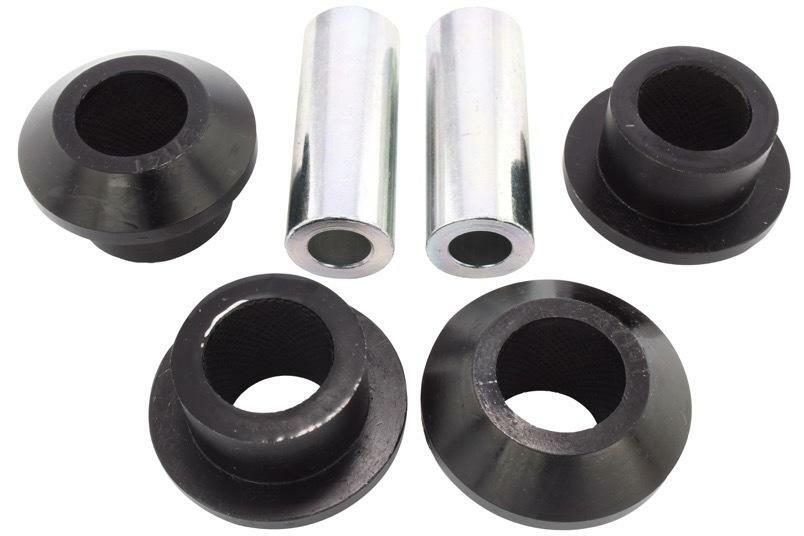

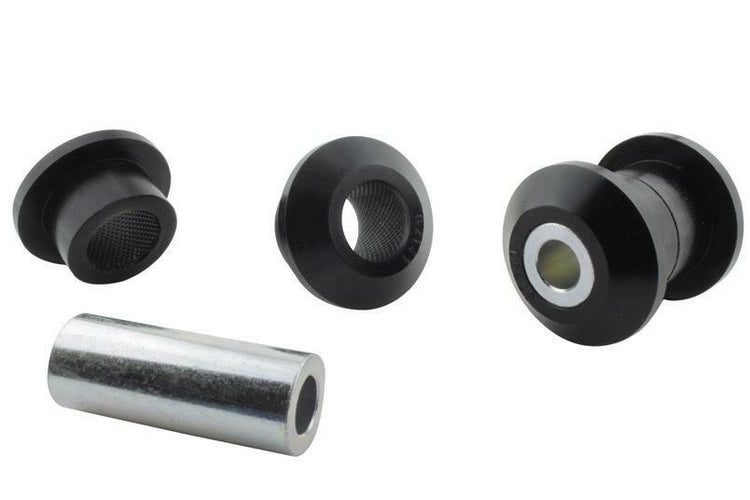

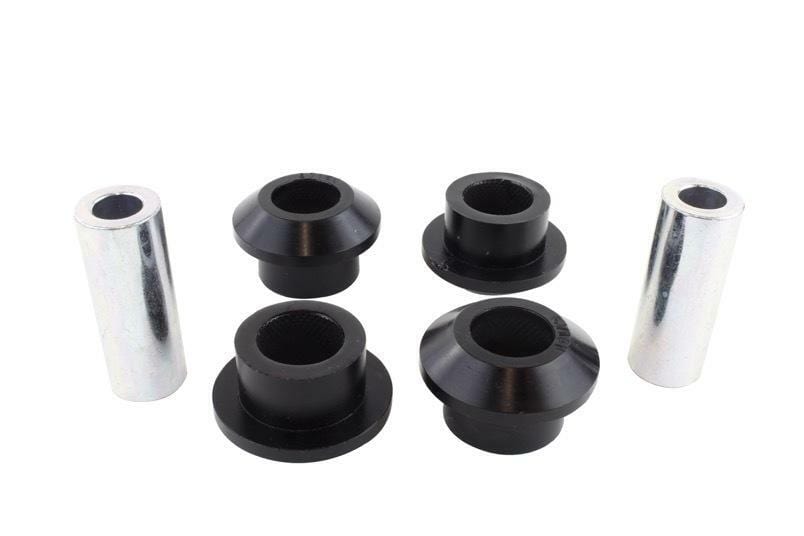

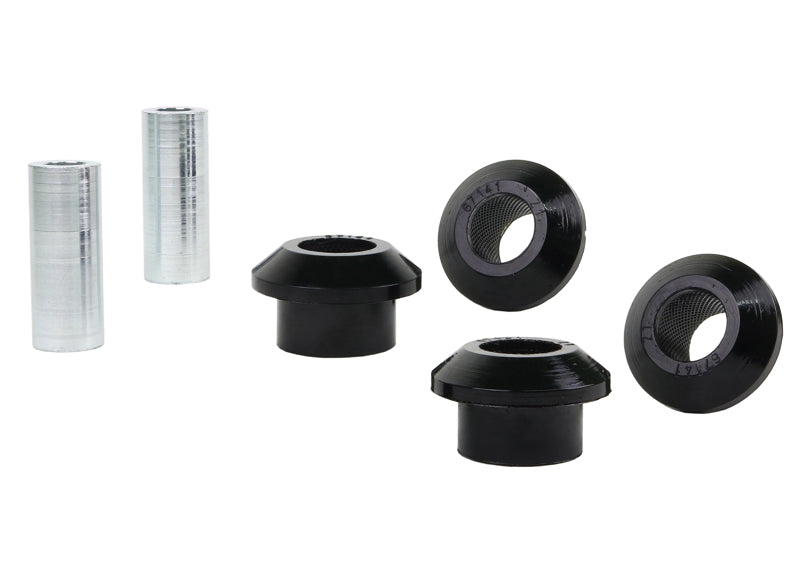

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2010-2011 Volvo V50 T5 R-Design (P1). You receive 4 bushings and 2 tubes. Part number W53286. It goes on the front of the vehicle.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as difficult and lists about 2.5 hours. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and Adjustable Front Sway Bar Link for the Volvo V50.
Features
- Corrosion protection: Plated finish keeps rust off the hardware.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Finish: Powder coat finish guards the metal against chips and corrosion.
- Material: Built from polyurethane.
Specifications
| Part Number | W53286 |
| Part Name | Control Arm Bushing |
| Vehicle | 2010-2011 Volvo V50 T5 R-Design |
| Drivetrain | FWD/AWD |
| Chassis Code | P1 |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 38 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2.5 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
