Product Details

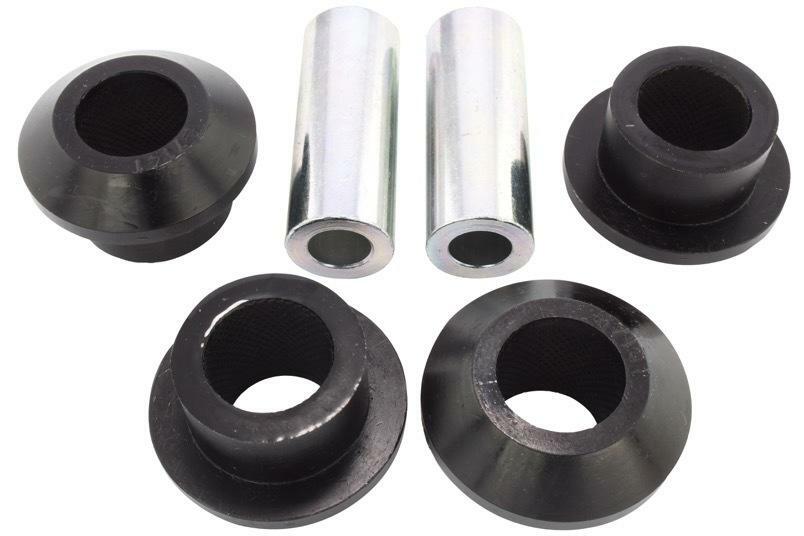

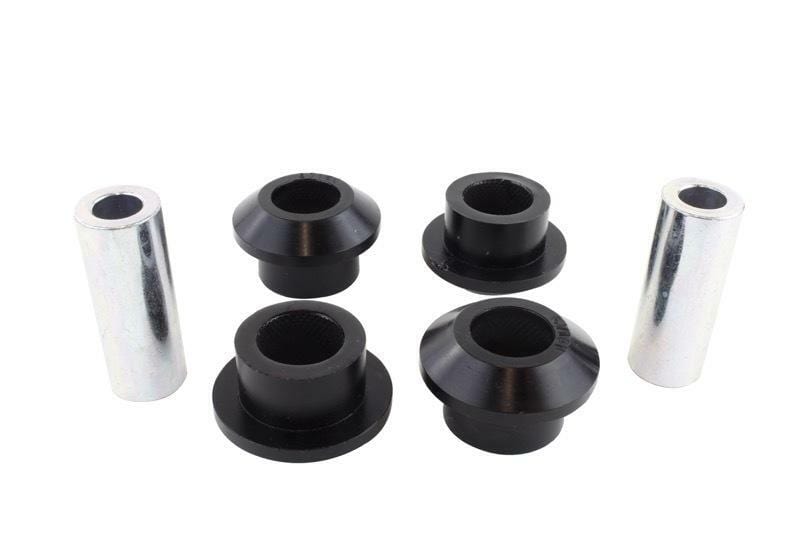

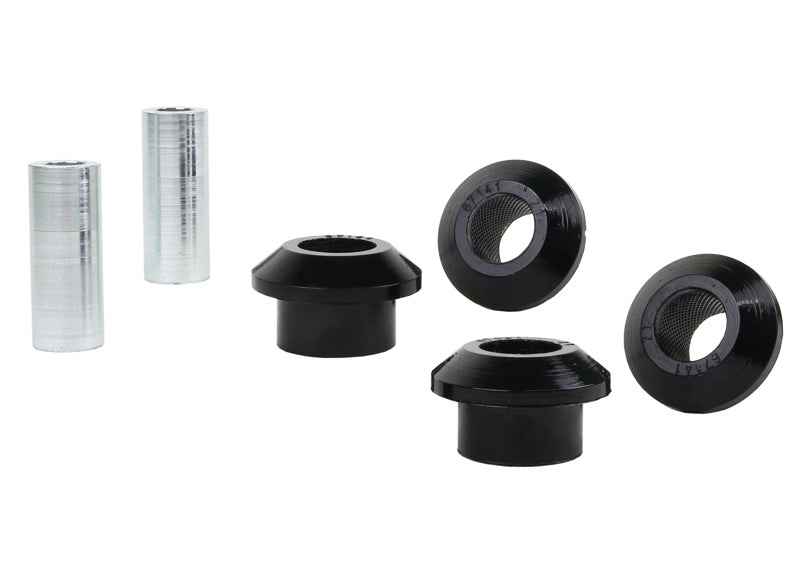

This Whiteline Front Control Arm Lower Inner Front Bushing fits the 2008-2013 Volvo C30 T5 (P1). Part number W53286. In the box: 4 bushings and 2 tubes. It goes on the front of the vehicle.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated difficult, with about 2.5 hours of work listed. An alignment is required after installation. We also list Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and Adjustable Front Sway Bar Link for the Volvo C30.

Features

  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Material: Polyurethane construction.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Finish: The metal parts are powder coated for durability.
Specifications
Part Number W53286
Part Name Control Arm Bushing
Vehicle 2008-2013 Volvo C30 T5
Chassis Code P1
Drivetrain FWD
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 38 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2.5
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008VolvoC30FWD
2009VolvoC30FWD
2010VolvoC30FWD
2011VolvoC30FWD
2012VolvoC30FWD
2013VolvoC30FWD
