Product Details

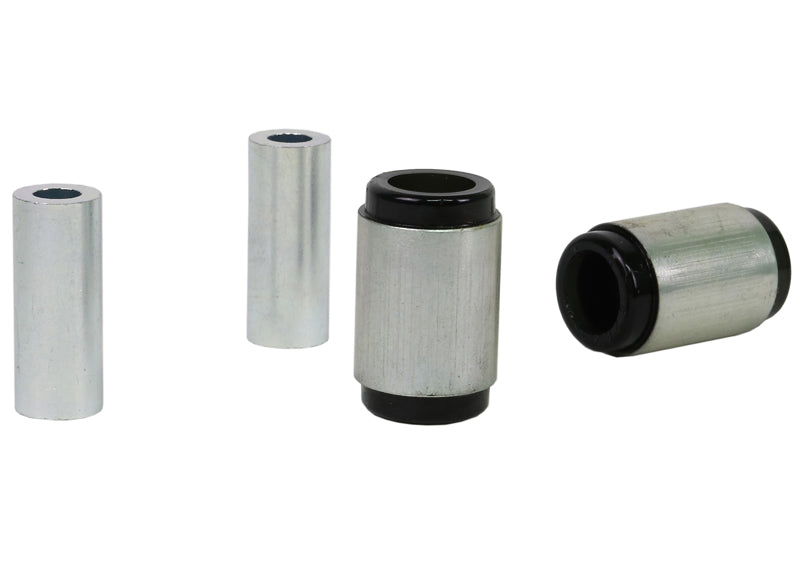

This Whiteline Rear Control Arm Lower Inner Bushing fits the 2001-2006 BMW 330xi 3 Series. The kit contains 2 shell bushings and 2 tubes. Part number W62625. It goes on the rear of the vehicle.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as difficult and lists about 4 hours. Get the car aligned once it is back on the ground. Working on the same car? We also list Adjustable Front Sway Bar Link, Front Strut Tower Brace, and Rear Sway Bar Link for the 330xi 3 Series.
Features
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Material: Built from polyurethane.
- Bonded design: The bushing is bonded for strength where loads are highest.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
Specifications
| Part Number | W62625 |
| Part Name | Control Arm Bushing |
| Vehicle | 2001-2006 BMW 330xi 3 Series |
| Chassis Code | E46 |
| Drivetrain | AWD |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 35.3 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 4 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
Fitment for 330xi control arm bushings
Fits the 2001-2006 BMW 330xi 3 Series. Each model year is listed below.
