Product Details

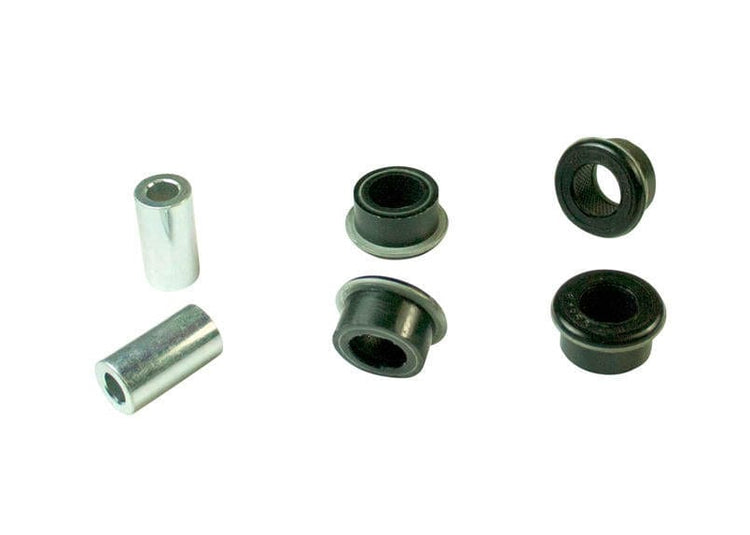

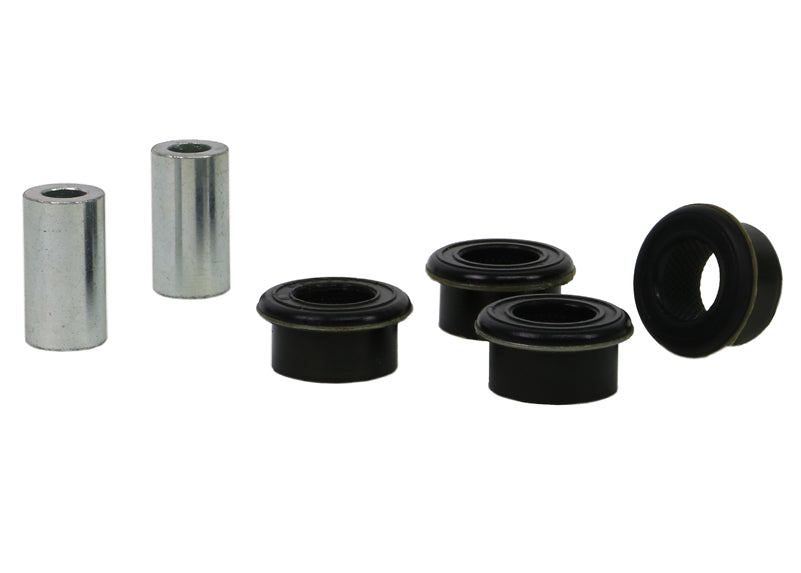

This Whiteline Rear Control Arm Lower Inner Bushing fits the 2016 Subaru BRZ Series.HyperBlue (ZC6). Part number W63428. In the box: 4 bushings and 2 tubes. It goes on the rear of the vehicle. Application note: Standard Replacement. Patent Pending: US-2014-009157-A1.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the Subaru BRZ, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Material: The part is made of polyurethane.
  • Finish: Powder coating covers the metal for protection against chips and rust.
Specifications
Part Number W63428
Part Name Control Arm Bushing
Vehicle 2016 Subaru BRZ Series.HyperBlue
Chassis Code ZC6
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 33.8 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Standard Replacement. Patent Pending - US-2014-009157-A1

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2016SubaruBRZRWDStandard Replacement. Patent Pending - US-2014-009157-A1
