Product Details

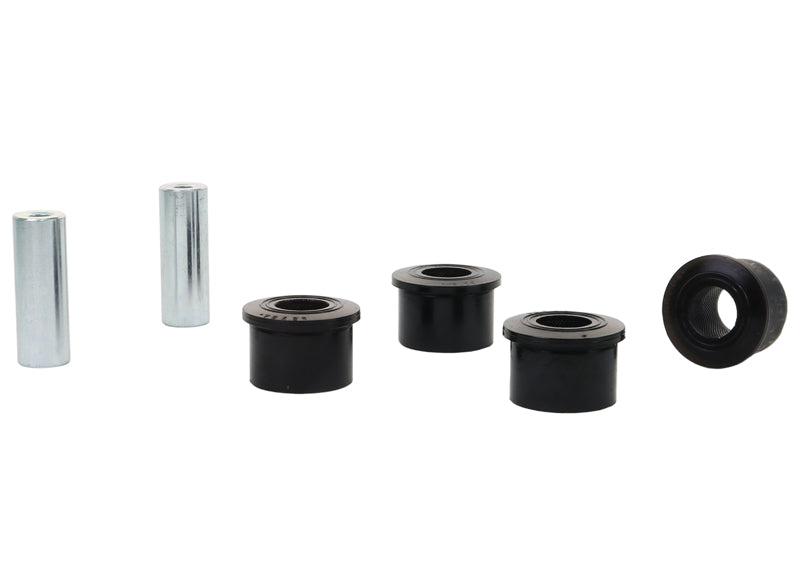

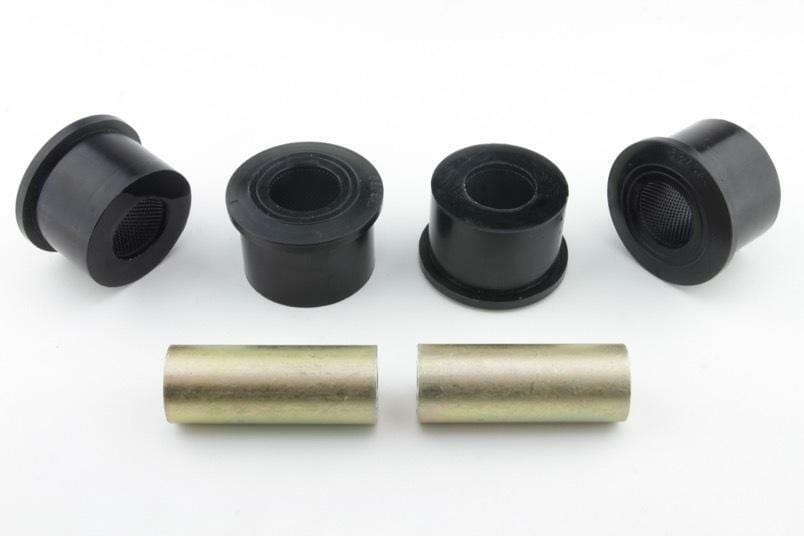

This Whiteline Rear Control Arm Lower Inner Bushing fits the 2006-2007 Dodge Charger Base (LX). Order it as part number W63339. In the box: 4 bushings and 2 tubes. Position: rear. Whiteline's note for this fit: Suits inner mounting point only as outer is a spherical/rose joint.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as moderate and lists about 3 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Charger: Rear Subframe Mount Bushing, Front Sway Bar Link Kit, and Front and Rear Sway Bar Kit.

Features

  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Material: The part is made of polyurethane.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
Part Number W63339
Part Name Control Arm Bushing
Vehicle 2006-2007 Dodge Charger Base
Drivetrain RWD/AWD
Chassis Code LX
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 51.5 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Suits inner mounting point only as outer is a spherical/rose joint

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006DodgeChargerRWDSuits inner mounting point only as outer is a spherical/rose joint
2006DodgeChargerAWDSuits inner mounting point only as outer is a spherical/rose joint
2007DodgeChargerRWDSuits inner mounting point only as outer is a spherical/rose joint
2007DodgeChargerAWDSuits inner mounting point only as outer is a spherical/rose joint
