Product Details

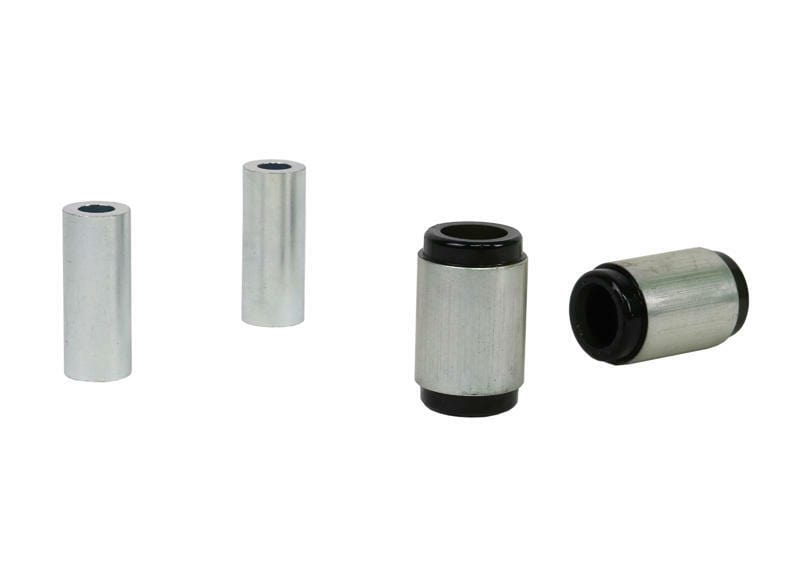

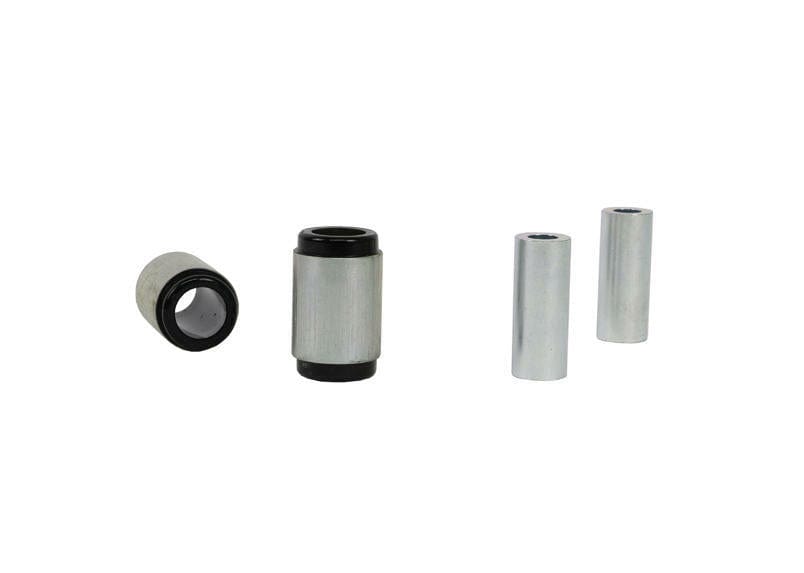

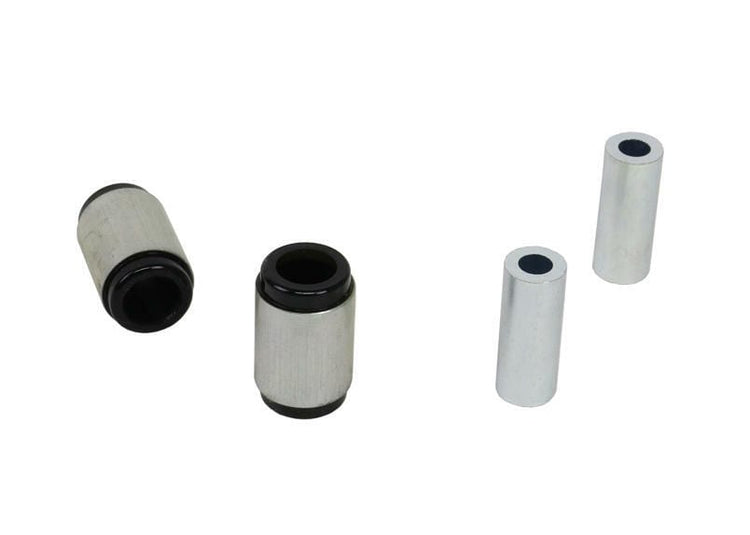

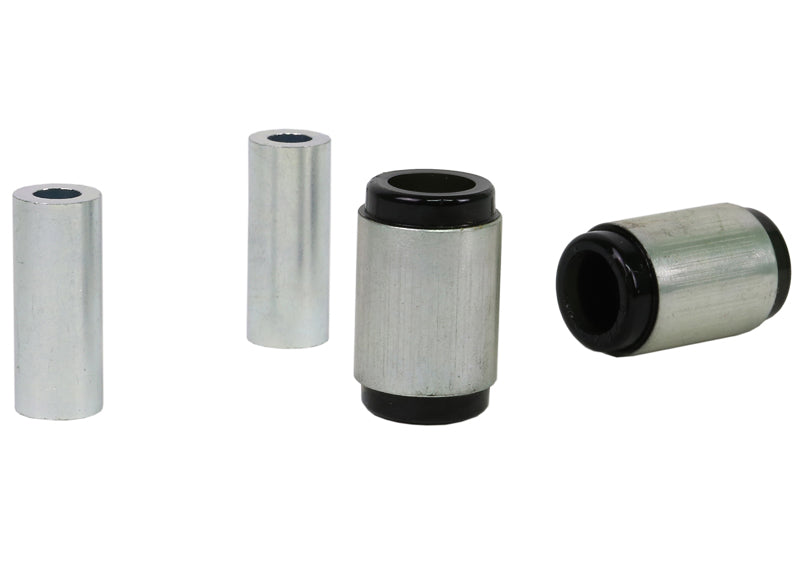

This Whiteline Rear Control Arm Lower Inner Bushing fits the 1996-2000 BMW 328i 3 Series (E36/E46). The part number is W62625. Position: rear. Included: 2 shell bushings and 2 tubes.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.
Whiteline rates the install as difficult and lists about 4 hours. Get the car aligned once it is back on the ground. To go with it on the 328i 3 Series, see Adjustable Front Sway Bar Link, Front Strut Tower Brace, and Front Control Arm Lower Inner Rear Bushing.
Features
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Bonded design: Bonding adds durability in high-load use.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Material: The part is made of polyurethane.
- Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
| Part Number | W62625 |
| Part Name | Control Arm Bushing |
| Vehicle | 1996-2000 BMW 328i 3 Series |
| Chassis Code | E36/E46 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 35.3 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 4 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
