Product Details

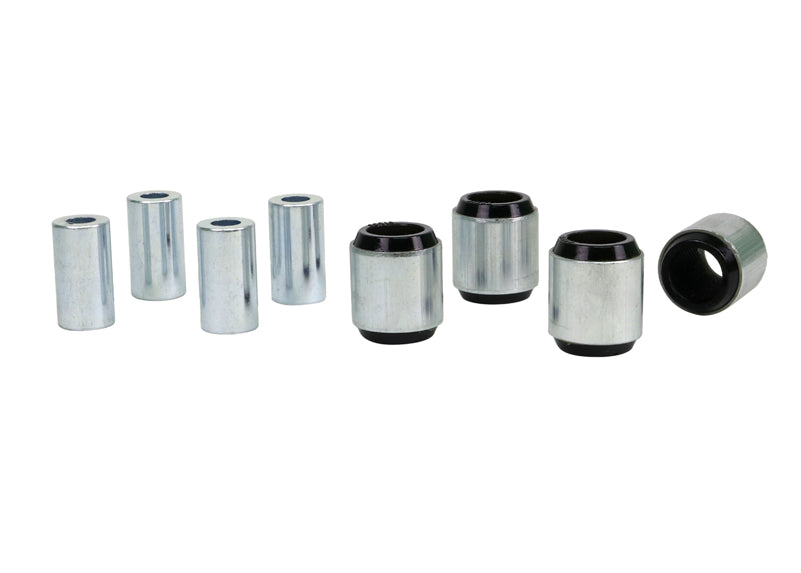

This Whiteline Rear Control Arm Lower Inner and Outer Bushing fits the 2017-2019 BMW 330i xDrive 3 Series. The kit contains 4 shell bushings and 4 tubes. Position: rear. Chassis code: F30/G20. Application note: Fits OEM Arm 33-32-6-792-533. The part number is W63594.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated moderate, with about 2 hours of work listed. Plan on a wheel alignment afterward. Working on the same car? We also list Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Rear Differential Mount Bushing for the 330i xDrive 3 Series.
Features
- Material: Made from polyurethane.
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Install guide: Step-by-step installation instructions come with it.
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Bonded design: The bushing is bonded for strength where loads are highest.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
Specifications
| Part Number | W63594 |
| Part Name | Control Arm Bushing |
| Vehicle | 2017-2019 BMW 330i xDrive 3 Series |
| Chassis Code | F30/G20 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 37 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Fits OEM Arm 33-32-6-792-533 |
