Product Details

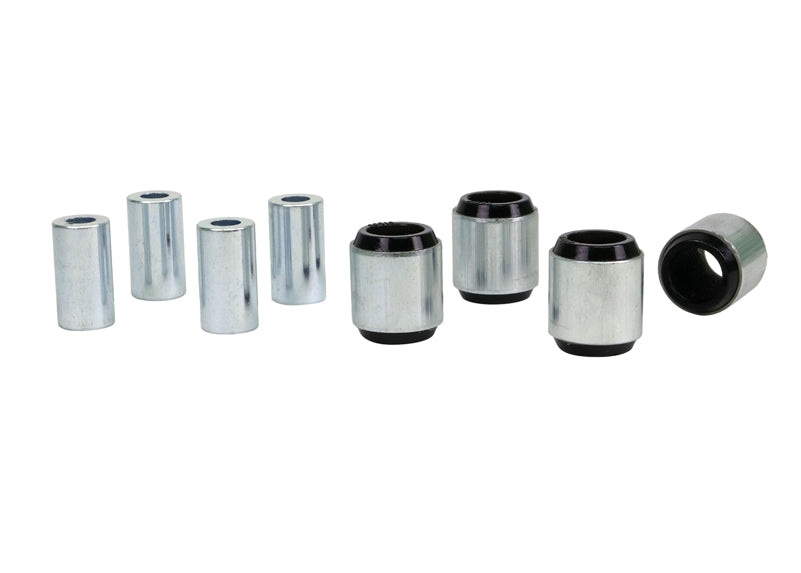

This Whiteline Rear Control Arm Lower Inner and Outer Bushing fits the 2014-2016 BMW M235i 2 Series. Part number W63594. Position: rear. Included: 4 shell bushings and 4 tubes. Application note: Fits OEM Arm 33-32-6-792-533. Chassis code: F22/F23.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated moderate, with about 2 hours of work listed. An alignment is required after installation. To go with it on the M235i 2 Series, see Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Front Sway Bar Link Assembly.
Features
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Install guide: Written install instructions are included with the part.
- Material: Made from polyurethane.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
Specifications
| Part Number | W63594 |
| Part Name | Control Arm Bushing |
| Vehicle | 2014-2016 BMW M235i 2 Series |
| Chassis Code | F22/F23 |
| Drivetrain | RWD |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 37 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Fits OEM Arm 33-32-6-792-533 |
