Product Details

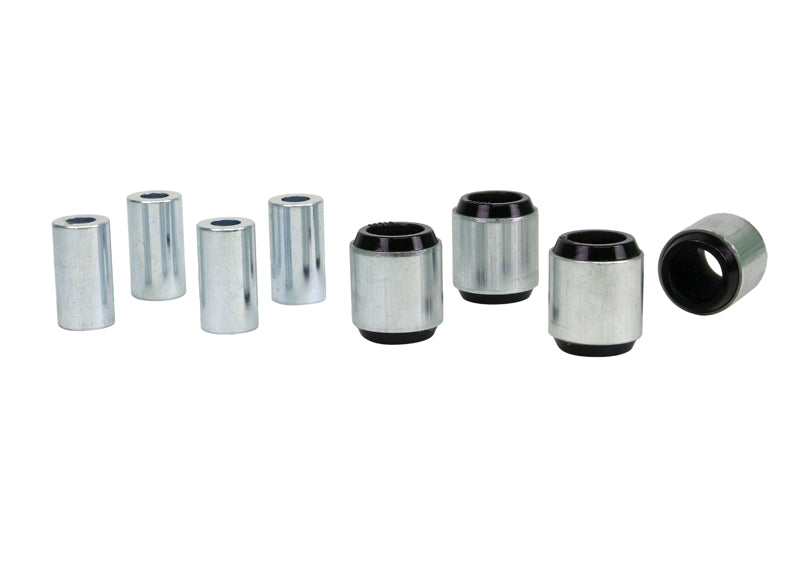

This Whiteline Rear Control Arm Lower Inner and Outer Bushing fits the 2012-2015 BMW 335i xDrive 3 Series. Position: rear. The kit contains 4 shell bushings and 4 tubes. Order it as part number W63594. Whiteline's note for this fit: Fits OEM Arm 33-32-6-792-533.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.
Expect a moderate job of about 2 hours. Get the car aligned once it is back on the ground. To go with it on the 335i xDrive 3 Series, see Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Rear Differential Mount Bushing.
Features
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Material: Built from polyurethane.
- Bonded design: The bushing is bonded for strength where loads are highest.
- Install guide: Written install instructions are included with the part.
Specifications
| Part Number | W63594 |
| Part Name | Control Arm Bushing |
| Vehicle | 2012-2015 BMW 335i xDrive 3 Series |
| Chassis Code | F30 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 37 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Fits OEM Arm 33-32-6-792-533 |
Fitment for 335i control arm bushings
Fits the 2012-2015 BMW 335i xDrive 3 Series. Each model year is listed below.
