Product Details

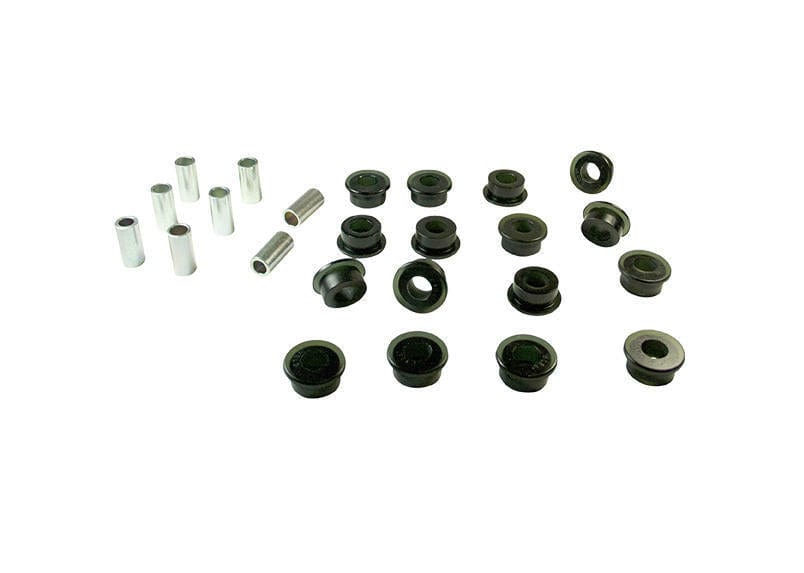

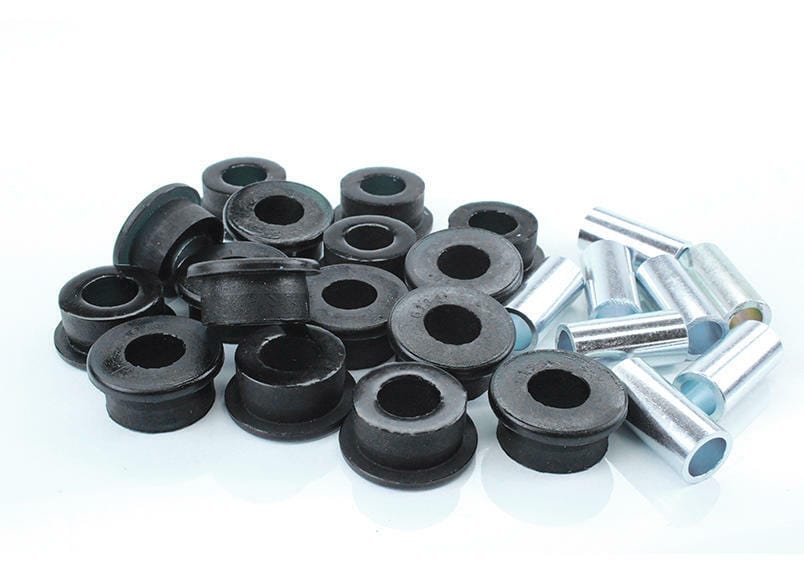

This Whiteline Rear Control Arm Lower Inner and Outer Bushing fits the 2003-2008 Subaru Forester X (SG/SH). Part number W61382A. Placement: rear. You receive 16 bushings and 8 tubes.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground. To go with it on the Forester, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Material: Built from polyurethane.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
Specifications
Part Number W61382A
Part Name Control Arm Bushing
Vehicle 2003-2008 Subaru Forester X
Chassis Code SG/SH
Bushing 1 Inner Diameter 12.5 mm
Bushing 1 Outer Diameter 34.2 mm
Bushing 2 Inner Diameter 14.3 mm
Bushing Quantity 16 Bushing
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 16 Bushings, 8 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2003SubaruForesterAWD
2004SubaruForesterAWD
2005SubaruForesterAWD
2006SubaruForesterAWD
2007SubaruForesterAWD
2008SubaruForesterAWD
