Product Details

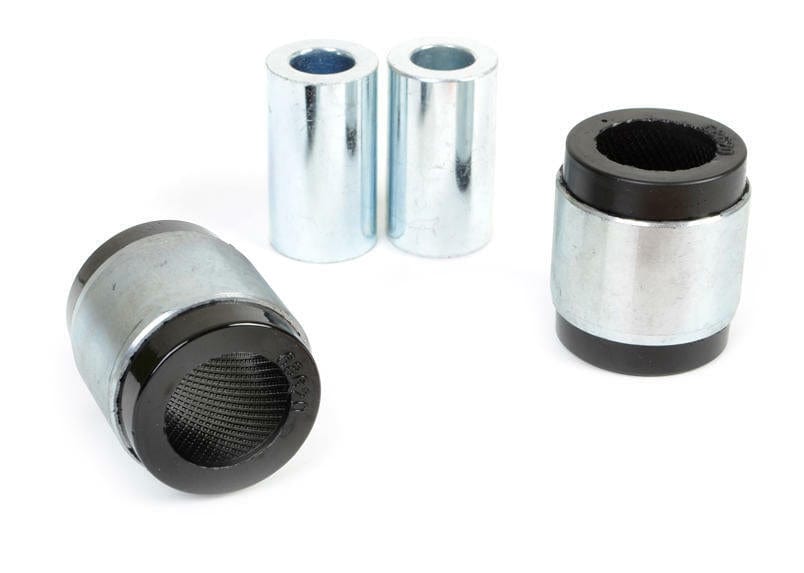

This Whiteline Rear Control Arm Lower Front Outer Bushing fits the 2015 Volkswagen Eos Final Edition (1F). The kit contains 2 shell bushings and 2 tubes. Part number W63552. Position: rear.

A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Volkswagen Eos: Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Bonded design: A bonded design adds strength for high load applications.
  • Material: Polyurethane construction.
Specifications
Part Number W63552
Part Name Control Arm Bushing
Vehicle 2015 Volkswagen Eos Final Edition
Chassis Code 1F
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 40.4 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015VolkswagenEosFWD
