Product Details

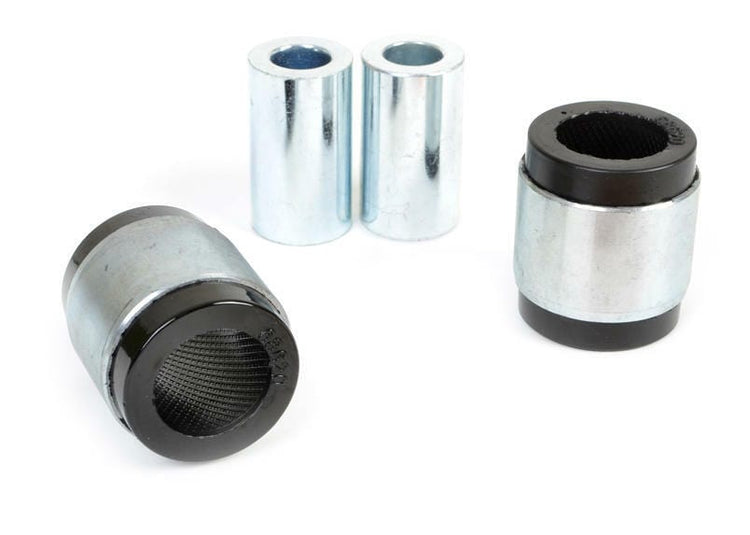

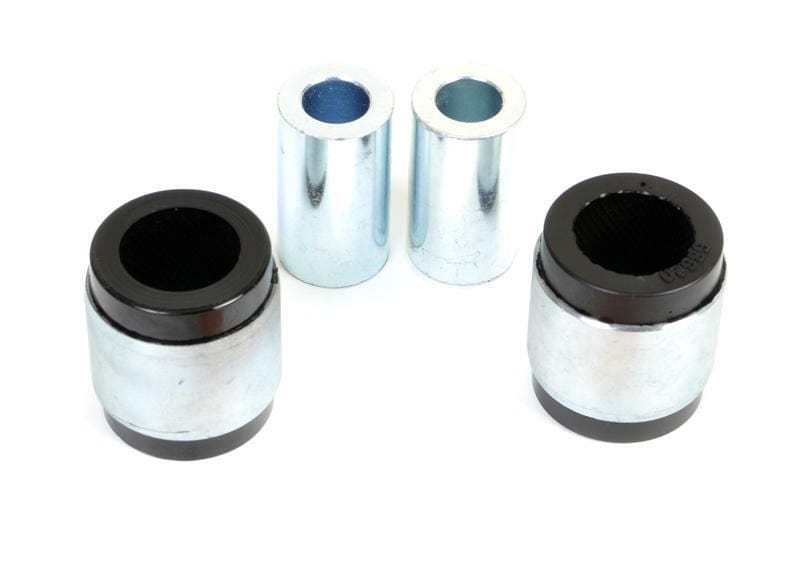

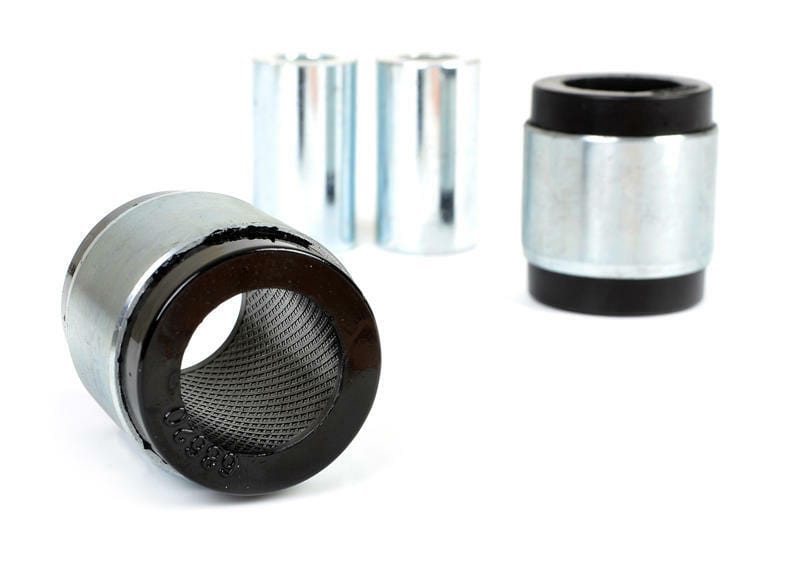

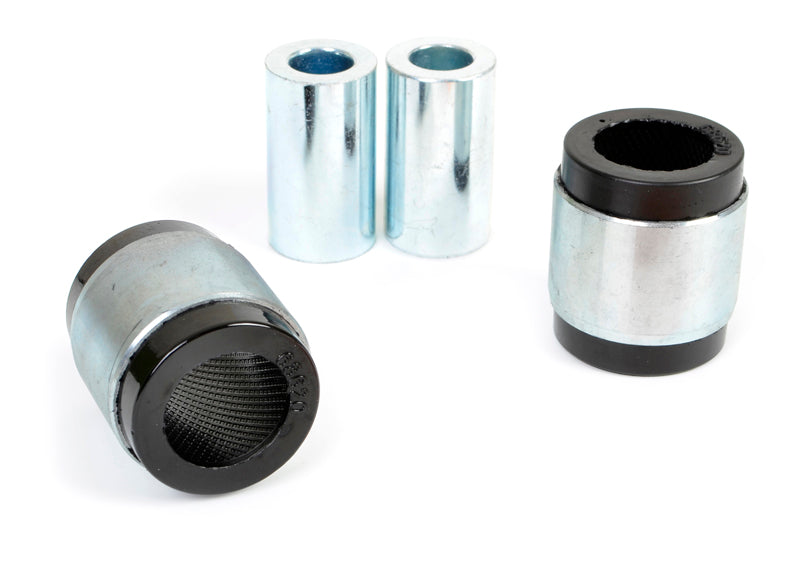

This Whiteline Rear Control Arm Lower Front Outer Bushing fits the 2009-2015 Volkswagen Tiguan S, SE, SEL (5N). It goes on the rear of the vehicle. Order it as part number W63552. In the box: 2 shell bushings and 2 tubes.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 3 hours of work listed. Plan on a wheel alignment afterward. To go with it on the Tiguan, see Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Bonded design: A bonded design adds strength for high load applications.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Material: Built from polyurethane.
Specifications
Part Number W63552
Part Name Control Arm Bushing
Vehicle 2009-2015 Volkswagen Tiguan S, SE, SEL
Chassis Code 5N
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 40.4 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009VolkswagenTiguanFWD
2010VolkswagenTiguanFWD
2011VolkswagenTiguanFWD
2012VolkswagenTiguanFWD
2013VolkswagenTiguanFWD
2014VolkswagenTiguanFWD
2015VolkswagenTiguanFWD
