Product Details

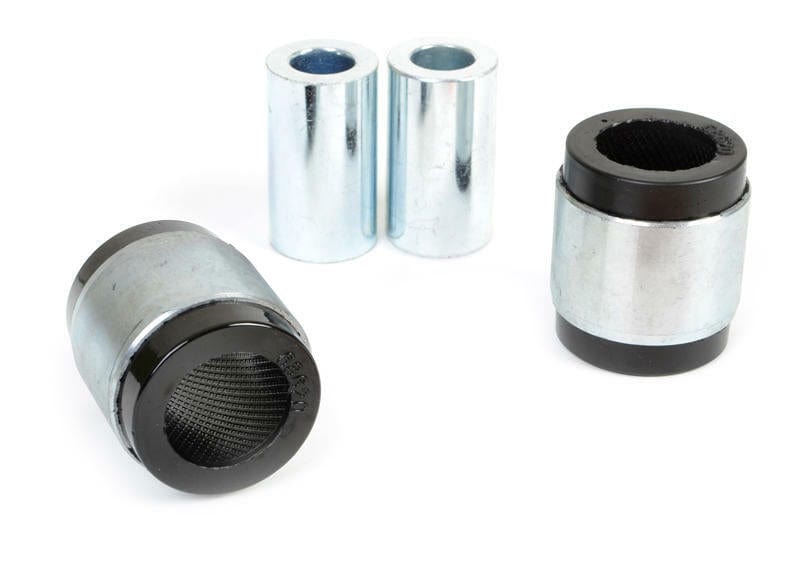

This Whiteline Rear Control Arm Lower Front Outer Bushing fits the 2006-2013 Audi A3 Base (8P). Part number W63552. It goes on the rear of the vehicle. You receive 2 shell bushings and 2 tubes.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground. To go with it on the Audi A3, see Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Material: Polyurethane construction.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
Part Number W63552
Part Name Control Arm Bushing
Vehicle 2006-2013 Audi A3 Base
Chassis Code 8P
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 40.4 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006AudiA34WD
2006AudiA3FWD
2007AudiA34WD
2007AudiA3FWD
2008AudiA34WD
2008AudiA3FWD
2009AudiA34WD
2009AudiA3FWD
2010AudiA34WD
2010AudiA3FWD
2011AudiA34WD
2011AudiA3FWD
2012AudiA34WD
2012AudiA3FWD
2013AudiA34WD
2013AudiA3FWD
